Pro Comp 41 Series Phaser, 17x9 Wheel with 5 on 5 Bolt Pattern – Machine Black with Stainless Steel Bolts – 3541-7973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 41 Series Phaser 17×9, part number PXA3541-7973
  • 5 on 5 bolt pattern, center bore 83
  • Machined black split spoke wheel
  • Offset -6, backspacing 4.75

Description

Overview

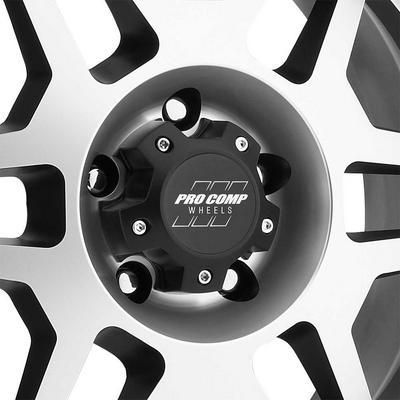

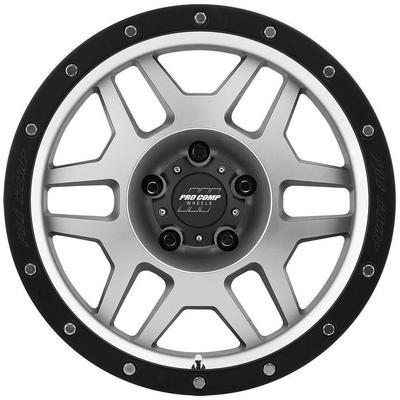

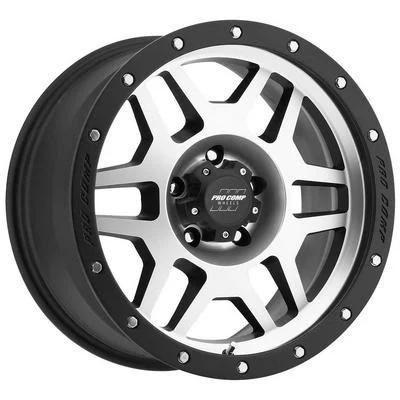

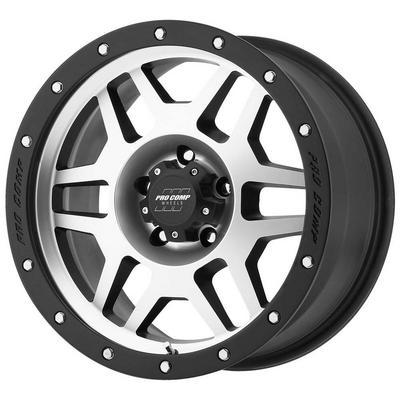

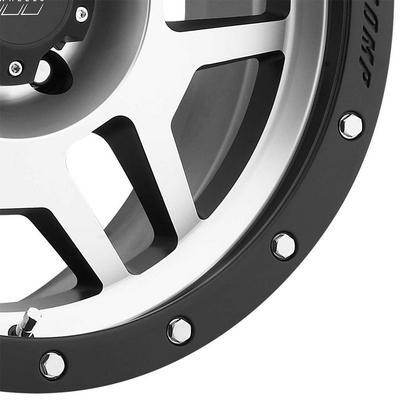

The Pro Comp 41 Series Phaser 17×9 wheel, part number PXA3541-7973, is a 17-inch aluminum split spoke wheel that is 9 inches wide. It has a 5 on 5 bolt pattern and a machined black finish. Stainless steel bolts are included with this finish.

The wheel uses an 83 center bore, a -6 offset and a backspacing of 4.75. Its alloy is low-pressure cast. It is a universal fit design, so the hub and clearance decide the fit.

Key features

  • Low-pressure cast aluminum
  • 17-inch diameter, 9-inch width
  • 5 on 5 bolt pattern
  • Center bore 83
  • Offset -6 with backspacing 4.75
  • Machined black finish
  • Stainless steel bolts listed with this finish

Bolts and galling

Stainless steel fasteners resist corrosion well, but they are prone to galling when threads are dry and tightened quickly. Galling can cause a bolt to seize or give a false torque reading. Clean the threads, check the thread pitch and use the lubricant your vehicle manual recommends, and avoid mixing stainless bolts with a different metal in the same hole.

Check the seat at the back of each bolt and make sure it sits flat in the wheel. A bolt that is too long can bottom out in the hub, and one that is too short leaves threads unengaged. Recheck torque after the first drive and inspect the threads when the wheel comes off.

  • Clean threads before installing
  • Check bolt length and seat
  • Recheck torque after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA3541-7973
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Center bore 83
Offset -6
Backspacing 4.75
Style Split spoke
Finish Machined black
Bolts Stainless steel
Construction Aluminum
Series 41 Series Phaser, machined face

Vehicle fitment

This 17×9 wheel is a universal fit design with no vehicle assigned. Match the 5 on 5 bolt pattern and 83 center bore to the hub, and confirm the -6 offset clears the brake caliper and fender.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Stainless steel bolts are listed with this finish, so check that the bolt seat and length suit the wheel before mounting. Confirm the offset clearance with the wheel on the hub.

The machined finish is a visual detail. Fit depends on the 5 on 5 bolt pattern, the 83 center bore and the -6 offset, so confirm those before mounting.

What’s included

One 17×9 wheel in machined black with stainless steel bolts is included. Verify the contents against your installation before starting.

SKU: PXA3541-7973 Categories: ,

Questions & Answers

Does the PXA3541-7973 come with stainless steel bolts?

Yes. Stainless steel bolts are included with this machined black finish. Confirm the bolt seat and length against the wheel before mounting.

What bolt pattern and center bore does this Phaser use?

It uses a 5 on 5 bolt pattern with an 83 center bore. Check both against your hub before ordering, along with the -6 offset.

Is this 17x9 wheel vehicle-specific?

No. It is a universal fit design. Choose it by bolt pattern, center bore, offset and brake clearance for your own vehicle.

Can stainless bolts be reused after removing the wheel?

Yes, if the threads and seats show no galling or deformation. Inspect each bolt before reusing it. Replace any bolt that shows thread damage, a rounded head or a flattened seat.

Why do bolts sometimes seize in the hub?

Corrosion and dry threads can bind bolts in the hub. Keep threads clean and use a suitable lubricant as your vehicle manual directs. Avoid forcing a seized bolt, which can strip the threads.
