Pro Comp 01 Series Raven, 17x9 Wheel with 5 on 5.5 Bolt Pattern – Satin Black – 5001-7985

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 aluminum split-spoke wheel in satin black
  • 5 on 5.5 bolt pattern, center bore 108
  • Offset -6; backspacing 4.75
  • 01 Series Raven design

Description

Overview

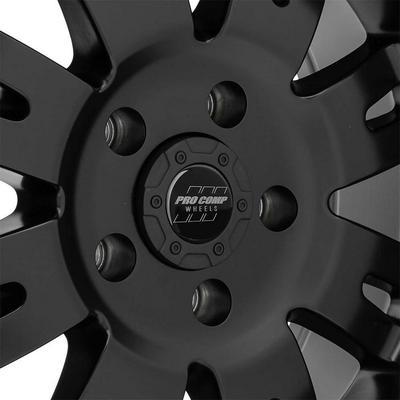

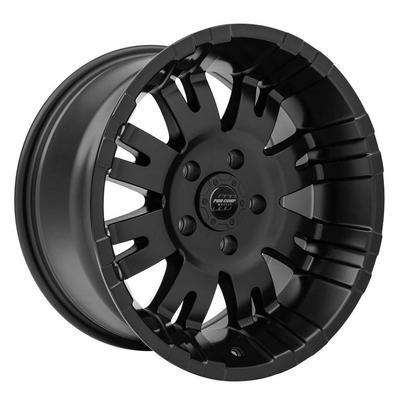

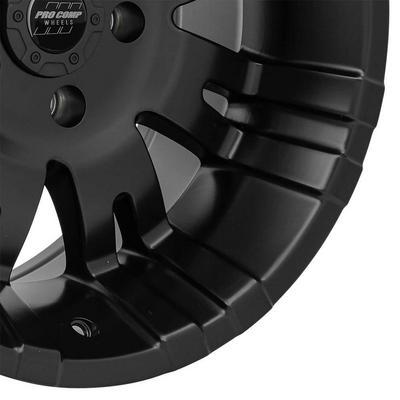

The Pro Comp PXA5001-7985 is a 17×9 aluminum wheel in the 01 Series Raven line, finished in satin black with a split-spoke design. Its bolt pattern is 5 on 5.5, its center bore is 108, and it has an offset of -6 and a backspacing of 4.75.

The wheel is cast aluminum using a low-pressure process. Confirm the hub bolt pattern before ordering, since this wheel only fits hubs that match it.

The 5 on 5.5 pattern with a 108 center bore is the combination to match. Check the offset and width against your fender and suspension, since the -6 offset places the 9-inch wide face further out than a zero-offset wheel.

Choose tire size and load rating for a 17-inch rim before mounting. The split-spoke face is the design used in this series.

Key features

  • Split-spoke aluminum design
  • Satin black finish
  • 5 on 5.5 bolt pattern
  • Center bore 108
  • Offset -6

Tire sizing and wheel wells

The tire is what makes contact with the road, so the wheel and tire have to be chosen as one assembly. A 17-inch rim suits a specific range of tire sizes, and the sidewall height and overall diameter determine how the truck’s speedometer and gearing behave. Oversized tires on a wheel with a lower offset can strike the fender or steering components when the wheel turns.

Split-spoke designs leave visible openings through the face, which make brake parts and lug nuts easier to inspect but also collect road grime. Clean the spokes and inner barrel regularly, and inspect the lug seats for corrosion or dents. Check that the wheel sits flat against the hub, and tighten lug nuts in a star pattern.

  • Clean the inner barrel after mud runs
  • Inspect the lug seats for dents
  • Check tire pressure before every trip

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5001-7985
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5.5
Center bore 108
Offset -6
Backspacing 4.75
Style Split spoke
Finish Satin black
Construction Aluminum
Series 01 Series

Vehicle fitment

A wheel is not built for one vehicle, so match the 5 on 5.5 pattern, the 108 center bore and the -6 offset to your truck before buying.

Tire size and load rating must suit a 17×9 wheel. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Confirm a hub cap on the packing list before ordering.

SKU: PXA5001-7985 Categories: ,

Questions & Answers

Will the PXA5001-7985 fit a 5 on 5.5 hub?

It is listed with a 5 on 5.5 bolt pattern, so it only fits hubs with that pattern. Confirm your truck's bolt pattern and center bore before ordering.

What is the offset of this Raven wheel?

The offset is -6, and the backspacing is 4.75. The wheel is 17 inches in diameter and 9 inches wide.

Does this wheel include a center cap?

Check the packing list for a center cap when the wheel arrives. The 5 on 5.5 pattern and 108 center bore are the fit measurements to confirm first.

Are hub caps needed on split-spoke wheels?

Not for fit, but a center cap keeps the hub clean and covers the lug nuts. Check the packing list for a cap, and buy one that fits the center bore if the box does not include it. Caps should be removed for brake or hub service.

Does wheel width affect tire choice?

Yes. Each wheel width suits a range of tire widths, and a tire that is too wide for the rim can bulge or wear unevenly. Choose a tire that both the wheel maker and the tire maker rate for that rim width.
