Overview

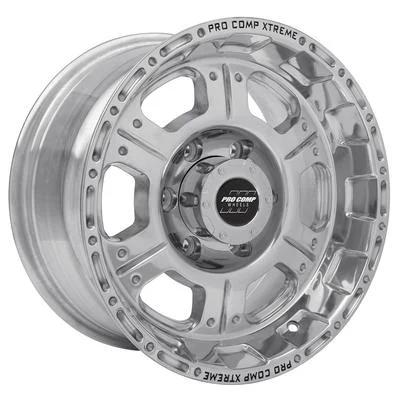

The Pro Comp PXA1089-6883 is a 16×8 polished aluminum spoke wheel from the Pro Comp 89 Series Kore line, with a 6 on 5.5 bolt pattern. It is sold as one wheel with a center bore of 108 and a zero offset.
Pro Comp says its alloys are designed with low-pressure casting technology and combine head-turning style, light weight and a durable finish. This polished wheel has a backspacing of 4.5, and the brand describes its alloy design as offering high offset brake clearance for performance trucks.
Key features
- Low-pressure cast aluminum construction
- Spoke face style
- 16-inch diameter, 8-inch width
- 6 on 5.5 bolt pattern
- Center bore of 108
- Zero offset with 4.5 backspacing
Tire size and clearance
Tire diameter and width change how much room the wheel needs, so pick the tire before you finalize fit. A taller or wider tire can rub the fender at full steering lock or when the suspension compresses. Measure the space between the tire and the caliper and the inner fender with the tire mounted on the wheel, not on the bench.
A zero offset puts the mounting face on the centerline, which moves the wheel outward compared with a positive-offset design. That shift changes brake caliper clearance and the position of the tire on the hub, so the brake parts and steering components are worth checking together. Spacers are sometimes used to fine-tune position, but they add stress to the studs and should be sized carefully.
- Check caliper clearance with the tire fully mounted
- Recheck clearance after the first trail run
- Torque lug nuts in a star pattern and re-check after initial drives
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA1089-6883 |
| Series | 89 Series Kore |
| Style | Spoke |
| Construction | Aluminum |
| Finish | Polished |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.5 |
Vehicle fitment
Fit depends on this wheel’s 6 on 5.5 hub pattern and 108 center bore matching your vehicle, and the zero offset must suit the brake parts. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Only a six-lug hub measuring 5.5 across the bolt holes accepts this wheel. Test-fit the polished rim with the tire to confirm clearance at the caliper and steering parts. Six lug holes on a 5.5 spacing must line up exactly with the hub, and the zero offset places the mounting face at the centerline, so confirm the caliper clearance with the tire mounted.
What’s included
One 16×8 aluminum wheel. Check that you have lug nuts and a center cap that suit the hub before mounting.
