Overview

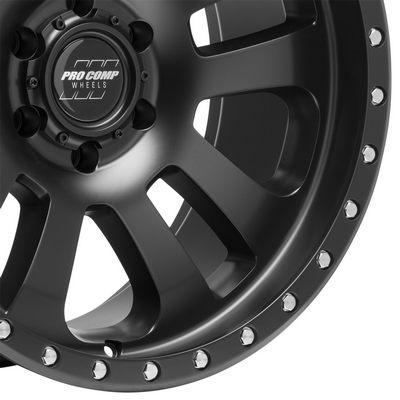

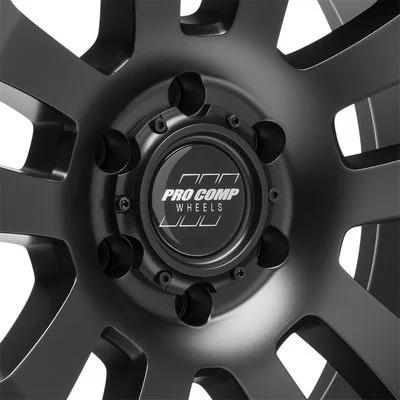

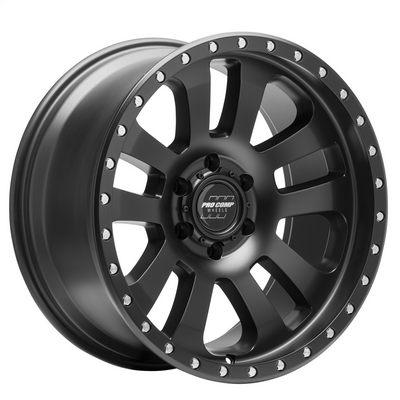

The Pro Comp 46 Series Prodigy is a 17-inch by 9-inch aluminum spoke wheel in satin black, part number 7046-7983, with a six-on-5.5 bolt pattern. It is designed for a durable finish and a light, styled look.
Wheel diameter, width, bolt pattern, offset, backspacing and center bore all need to suit the vehicle’s hub and brakes. Measure your hub and compare these figures before ordering. Check fit against your vehicle’s year, model and trim before ordering.
The wheels are made with low-pressure casting for strength and value. The high offset is intended to provide brake clearance on performance trucks and sport utility vehicles. The specifications below are the figures that decide fit.
- 17-inch diameter and 9-inch width
- Six-lug, 5.5-inch bolt pattern
- Satin black finish
- Aluminum spoke construction
- Low-pressure casting.
- Part of the 46 Series
Care and inspection
Wheels with a satin black finish show scuffs and brake dust more readily than gloss finishes, so clean them with a soft brush and a non-acid wheel cleaner. Avoid abrasive pads, which can dull the coating and leave scratches where corrosion can start. Aluminum spoke wheels also benefit from periodic checks of the lug seats, which can collect debris and affect how the lug nuts clamp.
Inspect the wheel after the first trail runs and after hard impacts. Look at the spokes, the bead seat and the inner barrel for cracks, bends or fresh scrapes. If the wheel vibrates at speed, measure runout, since a bent wheel can cause vibration even when the tire is balanced. Fasteners that loosen after mounting should be re-torqued and checked for thread damage.
- Check lug nut seats for wear or debris
- Recheck torque after the first drive
- Look for cracks near the spoke roots
- Confirm the hub face is clean and flat before mounting
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | 7046-7983 |
| Series | 46 Series |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.75 |
Vehicle fitment
Six lug studs sit on a 5.5-inch circle, so the bolt pattern has to match the hub exactly. No specific vehicle is named for this wheel, so compare the hub before ordering.
Offset is the distance from the wheel’s mounting surface to its centerline, so an offset of -6 moves the mounting surface outward. Backspacing is the distance from the mounting surface to the back edge of the wheel, and the figure given here is 4.75. Center bore is the hole that centers the wheel on the hub, and the figure given is 108.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use lug nuts whose seat matches the wheel’s lug seat design. Check the tire’s rim width range against the 9-inch width before mounting.
What’s included
Check the package contents against your installation before starting, including lug nuts and valve stems.
