Pro Comp 40 Series Vertigo, 18x9 Wheel with 5 on 5 Bolt Pattern – Matte Graphite – 2640-897350

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 18x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 40 Series Vertigo 18×9, part number PXA2640-897350
  • 5 on 5 bolt pattern, center bore 83
  • Matte graphite split spoke wheel
  • Offset 0, backspacing 5

Description

Overview

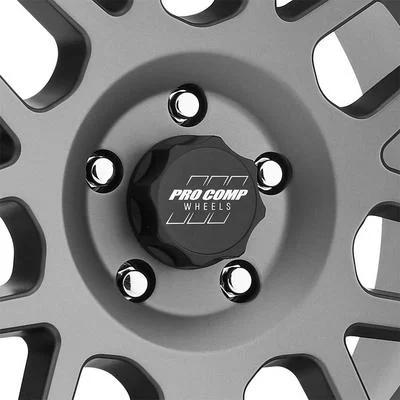

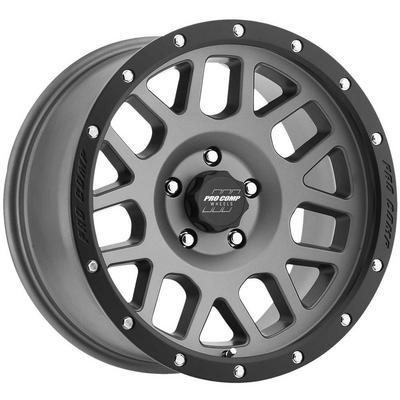

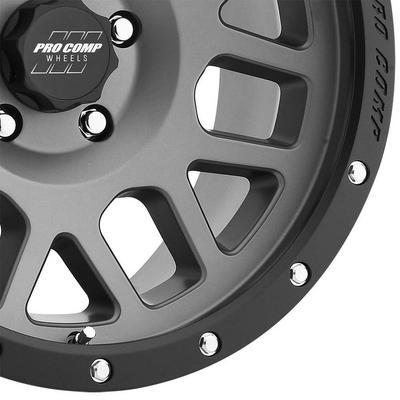

The Pro Comp 40 Series Vertigo 18×9 wheel, part number PXA2640-897350, is an 18-inch aluminum split spoke wheel with a 9-inch width. It has a 5 on 5 bolt pattern and a gray finish, which the series name describes as 40 Series Vertigo matte graphite.

The Vertigo line is made with low-pressure casting. This 18×9 version has an 83 center bore, a 0 offset and a backspacing of 5, so its mounting face sits at the center of the wheel’s width. It is universal fit and is not tied to a particular vehicle.

Key features

  • Low-pressure cast aluminum
  • 18-inch diameter and 9-inch width
  • 5 on 5 bolt pattern
  • Center bore 83
  • Offset 0 and backspacing 5
  • Matte graphite split spoke finish

Before you buy

Choosing a 0 offset wheel means the mounting face sits in the middle of the wheel width, so the wheel is neither pushed outward nor pulled inward by the hub. That layout can suit a vehicle that already has a centered hub, but it still needs a caliper and tire check. Measure the space between the back of the spokes and the caliper before buying a tire, because a larger tire can take up more room than the original.

Matte graphite finishes show wear more clearly than gloss, so handle the wheel with a clean cloth during mounting and keep the bead seat free of grit. A wheel in this finish is best cleaned with mild soap and water. Compare the hub bore and bolt pattern first, and treat clearance as the second check.

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA2640-897350
Wheel diameter 18 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Center bore 83
Offset 0
Backspacing 5
Style Split spoke
Finish Gray, matte graphite
Construction Aluminum
Series 40 Series Vertigo

Vehicle fitment

The wheel is not assigned to a vehicle. Match the 5 on 5 bolt pattern and 83 center bore to your hub, then confirm the 18-inch size clears the brake caliper and the tire you plan to use.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the offset is 0, the wheel face sits centered on the hub. Measure the caliper clearance before mounting, since 18-inch wheels leave less space than smaller sizes.

What’s included

The package is one 18×9 wheel in gray matte graphite. Before starting, confirm your installation has the center caps and lug nuts it needs.

SKU: PXA2640-897350 Categories: ,

Questions & Answers

What bolt pattern and center bore does the PXA2640-897350 use?

It uses a 5 on 5 bolt pattern with an 83 center bore. Check both against your hub, along with the 0 offset and 5 backspacing, before ordering.

Is this 18x9 Vertigo a gray wheel?

The finish is gray, and the series name gives it as 40 Series Vertigo matte graphite. It is a split spoke design in aluminum.

Is the wheel built for a specific model?

No. It is universal fit and is built for no single model or year. Choose it by bolt pattern, center bore, width and clearance.

Are spacers a good way to change a wheel's fit?

Spacers move the wheel outward, which changes both clearance and load on the studs. They are only safe when the spacer is made for the hub, and they add a second place where fasteners can loosen. Recheck clearance after any spacer is fitted.
