Overview

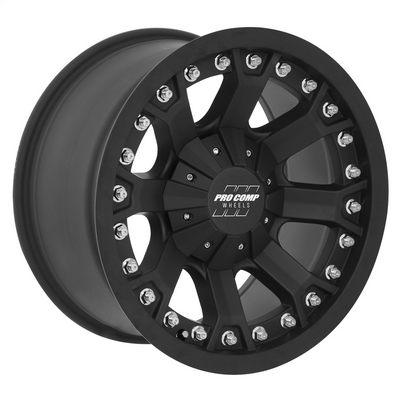

The Pro Comp 33 Series Grid 20×9 wheel, part number PXA7033-2939, is a 20-inch, 9-inch-wide spoke wheel with a 6 on 5.5 bolt pattern. A 6 on 135 pattern is also offered, and the finish is matte black from the 33 Series flat black family.
The wheel is cast from aluminum using Pro Comp’s low-pressure casting method. Its 108 center bore, 0 offset and 5 backspacing describe the mounting geometry. Pro Comp classifies the wheel as universal fit, which means the vehicle must be matched by hub measurements rather than by a model list.
Key features
- Low-pressure cast aluminum
- 20 inches in diameter and 9 inches wide
- 6 on 5.5 bolt pattern, 6 on 135 also listed
- Center bore 108
- Offset 0 and backspacing 5
- Black spoke styling in a matte finish
Choosing a tire for big wheels
Tire choice on a 20-inch wheel affects ride, clearance and steering. Wider tires add grip but can rub on the inner fender at full lock, and a lower profile increases the chance of impact damage on broken pavement. Check the overall tire diameter so the speedometer reads correctly and the tire clears the suspension at full compression.
Tire and wheel pairing also changes the load on the hub. Wheels with a 0 offset carry the load near the center line, which can feel different in turns than offset designs. Test the vehicle at low speed after mounting before driving far.
- Check overall tire diameter against the original
- Test steering lock for rubbing
- Re-check lug nut torque after the first drives
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7033-2939 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 (also 6 on 135) |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Black, 33 Series flat black |
| Construction | Aluminum |
| Series | 33 Series Grid |
Vehicle fitment
This wheel is not built for one make, model or year. Measure your hub, then match the 6 on 5.5 or 6 on 135 bolt pattern and the 108 center bore. The 20-inch size should be checked against brake caliper and tire clearance.
Confirm your vehicle’s year, model and trim before ordering.
The 20-inch, 9-inch-wide dimensions and 0 offset are the figures to set against the brake caliper and fender. Because a 6 on 135 pattern is also offered, check both layouts against the hub before mounting.
What’s included
The package is one 20×9 wheel in black. Check the package contents against your installation before starting, since center caps and lug nuts are not included.
