Pro Comp 6″ Stage II Lift Kit with PRO-X Shocks – K4176T

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2011–2016 Ford F-250 Super Duty.
  • 6-inch Stage II lift with a 6–7 inch lift height range
  • Replacement radius arms of 4130 chromoly tubing

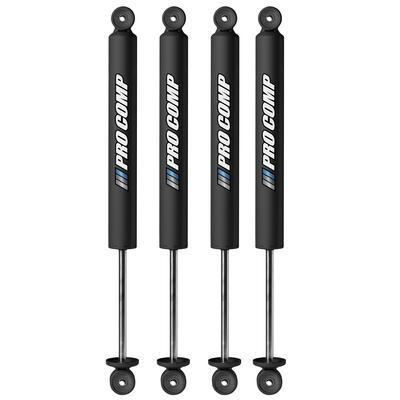

  • PRO-X front and rear shocks, included
  • Part number EXPK4176T (K4176T)

Description

Overview

The Pro Comp EXPK4176T, also written K4176T, is a 6-inch Stage II suspension lift kit for the 2011–2016 Ford F-250 Super Duty. It adds replacement radius arms and PRO-X shocks, and the kit fits those trucks directly.

The kit uses a block and spacer rear lift with a U-bolt, and the Stage II system includes new radius arms in place of the factory pieces. The brand’s description says these systems keep steering and suspension geometry in line through a laser-cut bracket set and a drop pitman arm.

Key features

  • Laser-cut brackets and a drop pitman arm, which Pro Comp says keep the suspension and steering geometry in line
  • Specific-rate coil springs for added ride height
  • Stage II replacement radius arms of 4130 chromoly tubing, with 3/16-inch steel plate
  • PRO-X front and rear shocks, included
  • Direct fit to the listed 2011–2016 F-250 Super Duty

Radius arm geometry

Radius arms locate the axle and control how it moves under braking and acceleration. When they are replaced, the arm angle and bushing load change, which is why the arms and their mounts deserve careful inspection. Suspension parts often wear together, so checking shocks and coil springs at the same time is a practical choice.

Chromoly tubing is strong for its weight, and steel plate reinforcements help the mounts hold up under repeated loads. Even so, welds, bushings and bolts should be checked for cracks or movement after off-road use.

A drop pitman arm changes steering geometry, so the steering feel and tie rod ends should be checked after the install. Alignment is the final step, and it works best once the truck has settled at its full height.

  • Inspect radius arm bushings after rough trails
  • Check welds and mounts for cracks
  • Recheck the drop pitman arm geometry after alignment

Specifications

Brand Pro Comp Suspension
Part number EXPK4176T (K4176T)
Kit type Lift kit, complete suspension system
Kit stage Stage 2
Lift height 6 inches, with a lift height range of 6–7 inches
Radius arms Replacement, 4130 chromoly tubing with 3/16-inch steel plate
Rear lift method Block and spacer
Rear lift component Block and U-bolt with add-a-leafs
Front shocks PRO-X
Rear shocks PRO-X
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 2011–2016 Ford F-250 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims.

The F-350 Super Duty and the 2017 and newer F-250 are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The Stage II radius arms replace factory parts, so this is a bolt-in job only if the listed brackets fit your truck. Plan for a full alignment and a recheck of the drop pitman arm geometry after the lift.

What’s included

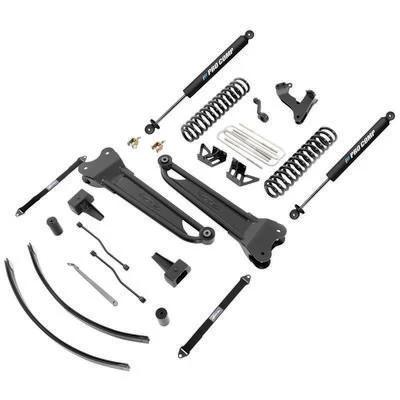

The kit includes replacement radius arms, coil springs, the drop pitman arm, the block and U-bolt rear set, and PRO-X shocks. Check the package contents against your installation before starting work.

SKU: EXPK4176T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp EXPK4176T fit a 2011 Ford F-250 Super Duty?

Yes. The kit fits the 2011–2016 Ford F-250 Super Duty, including 2011 trucks in the King Ranch, Lariat, Platinum, XL and XLT trims.

Does this kit fit an F-350 Super Duty?

No. This part number fits the F-250 Super Duty only. F-350 Super Duty trucks use a separate Pro Comp part number, so confirm the part number matches your truck before ordering.

What arms come with the Stage II kit?

Stage II includes replacement radius arms made from 4130 chromoly tubing and 3/16-inch steel plate. They replace the factory arms.

How do I know when radius arm bushings need replacing?

Look for clunking over bumps, wandering on the highway and uneven tire wear. Check bushings for cracks and movement by hand with the truck safely supported. Worn bushings should be replaced before a full alignment so the new geometry holds.
