Overview
The Pro Comp 4-inch Lift Kit with PRO-X Shocks, part number EXPK4014T (kit K4014T), is a stage 1 suspension lift for the 1999 Ford F-250 Super Duty and F-350 Super Duty. It fits the Lariat, XL and XLT versions of both trucks.
The kit gives 4 inches of stage 1 lift, with a listed lift height range of 4 to 5.5 inches. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. PRO-X shocks are listed at the front and the rear and are included.
The block and U-bolt parts make up the rear lift method on this kit.
Key features
- 4-inch stage 1 suspension lift

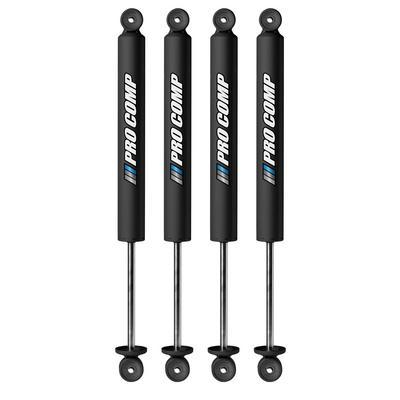

- PRO-X shocks at the front and rear, included
- Block and U-bolt rear with add-a-leafs
- Lift height range of 4 to 5.5 inches
Choosing a lift height
A suspension lift raises the body and the axles so larger tires fit and the truck sits higher over the drivetrain. Stage 1 kits like this one are a common route, because they keep most factory parts in place and suit a truck that sees mostly street and light trail use. Before choosing, think about how the truck will be loaded, since towing or a heavy bed load can make a leaf spring rear sag faster than the lift itself.
Rear lifts that use blocks, U-bolts and add-a-leafs change the angle of the driveshaft, so the driveline should be checked after installation. Vibration at highway speed is a common sign that the angle has moved too far. Many owners replace the U-bolts and check the spring pins at the same time, because those parts are already disturbed during the work.
Keep the factory brake lines, the steering linkage and the wiring in mind as well. Stretched brake lines or a binding steering component can show up only after a few weeks of driving, so look them over again once the truck has settled.
- Inspect U-bolts for tightness after the first few drives
- Check driveline angle and vibration at highway speed
- Re-check brake lines and steering links after the truck settles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4014T |
| Kit code | K4014T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1999 Ford F-250 Super Duty and 1999 Ford F-350 Super Duty, in the Lariat, XL and XLT versions.
It covers the 1999 model year only, so 2000 and later Super Duty trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear block, U-bolt and add-a-leaf setup changes the rear height, so measure the truck front to rear after installation and check the alignment.
What’s included

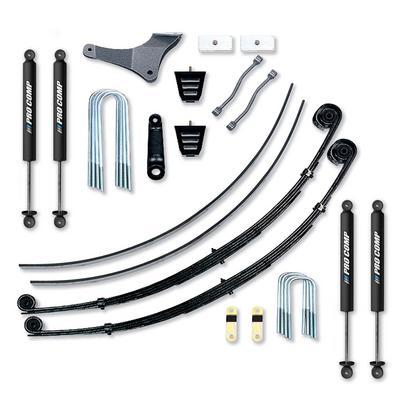

The 4-inch stage 1 lift kit with PRO-X front and rear shocks.
