Overview
The Pro Comp 4-inch Lift Kit with PRO-X Shocks, part number EXPK1049T (kit K1049T), is a stage 1 suspension lift for 1995 to 1999 Chevrolet Tahoe and GMC Yukon models. It fits the Tahoe Base, LS and LT, and the Yukon Base, Denali, SL, SLE and SLT.
This kit lifts the truck 4 inches at stage 1, with a lift height range of 4 to 5.5 inches. The rear uses a block. Shocks are not included, and the rear shock is the ES3000 model, so confirm shock supply before installation.
Shock choice for a block lift
Rear blocks raise the axle relative to the body without changing the leaf springs or the suspension arms. The spring rates stay the same, but the shock has to cover a different distance once the body sits higher, so shock length matters. A shock that is too short can bottom out or pull on the bump stop, while one that is too long can limit droop and affect wheel articulation.
When picking shocks for an older full-size SUV, measure the extended and compressed lengths of the current units and compare them with the new lift height. Many owners replace the shocks at the same time, since the stock dampers were built for factory ride height. Buying a matched pair for each end keeps the ride balanced on rough roads.
- Measure the current shock length before buying
- Check the bump stops for wear or cracking
- Inspect U-bolts and mounting bushings at each service
- Re-check driveshaft angle after the lift
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1049T |
| Kit code | K1049T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift component | Block |

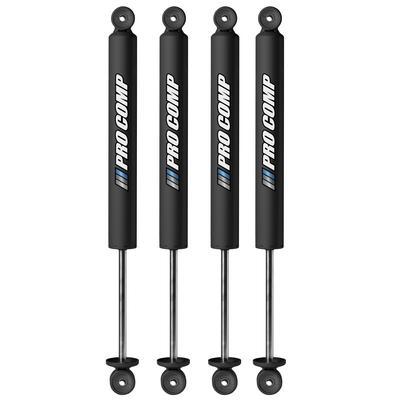

| Rear shocks | ES3000 |
| Shocks included | No |
| Fit type | Direct fit |
Vehicle fitment
Fits 1995 to 1999 Chevrolet Tahoe models in the Base, LS and LT versions, and 1995 to 1999 GMC Yukon models in the Base, Denali, SL, SLE and SLT versions.
The list does not include the 1994 and earlier or 2000 and newer Tahoe and Yukon models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because shocks are not included, the truck’s existing shocks or separately sourced shocks will be needed for the rear of the lift. Confirm the shock length with the lift height before installation.
What’s included
The 4-inch stage 1 lift components with a block at the rear.
Not included: shocks.
