Pro Comp 3.5″ Lift Kit with PRO-VST 2.5″ Coilovers and Shocks with Rear Coil Spacers – K5099BX

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2003 to 2009 Toyota 4Runner and 2007 to 2009 Toyota FJ Cruiser
  • 3 to 3.5-inch lift with PRO-VST coilovers and shocks
  • Coil spring spacers at the rear
  • Designed for 33-inch tires

Description

Overview

The Pro Comp 3.5-inch Lift Kit with PRO-VST 2.5-inch Coilovers and Shocks, part number EXPK5099BX (kit K5099BX), is a 3 to 3.5-inch suspension lift for the 2003 to 2009 Toyota 4Runner and the 2007 to 2009 Toyota FJ Cruiser. It fits the 4Runner Limited, SR5 and Sport, and the FJ Cruiser Base, TRD Special Edition and Trail Teams Special Edition.

The specifications list a 3 to 3.5-inch suspension lift with a lift height range of 0 to 3.5 inches. PRO-VST shocks are listed at the front and the rear, and they are included. The rear uses coil spring spacers. Pro Comp lists 33 inches as the tire size.

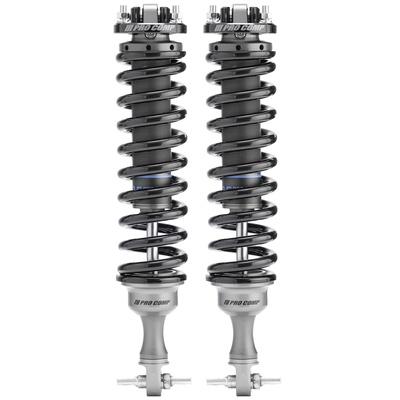

The Explorer Pro VST coilovers replace the factory springs and shocks, and they are tuned for this truck. The system is designed to run larger tires while keeping OE ride quality, and it works best with 17-inch wheels and 33-inch tires.

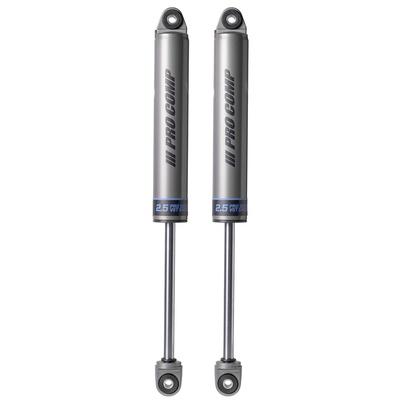

The PRO-VST shocks and coilovers provide highway ride quality with capable off-road performance. The kit installs without frame modifications.

Key features

  • 3 to 3.5-inch suspension lift
  • PRO-VST coilovers and shocks included, front and rear
  • Coil spring spacers at the rear
  • Designed for 33-inch tires
  • Installs without frame modifications

Before you buy

A coilover lift replaces the springs and shocks as one unit, so the ride, damping and load capacity all change together. Shoppers should think about how they use the truck: daily driving, highway trips, or regular trail runs. Coilovers with tuned damping suit a mixed-use vehicle, while the rear spacer approach is a simpler way to raise the back end if the front and rear need to match.

Larger tires add weight and change gearing, so the brakes, steering components and driveline should be inspected when tire size goes up. Ride height changes also affect the steering geometry, which is why an alignment check after installation matters. Plan for the first few hundred miles to be a settling-in period, and re-check torque on all fasteners after that.

Specifications

Brand Pro Comp Suspension
Part number EXPK5099BX
Kit code K5099BX
Suspension type Lift kit
Lift height 3 to 3.5 inches; range 0 to 3.5 inches
Tire size 33 inches
Rear lift component Coil spring spacers
Shocks included Yes
Front shocks PRO-VST
Rear shocks PRO-VST
Fit type Direct fit

Vehicle fitment

It fits the 2003 to 2009 Toyota 4Runner in the Limited, SR5 and Sport versions, and the 2007 to 2009 Toyota FJ Cruiser in the Base, TRD Special Edition and Trail Teams Special Edition versions.

The list does not include 2010 and newer 4Runner models or 2010 and newer FJ Cruiser models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coil spring spacers at the rear raise the rear height without changing the springs, so the front and rear should be measured after installation and the alignment checked.

What’s included

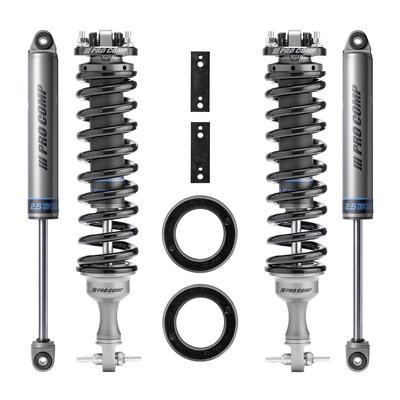

The 3 to 3.5-inch lift kit with PRO-VST front and rear coilovers and shocks, and the rear coil spring spacers.

SKU: EXPK5099BX Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2009Limited, SR5, Sport
Toyota FJ Cruiser2007–2009Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K5099BX fit a 2005 Toyota 4Runner?

Yes. 2005 falls within the 2003 to 2009 Toyota 4Runner range, which covers the Limited, SR5 and Sport versions. Confirm the trim before ordering.

Does it fit a 2008 FJ Cruiser?

Yes. The list includes the 2007 to 2009 Toyota FJ Cruiser in the Base, TRD Special Edition and Trail Teams Special Edition versions.

Are the shocks included?

Yes. PRO-VST shocks are listed at the front and rear, and they are included with the kit. The specifications list PRO-VST at the front and rear, which matches the title.

Do I need an alignment after installing coilovers?

Yes. Changing ride height affects camber, caster and toe, so have the alignment checked after installation. Measure both the front and rear heights before and after the install to confirm the lift is even.
