Pro Comp 6 Inch Lift Kit with ES9000 Shocks – K1143B

Pro Comp Suspension

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch knuckle lift with strut spacers, spindles and crossmembers
  • Rear block, U-bolt and add-a-leaf kit
  • Brake line extension brackets and compression struts
  • Fits 2007-2013 Chevrolet Silverado and GMC Sierra 1500 trucks

Description

Overview

The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1143B, is a 6-inch knuckle lift for the 2007-2013 Chevrolet Silverado 1500 and GMC Sierra 1500. The front lift uses strut spacers and spindles, with front and rear crossmembers, compression struts and sway bar drop brackets. The rear uses a block, U-bolt and add-a-leaf kit.

The front shocks are reused factory units. The kit includes brake line extension brackets, and the lift height range is 5 to 6.99 inches. Confirm the shock setup for your truck before installing.

Key features

  • 6-inch stage 1 knuckle lift

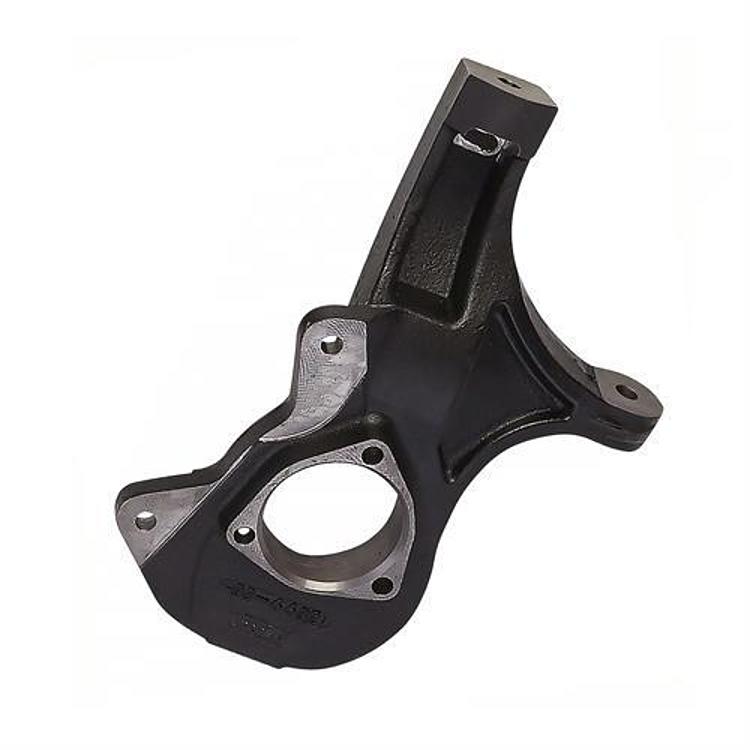

  • Front strut spacers and spindles

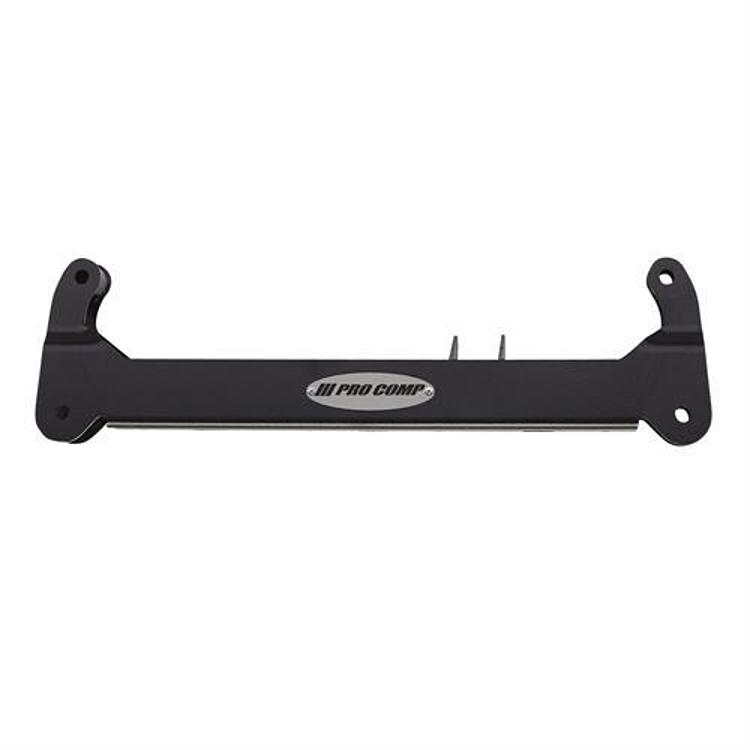

  • Front and rear crossmembers
  • Compression struts and sway bar drop brackets
  • Bump stops
  • Rear block, U-bolt and add-a-leaf kit
  • Brake line extension brackets

Strut spacer lift tradeoffs

Strut spacer lifts raise the truck by changing the front strut mounting point, so the spindle and crossmember geometry shift with the new height. Camber and caster should be checked and set after installation, since the front wheels can move out of specification. Compression struts and sway bar drop brackets also affect how the front end loads at the new height.

The rear block, U-bolt and add-a-leaf kit lifts the back of the truck and changes the rear spring rate, so the ride may feel firmer under light loads. Check the brake line extension brackets and the driveshaft angle after installation. Worn ball joints, tie rods and wheel bearings are worth inspecting while the front end is apart.

  • Set camber and caster after installation
  • Check brake line brackets for rubbing
  • Inspect ball joints while the front is open

Specifications

Brand Pro Comp Suspension
Part number K1143B
UPC 614901122657
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Knuckle
Rear lift Block, U-bolts and add-a-leaf
Front shocks Reuse OEM
Shocks included Yes
Fitment Direct fit

Vehicle fitment

It fits the 2007-2013 Chevrolet Silverado 1500 (LS, LT, LTZ, WT and XFE) and the 2007-2013 GMC Sierra 1500 (Denali, SL, SLE, SLT, WT and XFE).

The 2500 and 3500 series trucks, and 2006 and earlier or 2014 and later 1500 models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Knuckle and strut spacer lifts change front geometry, so have the alignment and driveline angles checked after installation.

What’s included

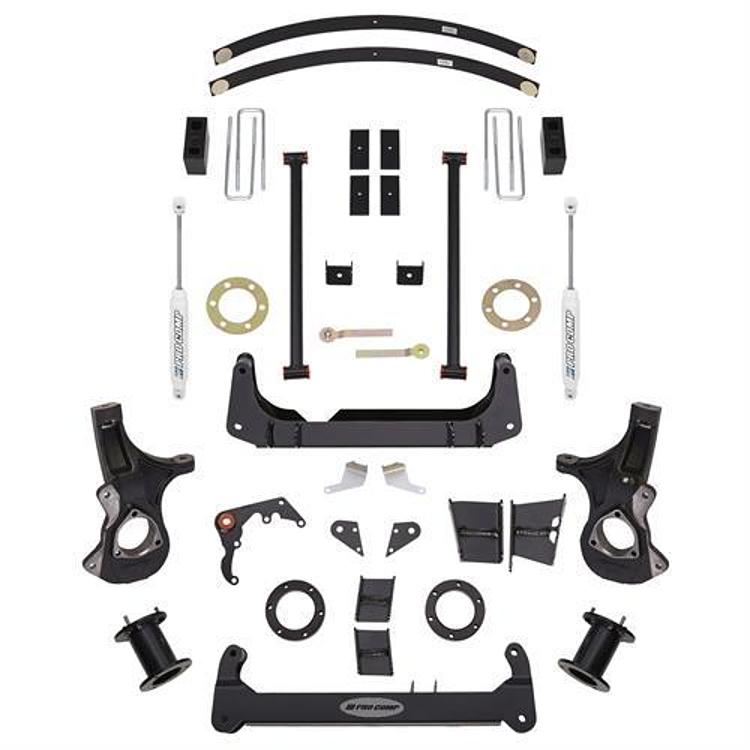

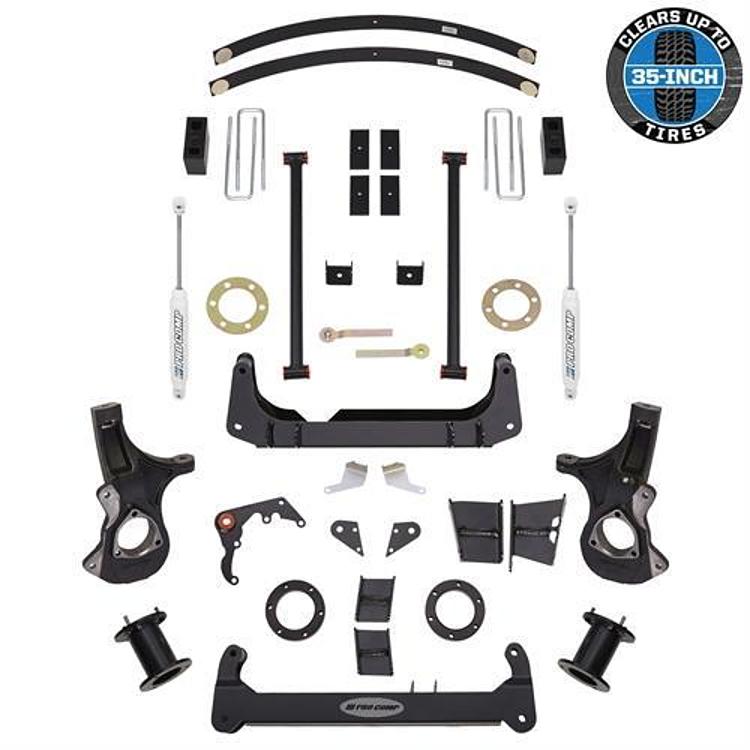

It includes strut spacers, spindles, front and rear crossmembers, compression struts, sway bar drop brackets, bump stops, brake line extension brackets, and a rear block, U-bolt and add-a-leaf kit. The front shocks are reused factory units.

SKU: EXPK1143B Category:

Specification

Shipping weight 261.65 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2013LS, LT, LTZ, WT, XFE
GMC Sierra 15002007–2013Denali, SL, SLE, SLT, WT, XFE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1143B fit a 2010 GMC Sierra 1500?

Yes. It fits the 2007-2013 GMC Sierra 1500, and 2010 falls within that range. The fit covers the Denali, SL, SLE, SLT, WT and XFE versions, so match your trim before ordering.

Which shocks are on the K1143B?

The front shocks are reused factory units. Check the shock setup for your truck before installing the kit, since shock setup affects front ride height and damping.

Does the K1143B fit a 2014 Silverado 1500?

No. The Silverado 1500 fit runs from 2007 to 2013, so 2014 models are outside the coverage. Confirm your model year before ordering.

Do strut spacer lifts need alignment?

Yes. Changing the strut mounting point moves camber and caster, so an alignment should be set after installation. Check tire wear during the first weeks of driving to confirm the setup is correct.
