Pro Comp 4 Inch Stage I Lift Kit with ES9000 Shocks – K4149B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 4-inch Stage 1 spacer kit for the 2009–2014 Ford F-150
  • Coil spacers, impact struts and a rear crossmember with brake line extension
  • Block and U-bolt rear kit with ES9000 shocks
  • Shock boots are included

Description

Overview

The Pro Comp K4149B is a 4-inch Stage 1 lift kit with ES9000 shocks for the 2009–2014 Ford F-150. It is a spacer-type kit that uses coil spacers at the front, impact struts for the front end, and a rear crossmember and block and U-bolt kit at the back.

The front shock is an ES9000, and the rear shock is also an ES9000, so the kit runs ES9000 units at both ends. Shock boots come with the kit, and the brake line extension is part of the rear crossmember package.

Key features

  • 4-inch lift height from a Stage 1 kit
  • Coil spacers at the front
  • Impact struts
  • Rear crossmember with brake line extension
  • Block and U-bolt rear lift
  • ES9000 shocks and shock boots

Spacer lift setup

A spacer lift raises the truck by adding height between the factory components rather than replacing them. Coil spacers sit above the front springs, and the rear uses a block between the axle and the leaf springs. Because the stock parts stay in use, the geometry changes less than it would with a longer-arm system, but the front and rear angles still shift and should be measured after the kit goes on.

Shock length matters with any lift. Once the truck sits higher, the shocks extend further through their travel, so the mounting angles and bump stops should be checked for clearance. Inspect the shock boots periodically for cracks, since boots keep grit off the shaft and extend seal life.

  • Re-torque U-bolts after the first few drives
  • Check the brake hose length once the front end is raised
  • Inspect the impact struts for bushing wear at each service

Specifications

Brand Pro Comp Suspension
Part number K4149B
UPC 700007447861
Lift height 4 inch (lift height range 3 to 4.99 inches)
Lift kit stage Stage 1
Suspension type Spacer
Front control Coil spacers and impact struts
Rear lift Block and U-bolt kit
Front shocks ES9000
Shock boots Included

Vehicle fitment

The kit is built for the 2009–2014 Ford F-150 across the FX4, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT versions.

The list covers the 2009 through 2014 model years only, so older or newer F-150 generations are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Spacer lifts keep the factory components in place, so the alignment should be checked after installation, and the brake line extension should be inspected for length.

What’s included

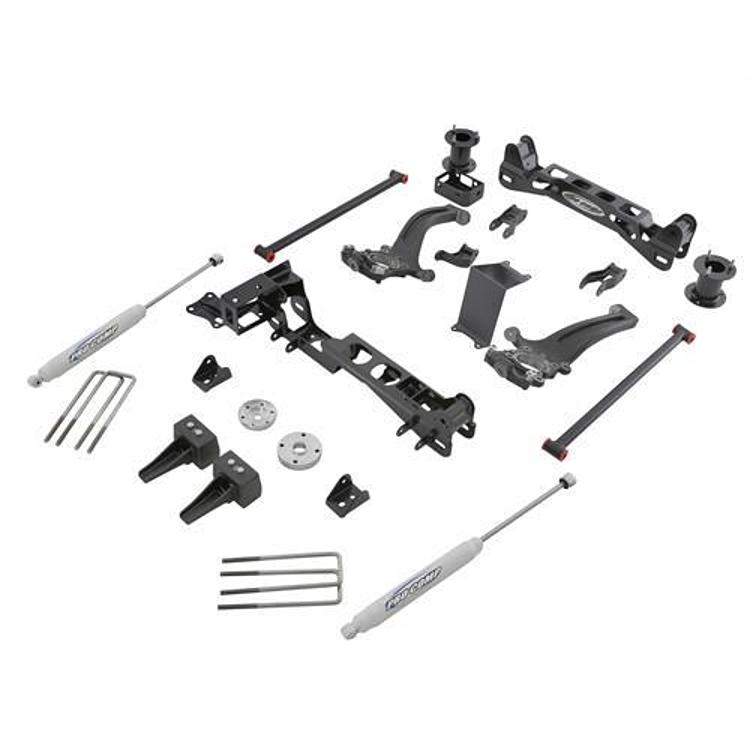

The kit includes coil spacers, impact struts, a rear crossmember and brake line extension, the block and U-bolt kit, ES9000 shocks and shock boots.

SKU: EXPK4149B Category:

Specification

Shipping weight 239.00 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502009–2014FX4, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Are shock boots included with the K4149B?

Yes. Shock boots come with this kit, along with ES9000 shocks at the front and rear. The boots protect the shock body and shaft from dirt and debris on the trail.

Does this 4-inch kit fit a 2015 F-150?

No. It fits the 2009 through 2014 Ford F-150 only, so a 2015 truck falls outside those model years. Confirm fit for your vehicle's year, model and trim before ordering.

What are the front and rear shocks?

The spec sheet lists ES9000 at the front, and the feature list names ES9000 rear shocks. Both are part of the kit.

Do spacer lifts affect shock length?

Yes. Spacer lifts raise the body relative to the axles, so the shocks operate at a longer extension and need to be matched to the new height. Check that the shock boots seat correctly after installation.
