Overview
The Pro Comp K4084B is a 6-inch stage 2 coil spring lift with radius arms and ES3000 front and rear shocks. The front uses coil springs with radius arms, and the rear is raised with a block and U-bolt kit. The lift height range is 5 to 6.99 inches.
The kit includes a pitman arm for steering correction, bump stop extensions and extended length brake lines. Shock boots are not included.
Key features
- 6-inch stage 2 lift
- Front coil springs with radius arms
- Rear block and U-bolt lift
- Bump stop extensions
- Pitman arm steering correction
- Extended length brake lines
Setting up a stage 2 kit
A stage 2 kit with radius arms, a pitman arm and a block and U-bolt rear is best approached as a set of connected changes. Each part moves the geometry in a way that affects the others, so the order of installation and final checks should be planned in advance. Confirm all hardware is present before starting.
After the lift is in, road test at a steady speed and recheck the alignment, steering centering and driveline angles. Shock boots are not supplied, so plan separate protection for the shocks if they will see dust or water. Keep records of settings and torque so future service is simpler.
- Plan the installation order
- Recheck alignment and centering
- Plan separate shock protection if needed
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4084B |
| UPC | 614901125252 |
| Lift | 6 inches, stage 2 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Check the radius arm and axle layout against your truck first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms and a block and U-bolt rear lift change the front and rear geometry, so the alignment and driveline angles should be checked after installation. Confirm the extended brake lines fit the new height before the wheels are refitted.

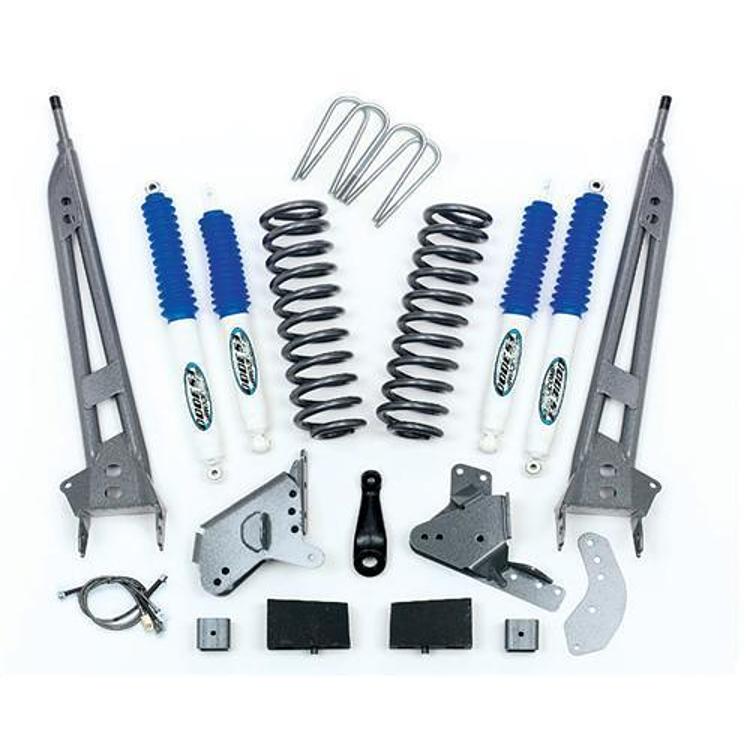

What’s included
The kit includes front coil springs, radius arms, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
