Pro Comp 6″ Stage I Lift Kit with PRO-X Shocks – K1019T

Pro Comp Suspension

Shop Chevrolet K1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 lift with PRO-X front and rear shocks for 1987–1992 Chevrolet and GMC C/K and V-series trucks and SUVs
  • Block and U-bolt rear lift with add-a-leaf hardware; lift height range 6–7 inches
  • 33-inch tire size
  • Covers Blazer, Jimmy and Suburban models in the list

Description

Overview

The Pro Comp K1019T is a 6-inch stage 1 lift kit with PRO-X front and rear shocks for 1987–1992 Chevrolet and GMC full-size trucks and SUVs. Fitment covers the Chevrolet Blazer, K1500, V10 and V1500 Suburban, and the GMC Jimmy, K1500, V1500 and V1500 Suburban, in the model years shown below. The lift height range is 6 to 7 inches, and the shocks are included.

The rear lift is a block/spacer design using block and U-bolt parts with add-a-leaf hardware. The specifications list a 33-inch tire size, which is the tire size the kit is listed with.

Key features

  • 6-inch stage 1 lift for the 1987–1992 Chevrolet and GMC full-size lineup
  • PRO-X front and rear shocks, included
  • Block and U-bolt rear lift with add-a-leaf hardware
  • Lift height range of 6 to 7 inches
  • Tire size is 33 inches.

Driveline and brake checks

Older full-size trucks were built around a smaller ride height, so a 6-inch lift changes the geometry of nearly every connected part. The driveshaft angle, the front axle position and the steering linkage all move, and each can wear faster if left unchecked. Plan to inspect the joints and linkage during the first service rather than waiting for a noise.

Brake hoses and lines often need a closer look on a lifted truck, since the wheel and axle travel in a different arc. Check that hoses have enough slack at full compression and full droop. Older trucks may also have worn bushings that were masked by the stock height, so inspect them before adding miles.

  • Check U-joints and slip yoke for play
  • Inspect brake hose slack at full droop
  • Recheck alignment after the first few drives

Specifications

Brand Pro Comp Suspension
Part number K1019T
Suspension type Lift kit, stage 1
Lift height 6 inches, listed range 6–7 inches

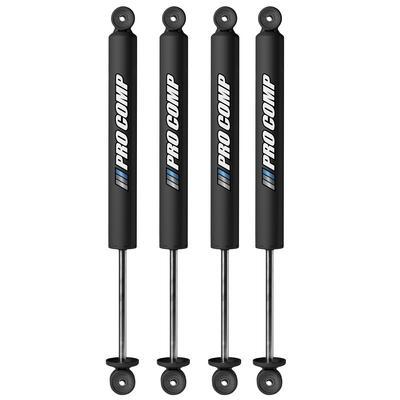

Front shocks PRO-X
Rear shocks PRO-X, included
Rear lift method Block/spacer with block and U-bolt and add-a-leaf
Tire size 33 inches
Shocks included Yes

Vehicle fitment

It fits the 1987–1991 Chevrolet Blazer, the 1988–1992 Chevrolet K1500, the 1987 Chevrolet V10, the 1987–1988 Chevrolet V10 Suburban, the 1989–1991 Chevrolet V1500 Suburban, the 1987–1991 GMC Jimmy, the 1988–1991 GMC K1500, the 1987 GMC V1500 and the 1987–1991 GMC V1500 Suburban.

The list covers the 1987 to 1992 model years only. Trucks from 1986 and older, 1993 and newer, and the 2500 and 3500 models are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An older full-size truck lifted this much changes the driveline angles and the alignment, so check both after installation. The 33-inch tire size is the listed figure, so confirm the tire clearance on your own truck.

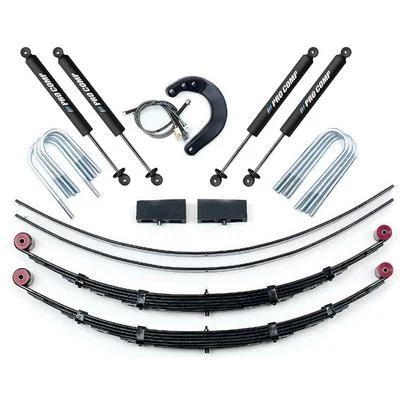

What’s included

PRO-X front and rear shocks, and the block and U-bolt rear lift components with add-a-leaf hardware.

SKU: EXPK1019T Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Blazer1987–1991Custom Deluxe, Scottsdale, Silverado
Chevrolet K15001988–1992Cheyenne, Scottsdale, Silverado, Sport, WT
Chevrolet V101987Custom Deluxe, Scottsdale, Silverado
Chevrolet V10 Suburban1987–1988Custom Deluxe, Scottsdale, Silverado
Chevrolet V1500 Suburban1989–1991Scottsdale, Silverado
GMC Jimmy1987–1991Base, Sierra Classic
GMC K15001988–1991Sierra, Sierra SLE, Sierra SLX
GMC V15001987Base, High Sierra, Sierra Classic
GMC V1500 Suburban1987–1991Base, High Sierra, SLE, Sierra Classic

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K1019T fit a 1990 Chevrolet Blazer?

Yes. The 1987–1991 Chevrolet Blazer is in the listed fitment, so a 1990 model is covered. Compare the year and model on your truck with the list before ordering.

Does the K1019T fit a 1993 Chevrolet K1500?

No. It covers 1987 to 1992 model years only, so 1993 and newer trucks are not included. Confirm fit for your vehicle's year, model and trim before ordering.

What tire size fits the K1019T?

The specifications list a 33-inch tire size for this kit. Check the tire diameter and the clearance on your own truck before buying tires.

Do older full-size trucks need brake line and steering checks after a lift?

Yes. A lift can stretch brake hoses and change steering geometry, so inspect the lines for tension and recheck alignment after installation. Look for worn tie rod ends and ball joints during the first service.
