Overview
The Pro Comp 6 Inch Lift Kit with Pro Runner Shocks, part number K1087BP, is a crossmember and knuckle lift for 3500 HD Chevrolet and GMC trucks. The front lift uses a heavy-duty, laser-cut crossmember and steering knuckles that Pro Comp describes as quarter-inch thick, and the rear uses lift blocks and U-bolts.
Installation does not involve welding, drilling or cutting the differential. Clearance covers 35-inch tires with no trimming. This version uses Pro Runner front and rear shocks in place of the ES9000 units in the K1087B kit. The lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 lift
- Front and rear crossmembers
- Steering knuckles
- Extended brake lines
- Lift blocks with U-bolt kit
- Pro Runner front and rear shocks
- Clearance for 35-inch tires with no trimming
Shock and ride height balance
Shocks and ride height work together on a lifted truck. A taller stance shifts the shock through a different range of travel, so the damping feel changes as the truck moves over bumps and through turns. Matching shock length to the finished ride height keeps the suspension working as intended.
Front and rear shocks should be replaced as a pair when one wears out, so the handling stays balanced from end to end. Inspect the mounting eyes and bushings at the same time, and keep the shock boots in good shape to protect the shaft from dirt and water on trail runs.
- Measure ride height after the install
- Inspect eye mounts and bushings at service
- Keep dust boots intact on trail trucks
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1087BP |
| UPC | 70000702752 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Rear lift | Lift blocks and U-bolts |
| Shocks | Pro Runner, front and rear |
| Color | Black |
| Fitment | Direct fit |
Vehicle fitment
Verify your truck’s year, model and trim before ordering. The kit is built for 3500 HD Chevrolet and GMC trucks.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The crossmember and knuckle design replaces factory front components, so have the alignment and driveline angles checked after installation.

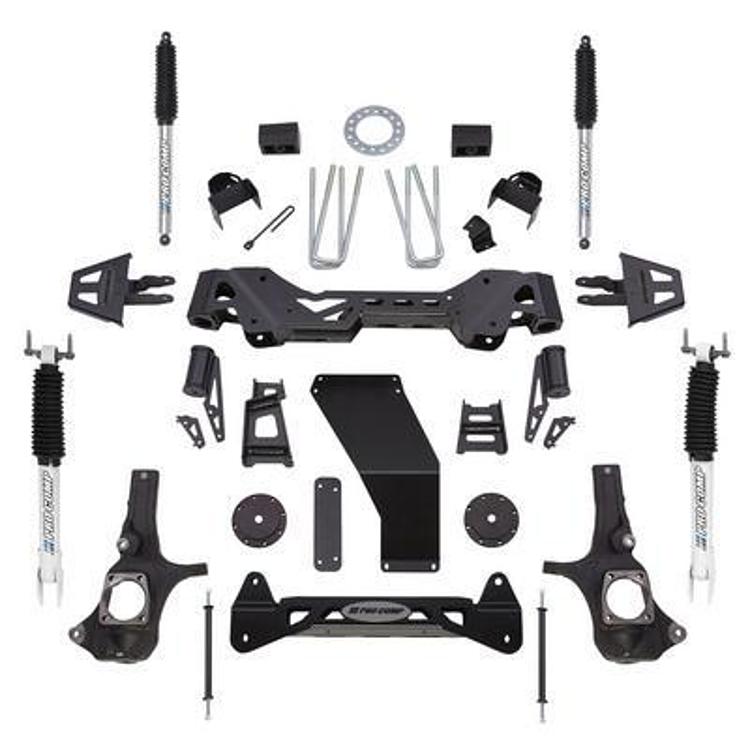

What’s included
The kit includes the front crossmembers, steering knuckles, extended brake lines, lift blocks with a U-bolt kit, and Pro Runner front and rear shocks.
