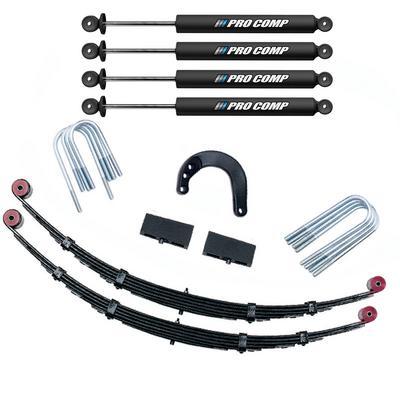

Pro Comp 4″ Stage I Lift Kit with PRO-X Shocks – K1059T

Pro Comp Suspension

Shop Chevrolet K20 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1976–1986 Chevrolet K20 and GMC K25 and K2500 trucks, plus select Suburbans
  • Stage 1 kit with a block and spacer rear lift
  • ES3000 front and rear shocks included
  • Listed tire size 33 in

Description

Overview

The K1059T is a stage 1 lift kit with a block and spacer rear lift and ES3000 front and rear shocks. It is built for 1976–1986 Chevrolet K20 and GMC K25 and K2500 trucks, plus several Suburban models of the same era.

The stage 1 lift is 2.5 inches, with a lift height range of 0 to 3.5 inches. Check the lift height for your application before choosing a tire size.

The kit uses ES3000 shocks at both the front and rear, and the tire size is 33 inches.

Key features

  • Stage 1 lift kit
  • Block and spacer rear lift method
  • ES3000 front and rear shocks included
  • Listed lift height range of 0 to 3.5 inches
  • Listed tire size of 33 inches

Block and spacer lifts

A block and spacer lift raises the rear of the truck by adding spacers between the axle and the springs, so the factory springs stay in place. That makes it simpler than a full suspension swap, but it still changes the geometry. Pinion angle, driveline length and brake line length should be reviewed after the lift is installed.

Because the lift is only part of the setup, the shocks, bump stops and tire size all work together. Shocks that are too short for the new height can limit travel. Check the shock labels on arrival, and look for wear on the spacers and U-bolts during routine service.

  • Check pinion angle after installation
  • Re-torque U-bolts after the first drives
  • Look for rubbing at the tire and fender
  • Inspect spacers for cracks or wear

Specifications

Brand Pro Comp Suspension
Part number K1059T
Suspension type Lift kit
Lift 2.5 in stage 1
Lift height range 0 to 3.5 in
Rear lift method Block and spacer
Front shocks ES3000
Rear shocks ES3000
Shocks included Yes
Tire size 33 in

Vehicle fitment

The kit fits the 1976–1986 Chevrolet K20 and its Suburban, the 1976–1978 and 1979–1986 GMC K25 and K2500 and their Suburbans, and the 1986 GMC C2500 Suburban. Trucks from 1987 onward are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A block and spacer lift changes ride height and suspension angles, so have the alignment and driveline angles checked after installation.

What’s included

The stage 1 lift kit with ES3000 front and rear shocks.

SKU: EXPK1059T Categories: ,

Fitment

VehicleYearsTrims
Chevrolet K201976–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K20 Suburban1976–1986Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
GMC C2500 Suburban1986Sierra Classic
GMC K251976–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K25 Suburban1976–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K25001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K2500 Suburban1979–1986Base, High Sierra, Sierra Classic, Sierra Grande

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the Pro Comp K1059T a 4-inch lift?

The kit is a stage 1 lift of 2.5 inches, with a lift height range of 0 to 3.5 inches. Confirm the lift height for your application before choosing a tire size.

Does the K1059T include shocks?

Yes. The kit includes ES3000 shocks at the front and rear, so shocks are supplied with the lift. Check the shock labels on arrival to confirm the series before installing them.

Does the K1059T come with PRO-X shocks?

The shocks supplied are ES3000 at both the front and rear. Check the shock labels on arrival to confirm the series before installing.

Which trucks does the K1059T fit?

Pro Comp lists 1976–1986 Chevrolet K20 and GMC K25 and K2500 trucks, plus some Suburban models. Confirm your vehicle's year, model and trim before ordering.

How often should block and spacer hardware be checked?

Check the U-bolts and spacer bolts after the first few drives, then at each service. Look for loose hardware, cracks in the spacers and signs of wear at the axle. Tightening after the first few drives helps the lift settle and stay secure.
