Overview
The Pro Comp K5080M is a 6-inch stage 1 suspension lift for the 2012–2015 Toyota Tacoma. It includes PRO-M front and rear shocks, and the lift height range is 6 to 7 inches.
The rear lift is a block/spacer design made from block and U-bolt parts with add-a-leaf hardware. The kit fits the Base, Pre Runner, TRD Pro and X-Runner versions of the 2012–2015 Tacoma. Its lift parts are the rear block and U-bolt components only.
Key features
- 6-inch stage 1 lift for the 2012–2015 Tacoma

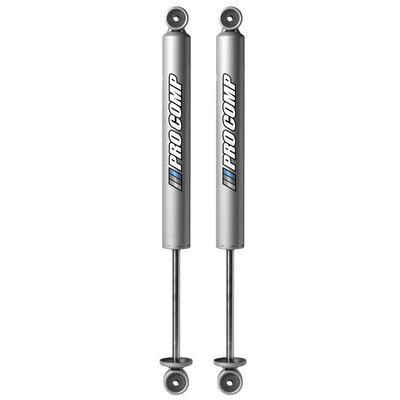

- PRO-M front shocks and PRO-M rear shocks, included
- Block and U-bolt rear lift components with add-a-leaf hardware
- Lift height range of 6 to 7 inches
- Covers the TRD Pro version for these model years.
Rear suspension after a lift
The rear of a Tacoma with a block and U-bolt lift relies on add-a-leaf hardware to keep the axle located and the leaf pack seated. Once the rear is raised, the driveshaft angle changes, and that shift can add vibration at highway speed if the angle gets too steep. Checking the U-bolt torque and leaf pack alignment during installation helps avoid premature wear.
Bump stops and rear shock length should be checked after the lift, because the rear can sit differently under load. Inspect the brake lines and parking brake cable for stretch as the rear moves through its travel.
- Recheck U-bolt nuts after the first few drives
- Look for rubbing on the driveline and crossmember
- Inspect the leaf pack for shifting or cracks
- Verify rear shocks clear the spring perches
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5080M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-M |
| Rear shocks | PRO-M, included |
| Rear lift method | Block/spacer with block and U-bolt and add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2012–2015 Toyota Tacoma in Base, Pre Runner, TRD Pro and X-Runner versions.
It does not fit the 2011 and older Tacoma, the 2016 and newer Tacoma, the 4Runner or the Tundra. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Lifting a Tacoma changes the driveline angles and the front alignment, so check both after installation. Because the rear uses add-a-leaf parts, look at the rear suspension and the driveline clearance once the lift is complete.
What’s included

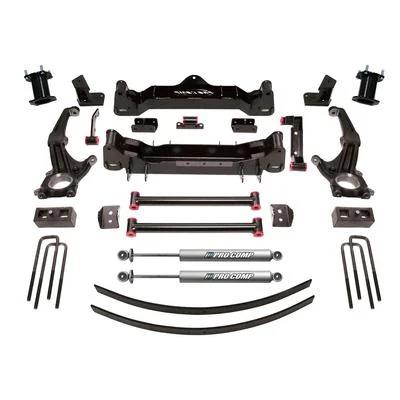

PRO-M front and rear shocks, and the block and U-bolt rear lift components with add-a-leaf hardware.
