Overview
The Pro Comp K3065 is a 2.5-inch stage 1 leaf spring lift for the Jeep CJ5 and CJ7. It fits 1982–1983 CJ5 models and 1982–1986 CJ7 models in the Base, Laredo, Limited and Renegade trims.
The front uses leaf springs and the rear uses springs and U-bolts. ES3000 shocks are used at both ends, and the shock boots are not included. The specifications mark the kit as a rear position part, and it suits wheels 15 inches or larger with a width of 8 to 12 inches.
Key features
- 2.5-inch lift, stage 1
- Front leaf springs and rear springs with U-bolts
- ES3000 front and rear shocks
- Shock boots not included
- Wheel size 15 inches or larger
- Backspace range 3.25 to 4.5 inches
Shock boots and shock life
Shock boots cover the exposed shaft and seal, keeping dust, mud and grit away from the seal where leaks often start. Without boots, the shaft wears faster on trail use, and the seal may fail sooner. Adding boots is a simple way to protect the shocks after a lift, especially on a truck that sees rough ground.
Because the springs change the ride height, the shocks work at a different angle and travel distance than before. Inspect them when the lift is installed, looking for oil on the body, uneven wear and a bouncy ride. Replacing shocks in pairs keeps the truck balanced from side to side.
- Choose boots sized to the shock body
- Inspect shock eyelet bushings at each service
- Check for oil on the shaft after washing the truck
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3065 |
| UPC | 614901123166 |
| Lift | 2.5 inches, stage 1 |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | Springs and U-bolts |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
| Position | Rear |
| Max tire size | 32×11.50 |
| Wheel size range | 15 inches or larger |
| Wheel width range | 8 to 12 inches |
| Min-max backspace | 3.25 to 4.5 inches |
Vehicle fitment
It fits 1982–1983 Jeep CJ5 and 1982–1986 Jeep CJ7 models. Other CJ generations and later Wrangler models are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Leaf spring lifts change the rear axle location and pinion angle, so check the driveline angles after installation and re-check the U-bolts once the truck has been driven.

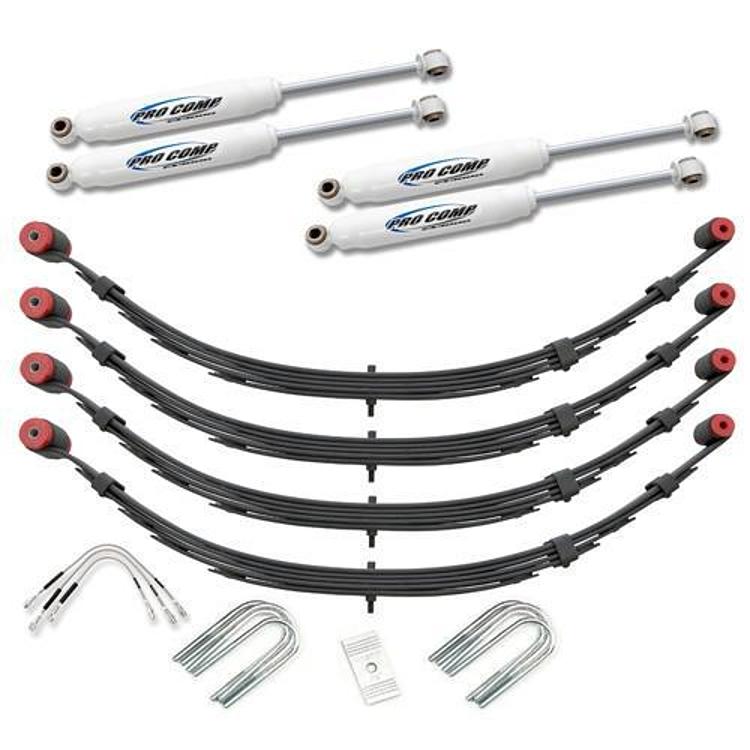

What’s included
The kit includes front leaf springs, rear springs and U-bolts, and ES3000 front and rear shocks. Shock boots are not included.
