Overview
The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK4055T (kit K4055T), is a stage 1 suspension lift for 1990 to 1996 Ford Bronco and F-150 trucks, and for the 1993 to 1995 F-150 Lightning.
The kit lifts the vehicle 4 inches at stage 1 with a listed lift height range of 4 to 5.5 inches. Rear lift comes from a block or spacer paired with a block and U-bolt component. PRO-X shocks are included, with PRO-X listed at both the front and the rear.
Key features
- 4-inch stage 1 suspension lift
- PRO-X shocks at the front and rear, included
- Block or spacer rear lift with a block and U-bolt component
- Lift height range of 4 to 5.5 inches
Block rear and alignment checks
A block or spacer rear is a simple way to raise the back of a Bronco or F-150, but it moves the axle relative to the frame and changes the pinion angle. That shift matters most when the truck is driven hard on washboard roads or at highway speed. Brake lines and the parking brake cable may also need a look, since their lengths change as the axle moves.
After each install, check the rear for uneven height side to side and make sure the axle has not rotated. Over time, block and U-bolt setups can loosen, so a short inspection after the first few hundred miles is a reasonable habit. Replace any U-bolt that shows stretching, rust or damaged threads.
- Confirm both sides of the axle sit level
- Check brake hoses for tension
- Retorque U-bolts after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4055T |
| Kit code | K4055T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It is a direct fit for the 1990 to 1996 Ford Bronco, the 1990 to 1996 Ford F-150 and the 1993 to 1995 F-150 Lightning, in the trims named in the overview.
The list does not include the 1989 and earlier Bronco or F-150, or the 1997 and newer models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear block and U-bolt setup changes the rear height, so measure front and rear heights after installation and have the alignment checked.
What’s included

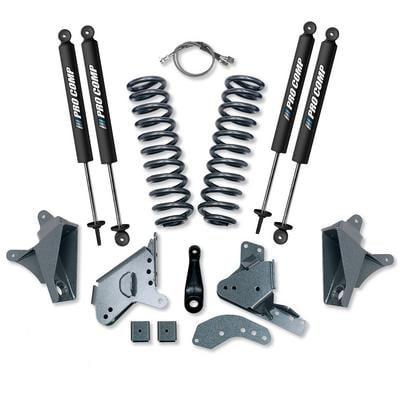

Four-inch stage 1 lift hardware with PRO-X front and rear shocks.
