Pro Comp 6 Inch Lift Kit with ES9000 Shocks – K4144B

Pro Comp Suspension

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 6-inch Stage 1 kit for the 2009–2014 Ford F-150
  • Front crossmembers, steering knuckles and front sway bar spacers
  • Impact struts, rear crossmember and brake line extension brackets
  • Rear block and U-bolt kit

Description

Overview

The Pro Comp K4144B is a 6-inch Stage 1 lift kit with ES9000 shocks for the 2009–2014 Ford F-150. Front crossmembers and steering knuckles set the front height, impact struts and a rear crossmember complete the front structure, and a rear block and U-bolt kit lifts the back.

Front shocks are re-used OEM units. Confirm the shock package before ordering if ES9000 shocks are expected. No steering correction is needed, and brake line extension brackets are included for the raised front brake lines.

Key features

  • 6-inch lift height
  • Front crossmembers and steering knuckles
  • Impact struts
  • Front sway bar spacers
  • Rear crossmember and brake line extension brackets
  • Rear block and U-bolt kit

Rear lift and brake lines

A block and U-bolt rear lift raises the axle on the existing springs, so the rear sits higher without changing the spring rate. That height change alters the pinion angle, and vibration after the install is often the first sign to check it. U-bolt nuts should be snugged after the first drives, then checked again at each service.

Brake hoses at the front and rear carry more travel once the body rides higher. Look for hoses that rub on the tire, spring or frame, and replace any that show cracks or bulges. Extension brackets help hoses reach the raised components, but they still need a visual check after installation.

Pairing the rear block with a front crossmember lift means the whole truck should be aligned and the driveline checked together. Front sway bar spacers and impact struts should also get a look at the same visit, since they carry load on the raised geometry. Keep a record of what was changed so future repairs are simpler.

Specifications

Brand Pro Comp Suspension
Part number K4144B
UPC 614901206616
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 1
Suspension type Knuckle
Front control Crossmembers, steering knuckles and impact struts
Steering correction None required
Rear lift Block and U-bolt kit
Front shocks Re-use OEM (the product name cites ES9000 shocks)

Vehicle fitment

This kit fits the 2009–2014 Ford F-150, in the FX2, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT versions.

The list runs from the 2009 through 2014 model years, so earlier F-150 trucks and the 2015 and newer generation are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The front geometry changes with the crossmembers and knuckles, so have the alignment and driveline angles checked after the lift is installed.

What’s included

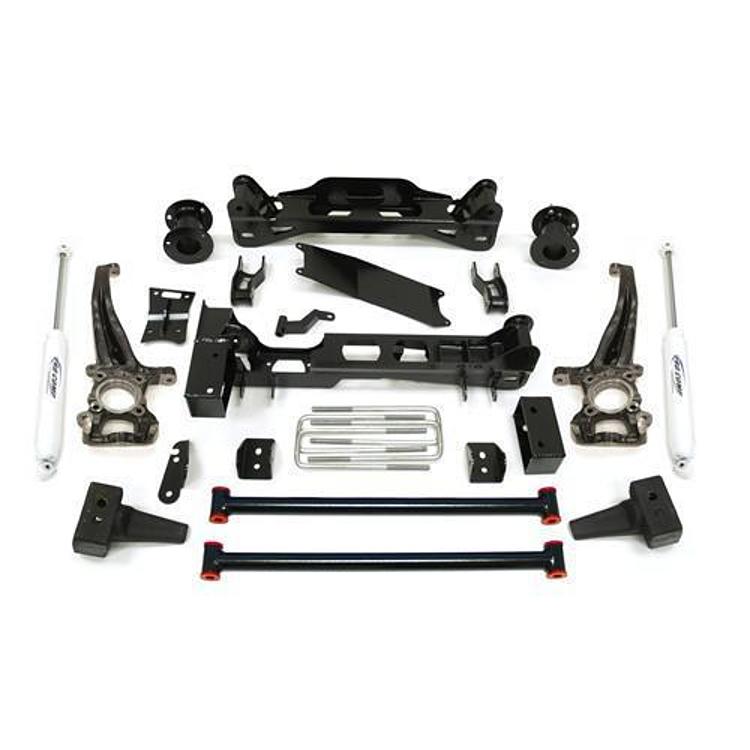

The kit includes front crossmembers, steering knuckles, impact struts, front sway bar spacers, a rear crossmember, brake line extension brackets, and the rear block and U-bolt kit.

SKU: EXPK4144B Category:

Specification

Shipping weight 232.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502009–2014FX2, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K4144B fit a 2015 F-150?

No. It fits the 2009 through 2014 Ford F-150 only. A 2015 or newer truck is outside that coverage, so check the year before ordering.

Which shocks come with the K4144B?

The front shocks are re-used OEM units, so the factory front shocks stay on the truck. Check the shock package before ordering to make sure it matches what you expect.

Does this kit need a steering correction?

No. No steering correction is needed for this kit, and the front end is set by the crossmembers and knuckles. Front alignment is still needed after installation.

Can the rear block lift be adjusted later?

The block sets a fixed height, so changing the rear height usually means replacing the block or the U-bolts rather than adjusting them. Any change to the rear lift should be followed by a driveline and brake hose check.
