Overview

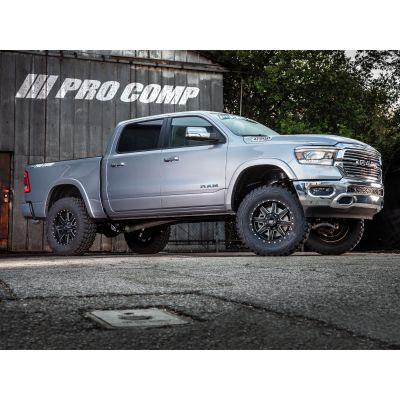

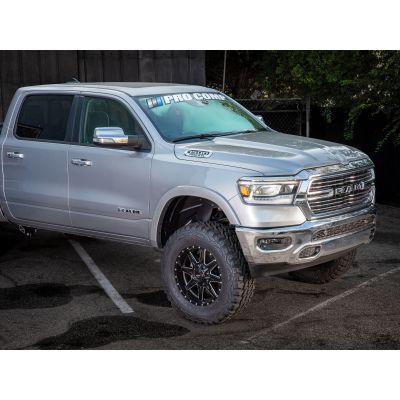

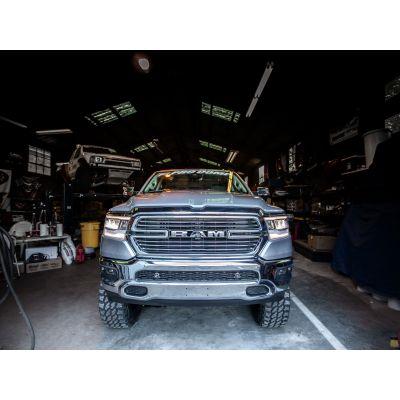

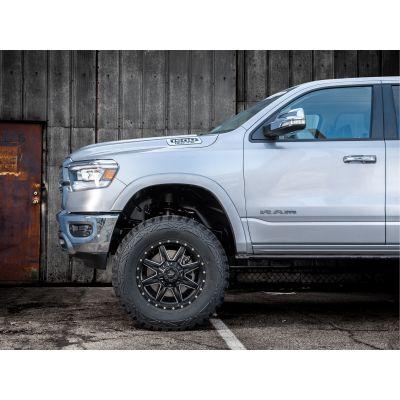

The K2104B is a 6-inch stage 1 suspension system for the 2019–2020 Ram 1500 with ES9000 rear shocks. The rear uses a spacer as the lift component, and the lift height range is 6 to 7 inches.
The specifications say the front factory shocks are reused rather than replaced. Pro Comp’s description says its 2019 Ram 1500 knuckle improves steering geometry, reduces weight and improves turning radius over the earlier generation system, and that the matching crossmembers, diff drops and sway bar drops help keep OEM operating angles on critical components.
Key features

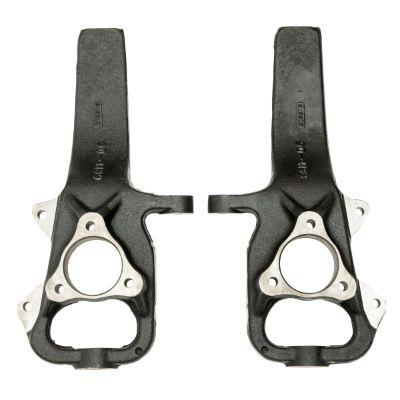

- Pro Comp-engineered knuckle for the 2019 Ram 1500 platform

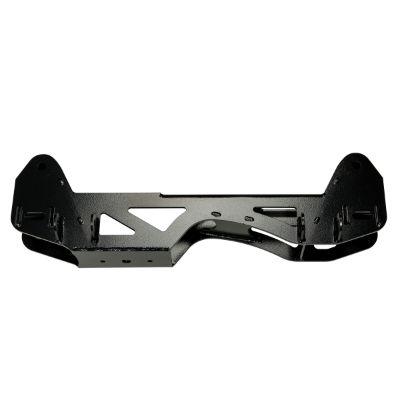

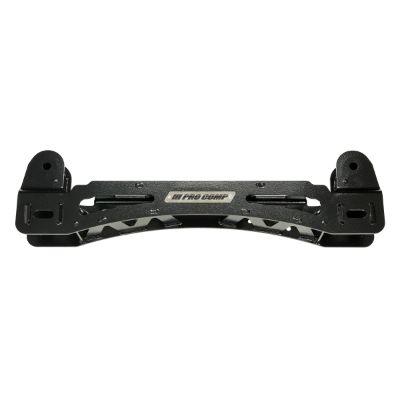

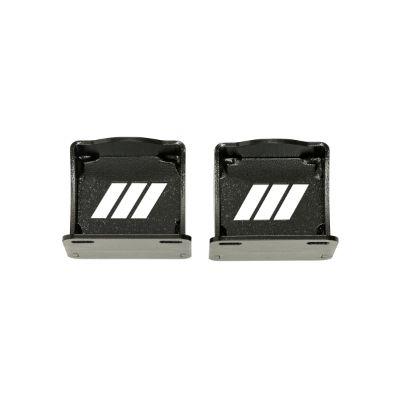

- Crossmembers, diff drops and sway bar drops that Pro Comp says keep OEM operating angles

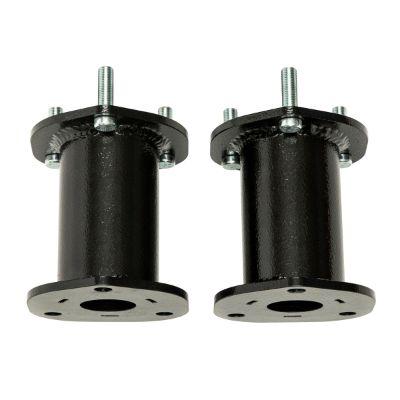

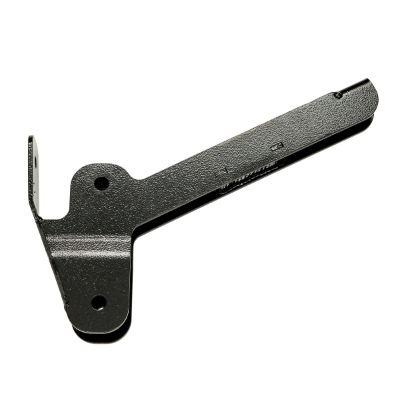

- Rear geometry correction brackets and coil spacers that Pro Comp says keep the factory load-carrying capacity

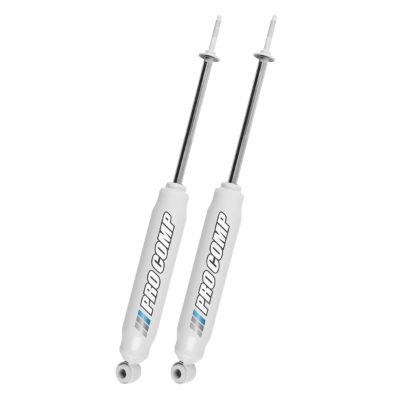

- ES9000 rear shocks
- Compatible with the factory stability control system.

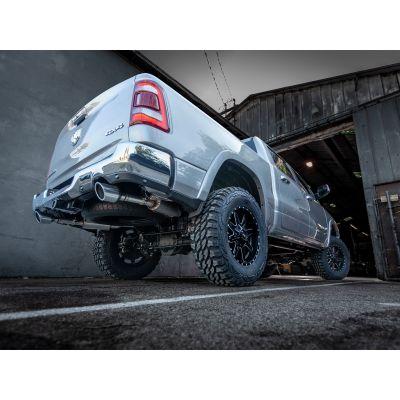

Rear spacer lift notes
A spacer raises the rear of the truck without changing the leaf or coil geometry at the axle, so the rear suspension moves through a different range than before. Shock length matters here, because a rear shock set for a new height can reach its travel limit sooner. Check the rear shocks for smooth extension and compression once the truck is back on its tires.
Spacers can also change how the rear brake lines and the parking brake cable sit at full droop, so look them over for stretch or contact. Driveline angles should be checked at the rear pinion, since a higher axle can strain the U-joints over time. Load capacity is a real concern, so think about the cargo and towing you do before adding weight to the rear.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2104B |
| Suspension type | Lift kit, 6-inch stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Rear shocks | ES9000 |
| Rear lift component | Spacer |
| Front shocks | Factory shocks reused |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2019–2020 Ram 1500 in the Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Special Service and Tradesman versions.
The fit ends at 2020, leaving 2021 and newer Ram 1500 models and all Ram 2500 and 3500 trucks outside it. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Because the front factory shocks are kept, the front ride height and damping come from the factory units, and the rear spacer changes the rear height, so check the alignment and driveline angles after installation.

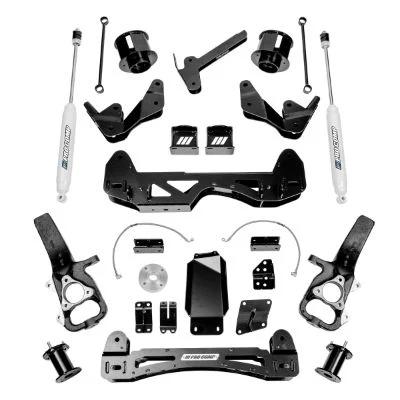

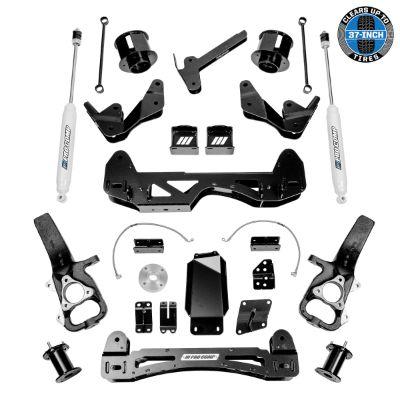

What’s included
The rear spacer raises the rear ride height, so after installation check the driveline angles and alignment. The front factory shocks stay in place.
