Pro Comp 2.5″ Lift Kit with VST 2.5″ Coilovers, Shocks and Upper Control Arms – K1178BXU

Pro Comp Suspension

Shop GMC Sierra 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch Pro Comp lift with VST 2.5-inch coilovers, shocks and upper control arms
  • Built for 35-inch tires on 17-inch wheels
  • Fits 2007-2016 Silverado 1500 and Sierra 1500

Description

Overview

The Pro Comp 2.5-inch Lift Kit with VST 2.5-inch Coilovers, Shocks and Upper Control Arms, part number K1178BXU (EXPK1178BXU), is a lift kit for the 2007 to 2016 Chevrolet Silverado 1500 and GMC Sierra 1500. It provides a 2.5-inch lift and is built around VST coilovers and shocks with upper control arms.

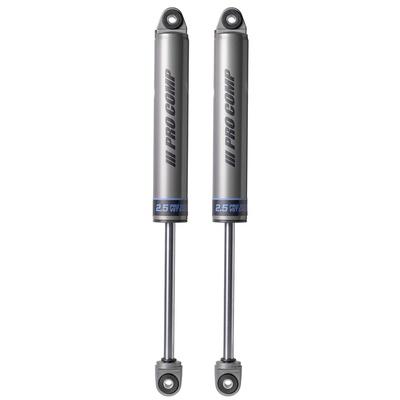

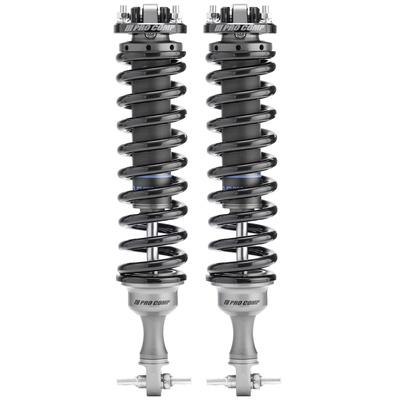

The PRO-VST coilover system replaces the factory springs and shocks with performance-oriented coilovers. It is tuned for 17-inch wheels paired with 35-inch tires, and it improves travel and rebound and corrects geometry for larger wheels and tires without cutting the truck’s body.

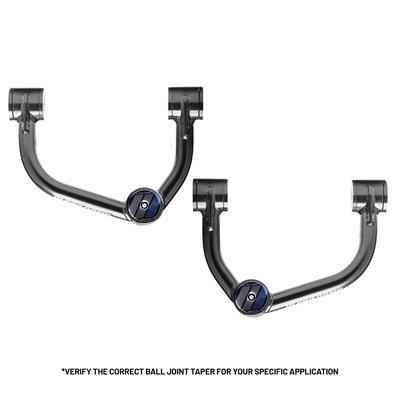

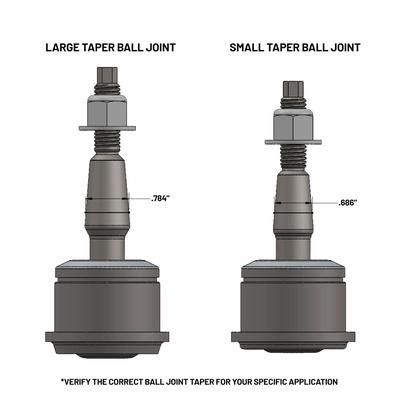

The upper control arms are Pro Series arms with high-angle ball joints, made in America. The coilover setup adds off-road capability without giving up highway ride quality. The kit is a direct fit.

Key features

  • 2.5-inch lift
  • VST 2.5-inch coilovers
  • Upper control arms included
  • Pro Series arms with high-angle ball joints
  • Tuned for 17-inch wheels and 35-inch tires
  • Direct fit installation

Pairing coilovers with larger tires

Larger tires change how the suspension and driveline work together. Taller sidewalls and heavier rotating mass add load to the brakes and steering, and they can change how the truck settles on its springs. A coilover lift is meant to keep the geometry balanced at that size, so keeping tire size and wheel width consistent with the setup matters.

Tire pressure and tread wear should be checked more often after a size change. Uneven wear often points to alignment or suspension issues rather than the tire itself. Inspect the upper control arms for bushing wear and check the ball joints for play, since these parts carry the load of the new geometry.

  • Check tire pressure more often after a size change
  • Look for uneven wear as an alignment signal
  • Inspect ball joints for play
  • Confirm brake pad and rotor condition

Specifications

Brand Pro Comp Suspension
Part number EXPK1178BXU (title K1178BXU)
Suspension type Lift kit
Lift 2.5 inches (title)
Coilovers 2.5-inch VST
Tire size 35 inch
Wheel size 17 inch
Fitment Direct fit

Vehicle fitment

It fits the 2007-2016 Chevrolet Silverado 1500 and the 2007-2016 GMC Sierra 1500. Models from 2017 and later are not covered.

The list covers the 1500 models only, so 2017 and later trucks are not on it. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Plan a wheel alignment and check the driveline angles after installation. A coilover lift changes suspension height and geometry, so both checks are needed.

What’s included

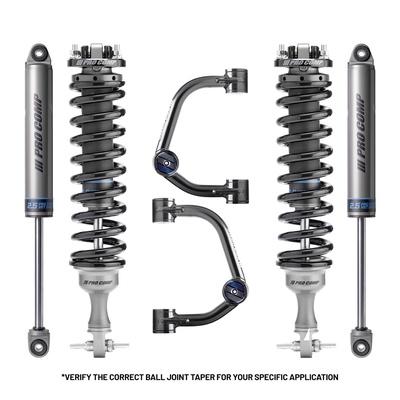

The kit includes the lift kit with VST coilovers, shocks and upper control arms. Confirm the hardware contents against your installation before starting.

SKU: EXPK1178BXU Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2016Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT, XFE
GMC Sierra 15002007–2016Base, Denali, Hybrid, SL, SLE, SLT, WT, XFE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1178BXU fit a 2016 Silverado 1500?

Yes. The fit covers the 2007 to 2016 Silverado 1500, so a 2016 model is in range. Confirm the exact model before ordering, since 2500 and 3500 models are not covered.

How big is the lift on the K1178BXU?

The lift is 2.5 inches. The kit pairs 2.5-inch VST coilovers with upper control arms and shocks, which raises the truck to that height. Confirm your vehicle's year, model and trim before ordering.

Does the K1178BXU include upper control arms?

Yes. The kit includes upper control arms. They are Pro Series arms with high-angle ball joints and are made in America.

Is the K1178BXU meant for 35-inch tires?

Yes. The VST system is tuned for 17-inch wheels paired with 35-inch tires. Check your wheel and tire size before ordering.

Do larger tires need a brake check?

Yes. Bigger tires add rotating mass and change the leverage the brakes work against. Inspect pads and rotors after installation, and recheck them after the first few drives on the new size.

What should I look for in upper control arm bushings?

Look for cracking, splitting or a loose feel at the mounting points. Worn bushings can change alignment and let the wheel move under braking. Replace worn bushings as a set so the suspension stays balanced side to side.
