Pro Comp 6″ Stage II Lift Kit with PRO-X Shocks – K4180T

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2011–2016 Ford F-350 Super Duty.
  • Laser-cut brackets and a drop pitman arm
  • Specific-rate coil springs for ride height
  • Replacement radius arms of 4130 chromoly tubing
  • Part number EXPK4180T (K4180T)

Description

Overview

The Pro Comp EXPK4180T, also written K4180T, is a 6-inch Stage II lift kit for the 2011–2016 Ford F-350 Super Duty. It uses specific-rate coil springs and replacement radius arms to raise the truck, and it is a direct fit for those trucks.

The F-350 kit shares its design with the F-250 Stage II systems: laser-cut brackets and a drop pitman arm keep steering and suspension geometry in line, and the arms are built from 4130 chromoly tubing with 3/16-inch steel plate.

Key features

  • Laser-cut brackets for the suspension mounts
  • Drop pitman arm, which Pro Comp says keeps steering geometry correct
  • Specific-rate coil springs that raise ride height
  • Stage II replacement radius arms of 4130 chromoly tubing and 3/16-inch steel plate
  • Direct fit to the listed 2011–2016 F-350 Super Duty

Choosing the right setup

A coil spring lift changes how the truck sits and rides, so it helps to decide early whether the goal is a level stance, extra tire clearance, or simply more height for a larger tire. Coil springs and radius arms are usually installed together, because the arms set the axle position that the springs rely on.

Before buying, look at the rest of the truck: brake lines, steering components and the driveshaft often need attention when the ride height goes up. Many owners also replace the factory shocks at the same time, so the new springs and the damping work at the same height. Worn bushings and ball joints are easier to replace during the install than afterward.

If the truck will see frequent towing or hard off-road use, plan earlier inspections of the springs, arms and brackets. Heavier use shortens the interval between checks.

Specifications

Brand Pro Comp Suspension
Part number EXPK4180T (K4180T)
Kit type Lift kit, complete suspension system
Kit stage Stage 2
Radius arms Replacement, 4130 chromoly tubing with 3/16-inch steel plate
Springs Specific-rate coil springs
Fitment type Direct fit

Vehicle fitment

The kit fits the 2011–2016 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims.

The F-250 Super Duty and trucks from 2017 onward are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the Stage II arms replace factory parts, a full alignment and a check of the steering geometry are needed after installation.

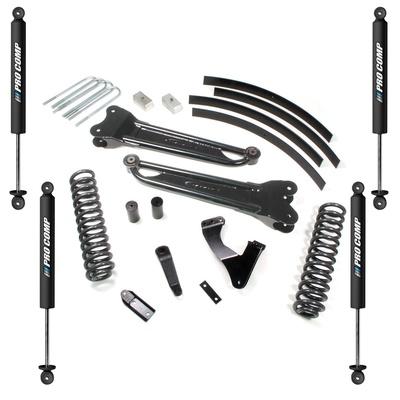

What’s included

Coil springs, radius arms, brackets and a drop pitman arm make up this Stage II system. Check the package contents against your installation before starting, including whether shocks are part of your order.

SKU: EXPK4180T Categories: ,

Fitment

VehicleYearsTrims
Ford F-350 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK4180T fit a 2013 Ford F-350 Super Duty?

Yes. The kit is for the 2011–2016 Ford F-350 Super Duty, which includes 2013 trucks in the King Ranch, Lariat, Platinum, XL and XLT trims. Confirm fit for your vehicle's year, model and trim before ordering.

Are shocks included with this kit?

The kit covers springs, radius arms and brackets. Check the package contents against your installation before starting, including whether shocks are part of your order.

What material are the radius arms made from?

The Stage II radius arms are made from 4130 chromoly tubing with 3/16-inch steel plate. They replace the factory arms as part of the system.

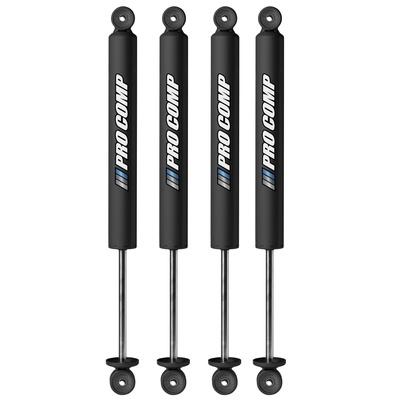

Do coil spring lifts need new shocks?

Not always, but it is worth checking. Shocks sized for the stock ride height may be at their limit once the springs raise the truck. Inspect the shock length and action, and replace any that leak or feel weak before the new springs go in.
