Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K1173B

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch strut lift for GM 1500 trucks

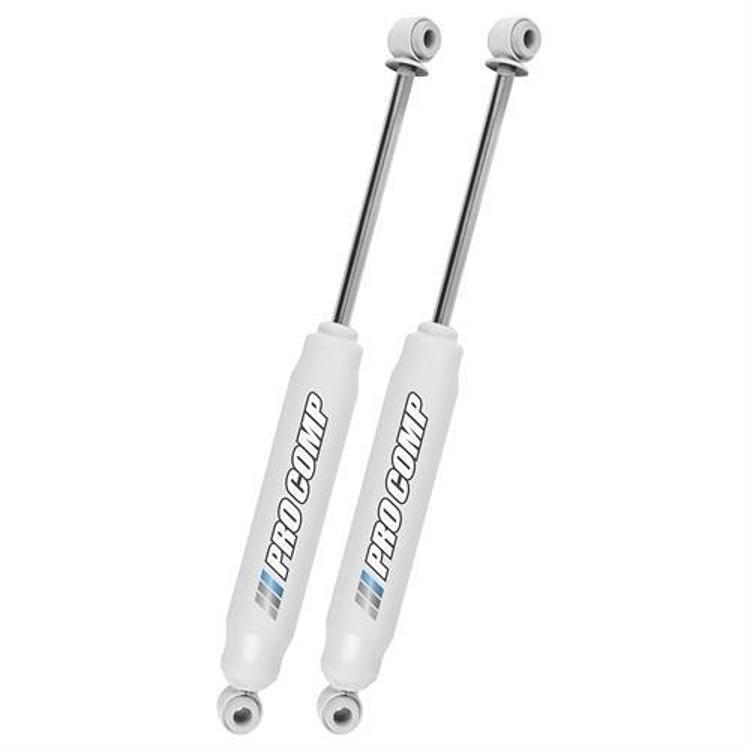

  • Front strut spacer and rear ES9000 shocks
  • Built for 2WD and 4WD gas-engine models
  • Part number K1173B

Description

Overview

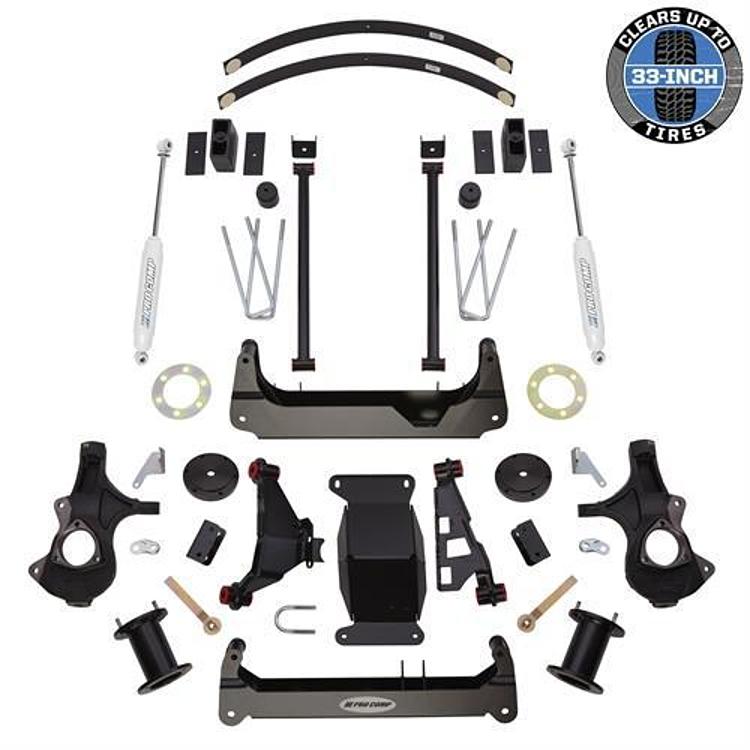

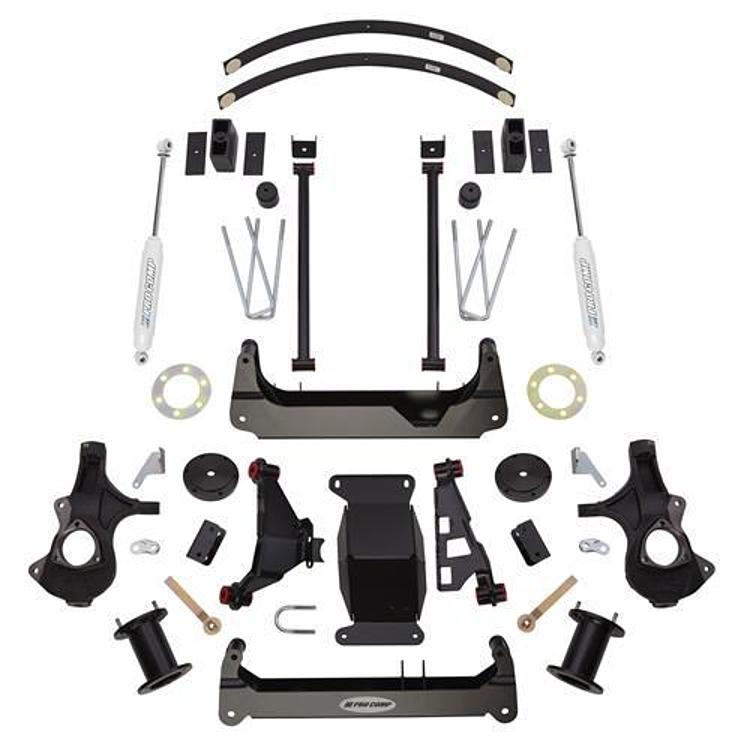

The Pro Comp 4 Inch Lift Kit with ES9000 Shocks, part number K1173B, is a 4-inch strut lift for GM 1500 pickup trucks. It is built for 2WD and 4WD models with a gas engine. The kit uses a front strut spacer and rear ES9000 shocks.

The kit works on GM 1500 trucks with either aluminum or stamped steel control arms. Confirm the year and model of your truck before installing.

The lift height range is 3 to 4.99 inches, and the rear lift method is none.

GM 1500 trucks built before April 1, 2016 had cast steel or aluminum control arms, while later trucks use stamped steel upper and lower arms. The kit is made to work with either the aluminum or the stamped steel arms, so arm type alone does not decide whether it can be installed.

Key features

  • 4-inch lift, stage 1

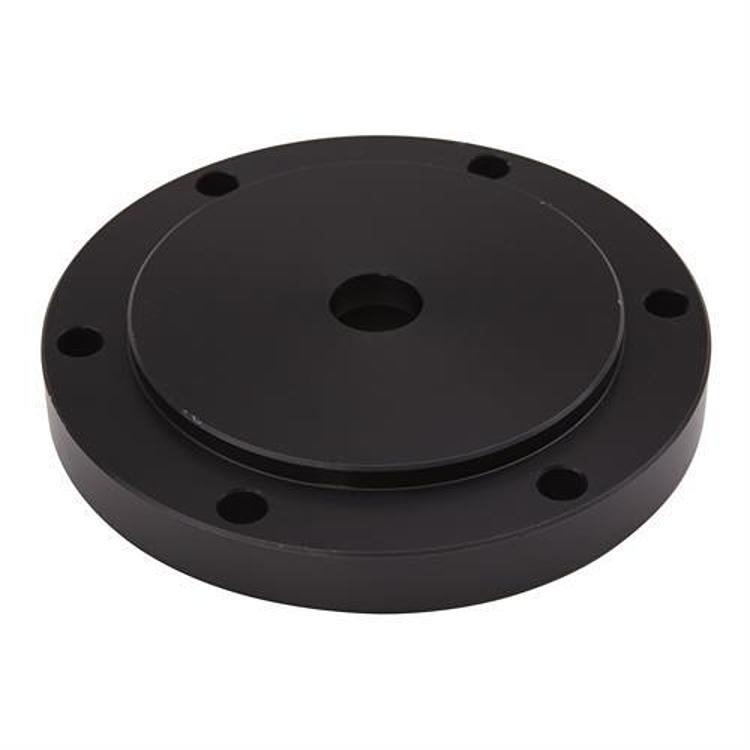

  • Front strut spacer
  • Rear ES9000 shocks
  • Works with aluminum or stamped steel control arms on GM 1500 trucks
  • Built for 2WD and 4WD gas-engine models

Strut lift basics

A strut spacer raises the front of the truck by changing how the strut sits in its mount, which affects camber, caster and the steering geometry. Because of that, alignment is part of the install rather than an extra step. Strut mounts, upper bearings and the spring seat should be checked for wear before the spacer goes in, since they carry the load as the suspension moves.

Rear shock choice works together with the front lift. A rear shock needs to suit the raised ride height so it does not run out of travel or bind. Check shock length and mounting after installation, and recheck clearance around the tires and inner fender as the truck settles.

  • Inspect strut mounts and upper bearings before installing a spacer
  • Check rear shock length and mounting points
  • Schedule an alignment after the install
  • Look for leaks on the shock bodies after the first drives

Specifications

Brand Pro Comp Suspension
Part number K1173B
UPC 700007802451
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Strut
Rear shocks ES9000

Vehicle fitment

Fitment covers GM 1500 pickup trucks with a gas engine in 2WD or 4WD form.

Confirm the year, model and trim of your truck before ordering.

Installation notes

A strut lift changes front alignment and suspension geometry, so schedule an alignment after the install.

SKU: EXPK1173B Category:

Specification

Shipping weight 266.45 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Questions & Answers

Does the K1173B fit my 1500 pickup?

Yes, if your truck is a GM 1500 pickup with aluminum or stamped steel control arms. Confirm the year, model and trim of your truck before ordering.

Does the kit include shocks at the front?

The front shocks are not part of this kit. The package includes a front strut spacer and ES9000 shocks at the rear.

What is the lift height for the K1173B?

The lift height is 3 to 4.99 inches, and the kit itself is a 4-inch stage 1 lift. Confirm the year, model and trim of your truck before ordering.

Can a strut spacer be used with worn control arms?

Worn control arms should be replaced before adding a strut lift. Worn bushings and joints change alignment settings and can make the lift feel loose. Inspect them during the install and replace any that are cracked, torn or noisy.
