Overview
The Pro Comp 6-inch Lift Kit with PRO-M Shocks, part number EXPK1143M (kit K1143M), is a stage 1 suspension lift for 2007 to 2013 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups. It fits the Silverado in the Hybrid, LS, LT, LTZ, WT and XFE versions, and the Sierra in the Denali, Hybrid, SL, SLE, SLT, WT and XFE versions.
The kit is listed at 6 inches of stage 1 lift, with a lift height range of 6 to 7 inches. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. PRO-M shocks are listed at the front and the rear, and they are included.
Key features
- 6-inch stage 1 suspension lift

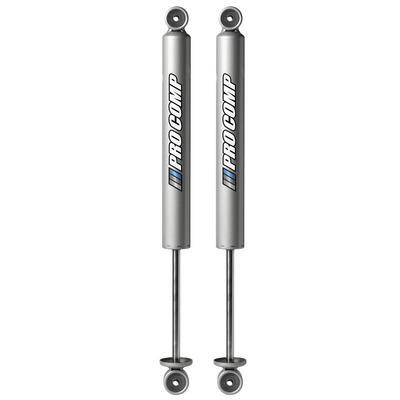

- PRO-M shocks at the front and rear, included
- Block and spacer rear with U-bolts and add-a-leafs
- Lift height range of 6 to 7 inches
Add-a-leaf rear on 1500 pickups
The 1500 pickups in this range have lighter frames and suspension than heavy-duty trucks, so rear work changes the balance of the truck more noticeably. Add-a-leafs and a block and U-bolt setup raise the rear, which changes driveline angles and the position of the rear axle relative to the frame. A driveline inspection and a ride height check at all four corners are useful after the install.
Inspect the front suspension too, since a higher rear can change how the front rides. Ball joints, control arm bushings and steering linkage should be checked for play. Tire choice, wheel offset and fender clearance should be verified at full steering lock. Keep records of the work so future service can be planned around the new setup.
- Measure ride height at all four corners
- Check driveline angle
- Inspect front ball joints and bushings
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1143M |
| Kit code | K1143M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches stage 1; range 6 to 7 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Front shocks | PRO-M |
| Rear shocks | PRO-M |
| Fit type | Direct fit |
Vehicle fitment
It is a direct fit for the 2007 to 2013 Chevrolet Silverado 1500 and GMC Sierra 1500 across the trim packages that apply.
The list does not include the 2006 and earlier or the 2014 and newer 1500 pickups. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The add-a-leaf rear raises the back of the truck, so measure the ride height at all four corners and check the driveline angle after installation.

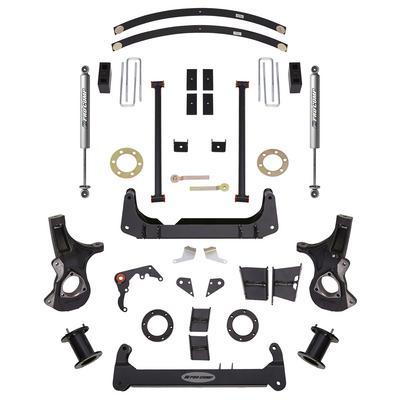

What’s included
The 6-inch stage 1 lift kit with PRO-M front and rear shocks and the block and U-bolt add-a-leaf rear components.
