Overview

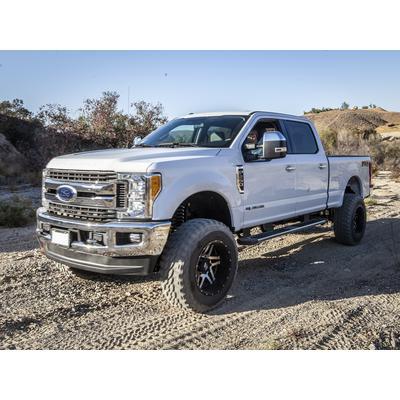

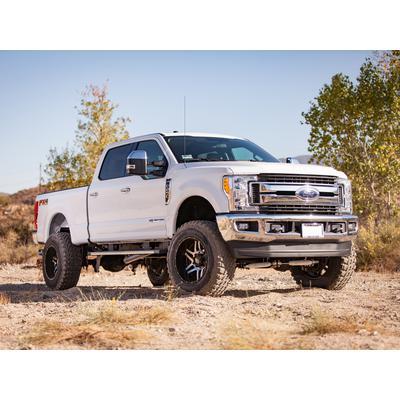

The Pro Comp 4-inch Stage I Lift Kit, part number EXPK4201 (kit K4201), is a stage 1 suspension lift for 2017 to 2022 Ford F-250 Super Duty and F-350 Super Duty trucks. It fits both models across the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
The kit gives 4 inches of stage 1 lift, with a lift height range of 4 to 5.5 inches. A block or spacer raises the rear, using a block and U-bolt component. Shocks are included with the kit; check the shock type on your package before installing.
Pro Comp describes its suspension systems as engineered to keep steering and suspension geometry correct, and to give tire clearance for off-road use. Those are the company’s general claims for the line.
Front end and driveline checks
A 4-inch stage 1 lift on a heavy-duty truck changes the geometry of the front end and the driveline. Steering components, tie rods and ball joints see different angles, so their wear can increase over time. Heavy-duty trucks often tow or carry loads, which makes these parts work harder than they would on a light-duty truck.
The rear block and U-bolt setup changes the pinion angle, which can show up as vibration at highway speed. Inspect the U-joints and the driveshaft for play, and look at the axle pinion for signs of rubbing or leaks. Tightening fasteners after the first drives keeps the lift stable, and a visual check of the brake lines helps avoid surprise wear.
- Check U-joints for play after installation
- Inspect brake lines for stretch at full droop
- Recheck steering components at regular service intervals
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4201 |
| Kit code | K4201 |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Block or spacer |

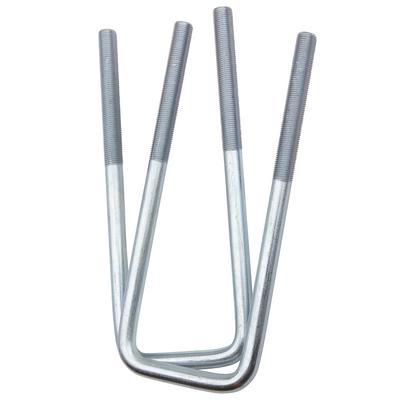

| Rear lift component | Block and U-bolt |
| Shocks included | Yes; shock series not listed |
| Fit type | Direct fit |
Vehicle fitment
The kit fits the 2017 to 2022 Ford F-250 Super Duty and F-350 Super Duty, across the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
The list does not include the 2016 and earlier Super Duty trucks or the 2023 and newer models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 4-inch lift on a Super Duty changes the front and rear geometry, so the alignment and driveline angles should be checked after installation.

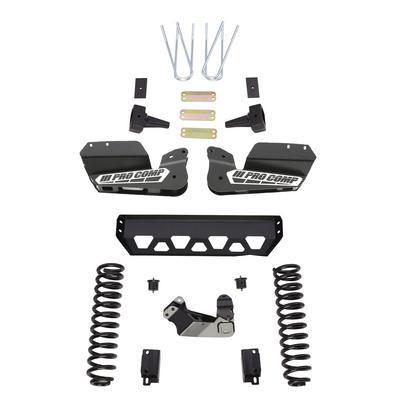

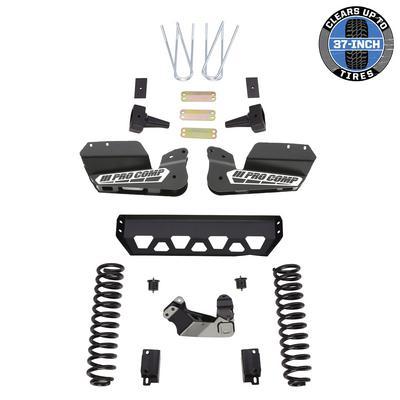

What’s included
The 4-inch stage 1 lift kit, which the specifications list as including shocks.
