Pro Comp 5 Inch Lift Kit with ES9000 Shocks – K2064B

Pro Comp Suspension

Shop Dodge Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch lift with metal coil spring spacers and control arm components
  • ES9000 front shocks, included
  • Pitman arm steering correction and front sway bar links
  • Fits 2003-2008 Dodge Ram 2500 and 3500

Description

Overview

The Pro Comp 5 Inch Lift Kit with ES9000 Shocks, part number K2064B, is a 5-inch spacer lift for the 2003-2008 Dodge Ram 2500 and 3500. The front uses metal coil spring spacers with upper and lower control arm components. The steering correction is a pitman arm, and the rear uses a block and U-bolt kit.

Front sway bar links and bump stop extensions are included, along with brake line extension brackets. ES9000 front shocks come with the kit. The lift height range is 5 to 6.99 inches.

Key features

  • 5-inch stage 1 lift
  • Metal coil spring spacers at the front
  • Upper and lower control arm components
  • Pitman arm steering correction
  • Front sway bar links
  • Bump stop extensions
  • Brake line extension brackets
  • ES9000 front shocks, included

Pitman arm and steering geometry

A pitman arm correction changes how steering force travels from the steering box to the front wheels. When paired with control arm components, the steering geometry moves, which can affect steering feel, centering and tire wear. Many owners replace the tie rod ends and drag link at the same time, since they wear faster once the front end is raised.

Metal coil spring spacers are a simple way to raise the front end, but they do not change the axle position on their own. Check the upper and lower control arm bushings for play after installation, and watch the steering wheel return to center. A steering damper or track bar check may be worth considering on heavier trucks.

  • Check tie rod ends and drag link for play
  • Inspect control arm bushings for wear
  • Confirm steering centers after alignment
  • Look for uneven front tire wear

Specifications

Brand Pro Comp Suspension
Part number K2064B
UPC 614901122800
Lift height 5 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Spacer
Front lift Metal coil spring spacers, upper and lower control arm components
Steering correction Pitman arm
Rear lift Block and U-bolt kit
Front shocks ES9000
Fitment Direct fit

Vehicle fitment

It is a direct fit for the 2003-2008 Dodge Ram 2500 and the 2003-2008 Dodge Ram 3500, in the Laramie, SLT, ST, SXT, Sport and TRX4 versions.

Ram 1500 trucks and Ram 2500 and 3500 model years outside 2003-2008 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The pitman arm correction and the control arm components change steering and suspension geometry, so have the steering and alignment checked after installation.

What’s included

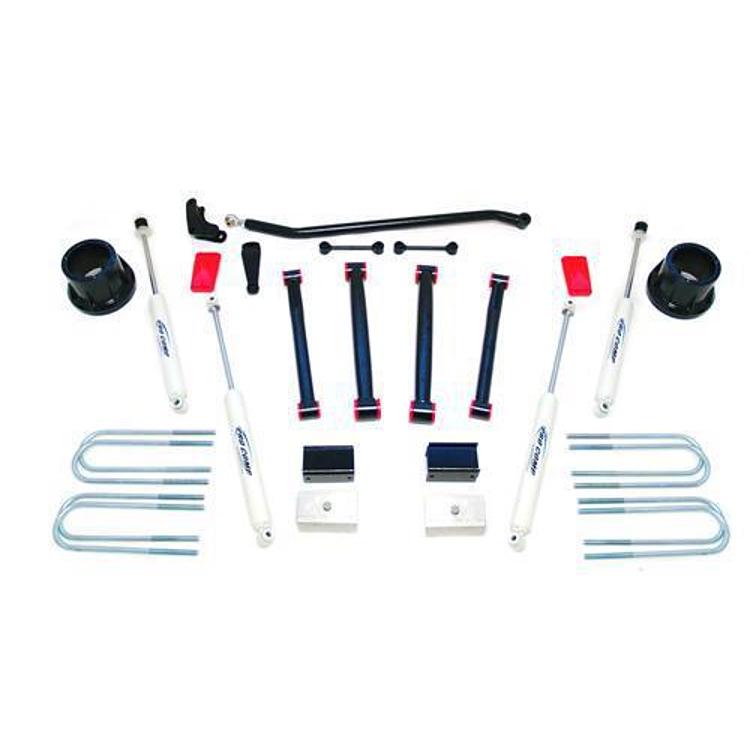

The kit includes metal coil spring spacers, control arm components, front sway bar links, bump stop extensions, a pitman arm steering correction, brake line extension brackets, a rear block and U-bolt kit, and ES9000 front shocks.

SKU: EXPK2064B Category:

Specification

Shipping weight 157.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 25002003–2008Laramie, SLT, ST, SXT, Sport, TRX4
Dodge Ram 35002003–2008Laramie, SLT, ST, SXT, Sport, TRX4

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K2064B fit a 2005 Dodge Ram 2500?

Yes. The 2003-2008 Ram 2500 is covered, and 2005 falls within that range. Covered versions include Laramie, SLT, ST, SXT, Sport and TRX4.

Does the K2064B need a steering correction?

Yes. The steering correction is a pitman arm, which is part of this 5-inch kit. Check the steering and alignment after installation, since the pitman arm changes steering geometry.

What front shocks come with the K2064B?

The kit includes ES9000 front shocks, and shocks come with the kit as part of the package. Confirm fit for your vehicle's year, model and trim before ordering.

How do I tell if the steering needs attention after a spacer lift?

Look for a wandering feel on the highway, a wheel that does not return to center, or uneven wear on the inside or outside of the front tires. Any play in the tie rod ends or drag link is a reason to have the steering inspected before continuing to drive.
