Overview

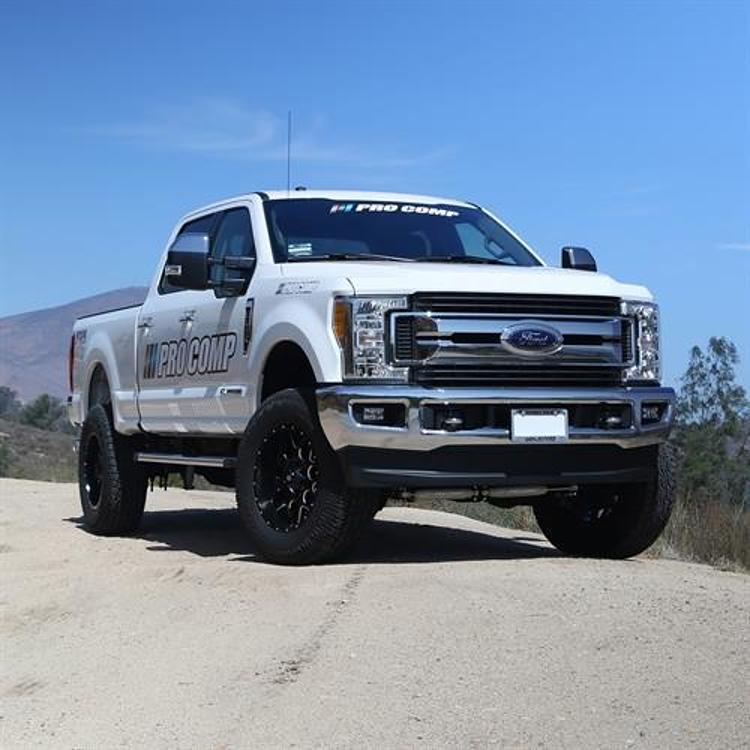

The Pro Comp K4209B is a 6-inch Stage 2 coil spring lift kit with ES9000 front and rear shocks for the 2017–2018 Ford F-250 and F-350 Super Duty. It is designed for 4WD diesel models and uses radius arm upgrades at the front with the coil spring components.
The Stage 2 radius arms are precision laser cut from 3/16 inch steel, and radius arm drop brackets correct the steering geometry. The rear is lifted with blocks and U-bolts.
Key features
- 6-inch lift height, Stage 2
- Radius arm upgrades

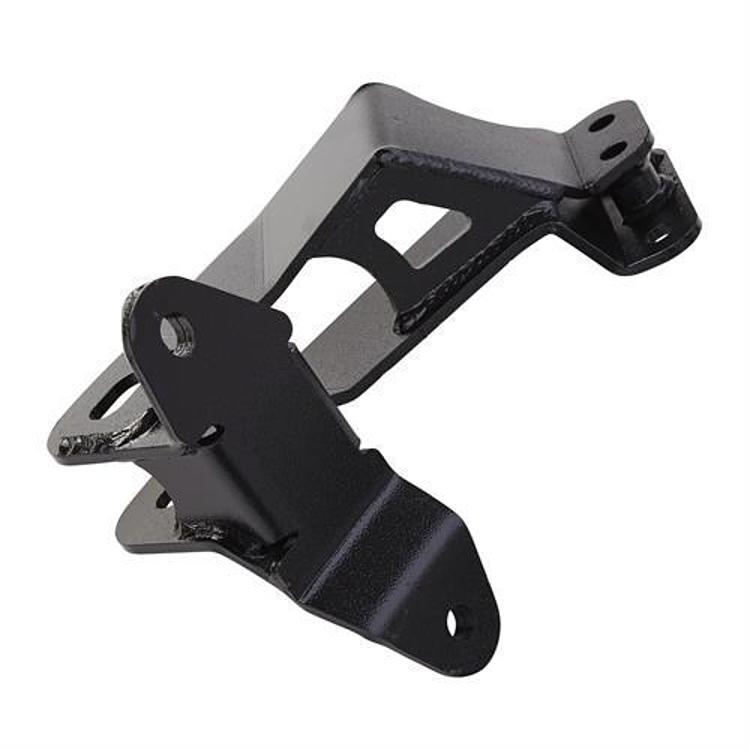

- Radius arm drop brackets

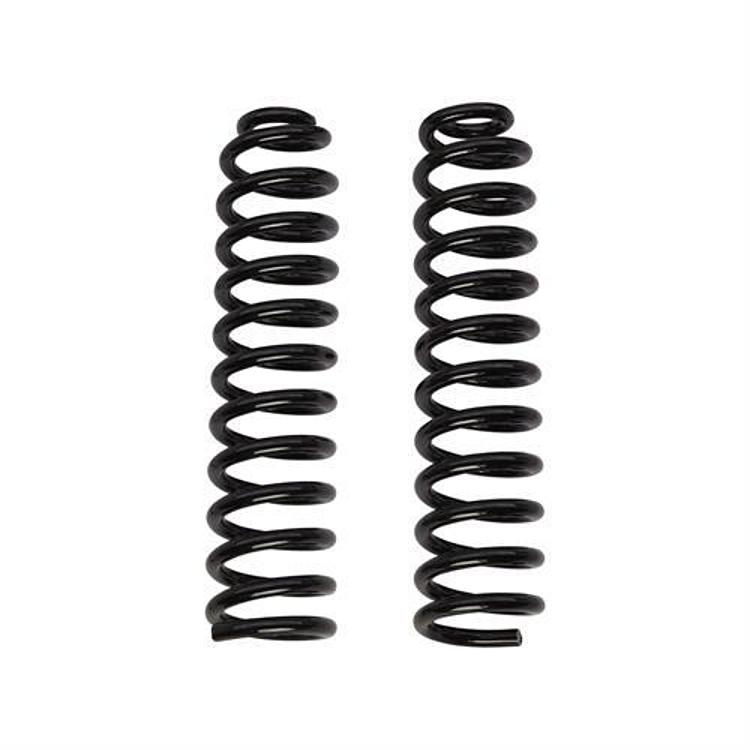

- Coil spring components
- ES9000 front and rear shocks
- Rear lift with blocks and U-bolts
Stage 2 front and drivetrain
The Stage 2 design changes the front to radius arm upgrades with drop brackets, which means the axle and the steering geometry both move. Driveline angles matter at this height, since the front and rear shafts can run at angles that cause vibration. A quick check of the driveline and the pinion angle after installation helps catch problems early.
Look for wear on the U-joints and the slip yoke as part of routine service, especially on a diesel truck that tows regularly. Keep the bushings and drop bracket fasteners tight, and listen for any new clunk over rough roads. A rough ride that appears suddenly often points to a loose fastener or a worn bushing rather than the spring itself.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4209B |
| UPC | 70000792298 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 2 |
| Suspension type | Coil spring kit |

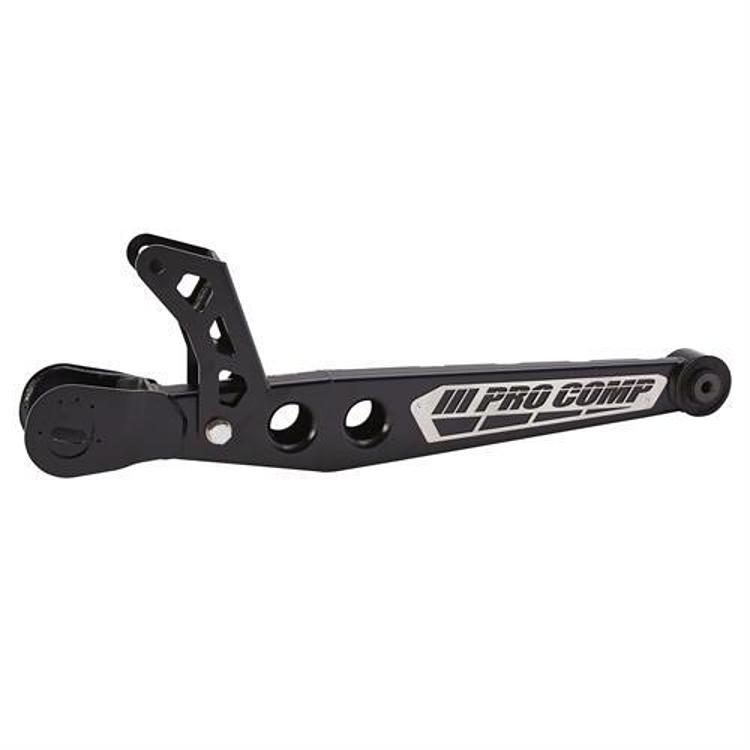

| Radius arms | Upgraded, 3/16 inch precision laser cut steel |

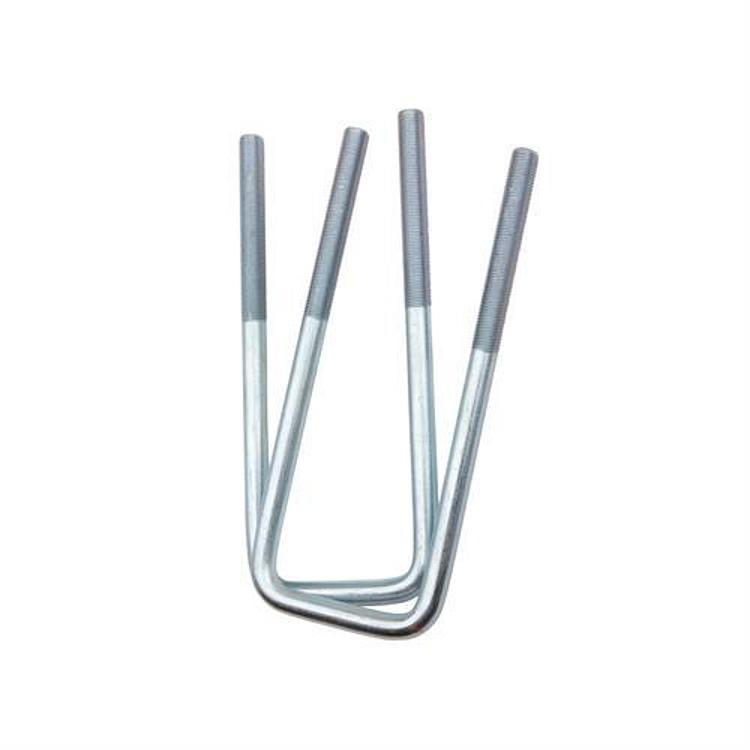

| Rear lift | Lift blocks and U-bolts |

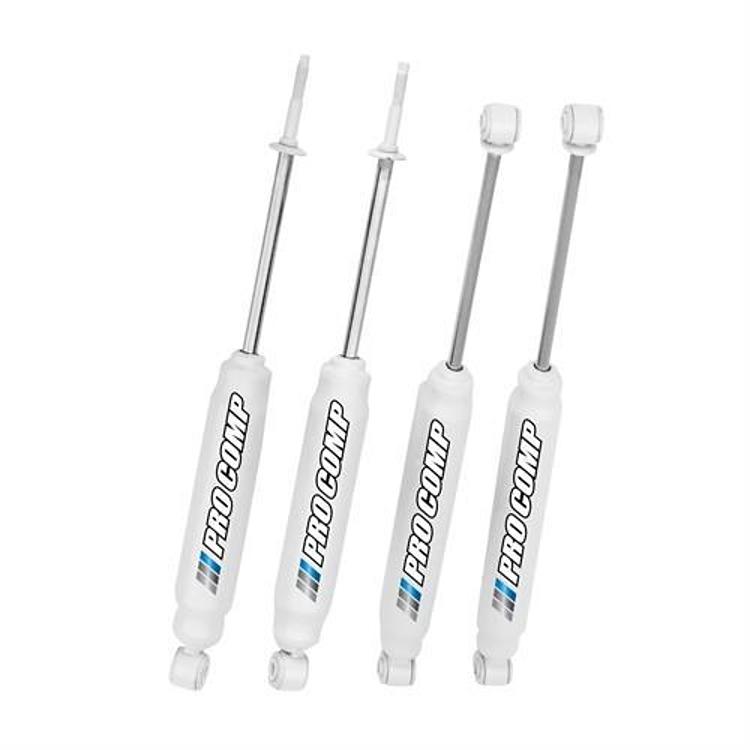

| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Applies to | 4WD diesel models |
Vehicle fitment
It fits the 2017–2018 Ford F-250 Super Duty and F-350 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
Only 2017 and 2018 trucks appear on the list, so the 2016 model and the 2019 and later Super Duty are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Upgraded radius arms and drop brackets change the front geometry at 6 inches, so have the alignment checked and the driveline angles confirmed after installation.

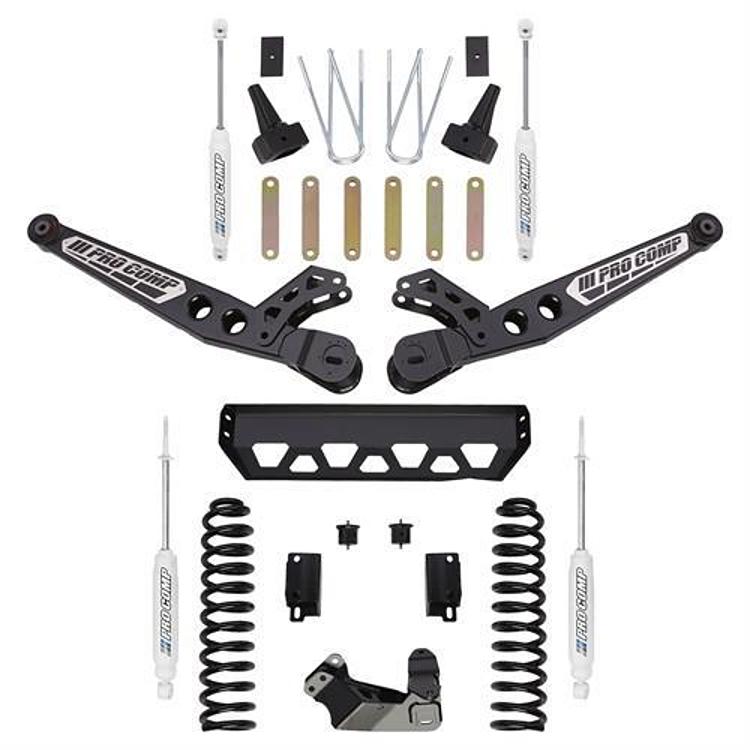

What’s included

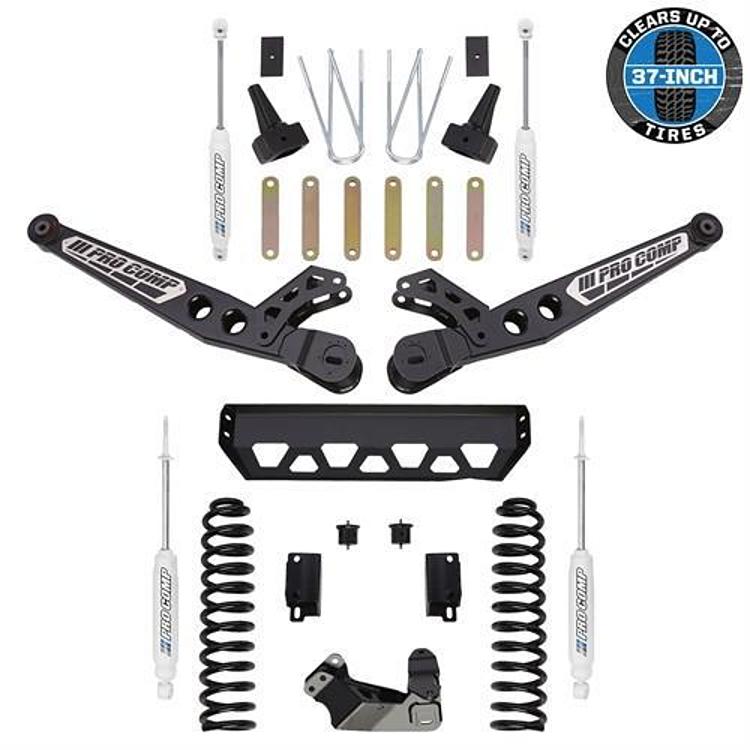

The kit includes the Stage 2 radius arm upgrades, the drop brackets, the coil spring components, the block and U-bolt rear lift, and ES9000 front and rear shocks.
