Overview
The Pro Comp K4168B is a 6-inch Stage II lift kit with ES9000 shocks for the 2008–2010 Ford F-250 and F-350 Super Duty. It pairs front coil springs with radius arms for the front suspension, and it lifts the rear with leaf springs and U-bolts.
The Pitman arm corrects steering geometry at the new height. Bump stop extensions, front sway bar links and brake line extension brackets complete the front package, and ES9000 units are used at both ends of the truck.
Key features
- 6-inch lift height, Stage II
- Front coil springs
- Radius arms
- Pitman arm steering correction
- Bump stop extensions and front sway bar links
- Rear leaf springs with U-bolts
Leaf springs and driveline checks
Driveline angles change when a truck is lifted, and a steep angle at the rear axle can cause vibration and early wear on the U-joints. Measuring the angles after installation helps set the pinion and driveshaft in a healthy range. Leaf spring packs also shift under load, so the angles may change slightly once the truck has been driven.
Radius arms and a Pitman arm make the steering and front suspension more sensitive to alignment. A slight misalignment can show up as uneven tire wear across the front tread, so tire rotation is a good early warning. Keeping the rear U-bolts tight and the shock mounts clean makes the rest of the system easier to maintain.
- Measure driveline angles after installation
- Inspect U-joints for play
- Watch for vibration at highway speed
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4168B |
| UPC | 614901125993 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 2 |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Coil springs |
| Steering correction | Pitman arm |
| Rear lift | Leaf springs with U-bolts |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
Vehicle fitment
It fits the 2008–2010 Ford F-250 Super Duty and F-350 Super Duty trucks in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.
Only the 2008 through 2010 Super Duty model years are listed. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms and a Pitman arm change the steering and front geometry, so schedule the alignment and check the driveline angles once the kit is in.

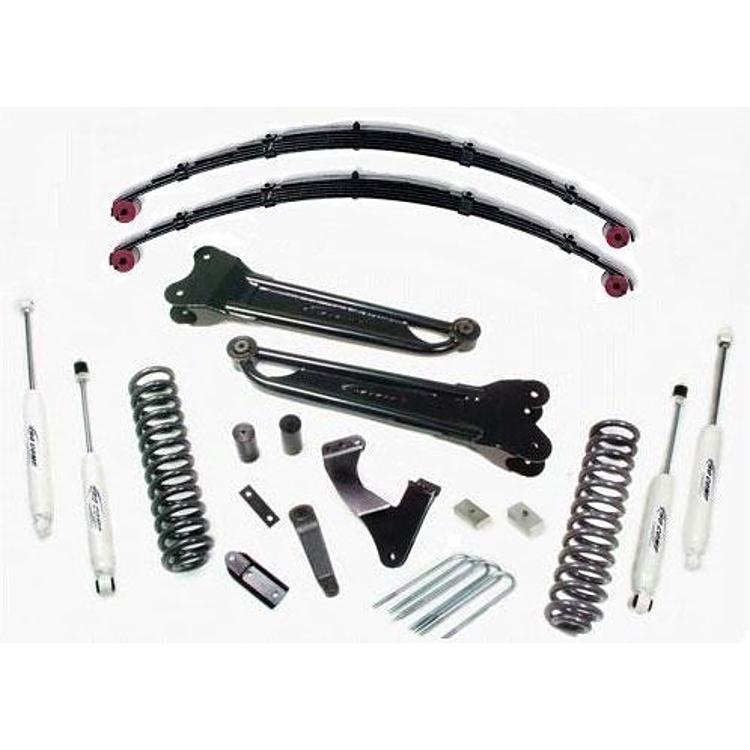

What’s included
The kit includes front coil springs, radius arms, the Pitman arm steering correction, bump stop extensions, front sway bar links, brake line extension brackets, rear leaf springs with U-bolts, and ES9000 front and rear shocks.
