Overview
The Pro Comp K4151B is a 6 inch stage I lift kit with ES9000 shocks for the 2008-2010 Ford F-250 Super Duty and F-350 Super Duty. It has a lift height range of 5 to 6.99 inches and is a direct fit.
The front lifts with coil springs and uses radius arm brackets, with front sway bar links, bump stop extensions, brake line extension brackets and a pitman arm for steering correction. The rear lift uses a block and u-bolt kit with add-a-leafs. Shocks are included, with ES9000 shocks at the front.
Key features
- 6 inch stage I lift kit
- Lift height range of 5 to 6.99 inches
- Front lift with coil springs
- Front sway bar links
- Bump stop extensions
- Steering correction with a pitman arm
- Radius arm brackets
- Brake line extension brackets
- Rear lift with a block and u-bolt kit with add-a-leafs
- Shocks included, with ES9000 front shocks
Steering and suspension checks
A stage I lift with steering correction changes how the front wheels sit and how the steering responds. A pitman arm and radius arm brackets keep the axle positioned under braking, and sway bar links control body roll on turns. Together these parts set the handling at the new height.
Rear loads matter on a Super Duty with block and U-bolt lift components. Add-a-leafs help support heavier loads, so consider how the truck will be used before choosing a load rating. Overloading a lifted rear can stress shocks and mounts quickly.
Routine checks catch problems early. Look for worn bushings, loose U-bolt nuts and cracked bump stops at each service, and confirm the alignment after work on the front end.
- Re-check U-bolt nut torque after the first miles
- Inspect radius arm bushings at each service
- Watch for leaks at shock mounts
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4151B (also written EXPK4151B) |
| UPC | 614901206685 |
| Product type | Suspension lift kit |
| Lift kit | 6 Inches stage 1 |
| Lift height range | 5 to 6.99 Inches |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Coil springs |
| Steering correction | Pitman arm |
| Rear lift method | Lift block, u-bolts and add-a-leaf |
| Front shocks | ES9000 |
| Shocks included | Yes |
| Fit type | Direct fit |
Vehicle fitment
The manufacturer fitment list for the Pro Comp K4151B includes:
- 2008–2010 Ford F-250 Super Duty (Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT)
- 2008–2010 Ford F-350 Super Duty (Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT)
The list covers the F-250 Super Duty and F-350 Super Duty for 2008-2010 only. It does not include 2011 or newer Super Duty trucks, other model years or other Ford trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A lift kit with steering and brake-line parts changes how several safety systems sit, so professional installation is the right choice. Use rated stands on level ground and tighten every fastener to its torque specification.
Go back over the fasteners after the first miles, check tire, brake-line and driveshaft clearance through full steering and suspension travel, and book an alignment. Check what your local rules say about vehicle height before the truck goes back on the road.
Steering parts such as the pitman arm and brake line extension brackets are safety-critical, so professional installation is strongly recommended.

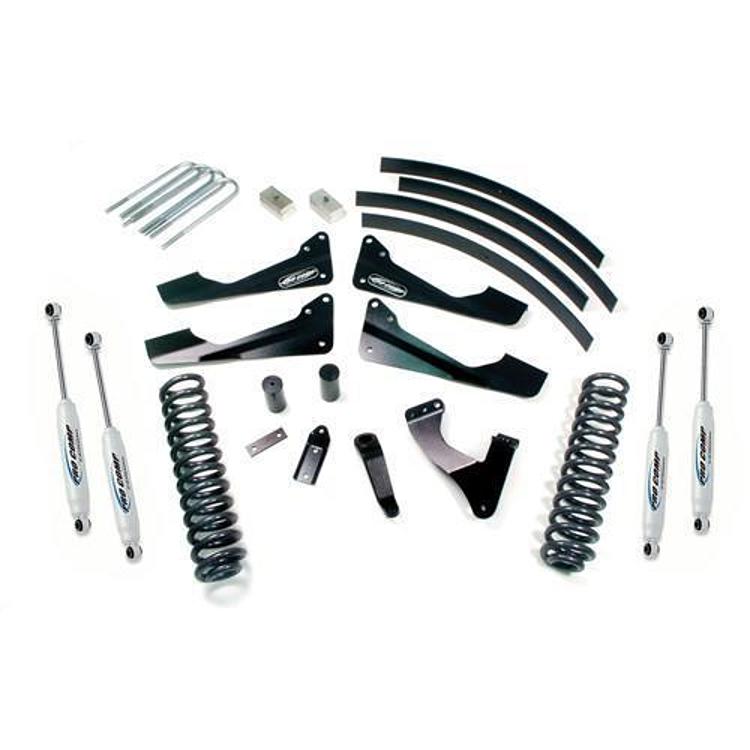

What’s included
- Pro Comp 6 inch stage I lift kit
- Front coil springs
- Front sway bar links
- Bump stop extensions
- Pitman arm
- Radius arm brackets
- Brake line extension brackets
- Rear block and u-bolt kit with add-a-leafs
- Shocks
Not included: Wheels, tires and any other parts beyond the items shown above. Check the package contents against your installation before starting.
