Overview

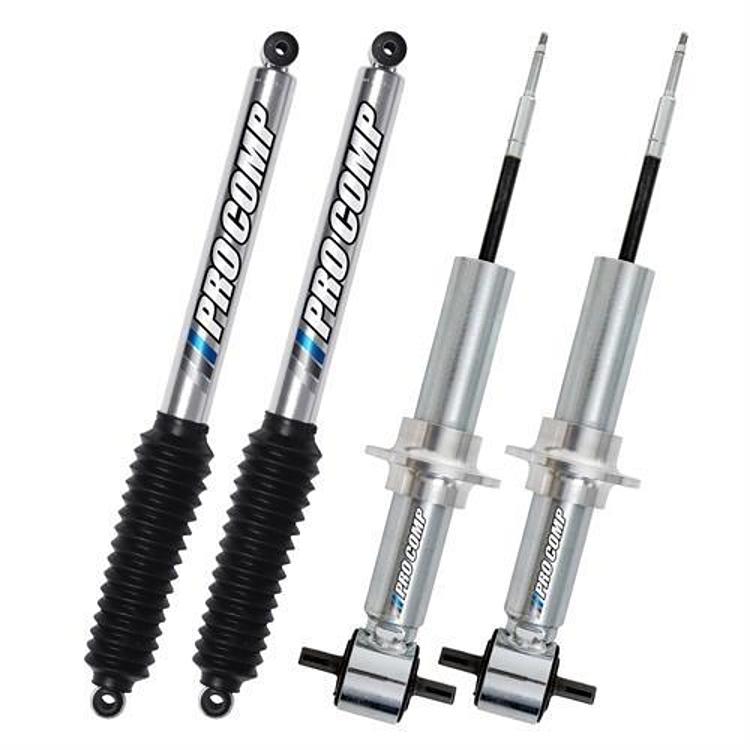

The Pro Comp K6006BPS is a 6-inch Stage 1 suspension lift kit for the 2004–2015 and 2017–2018 Nissan Titan. It is configured with Pro Runner front struts and ES9000 series rear shocks, with a Pro Runner rear shock upgrade available.
The front uses high strength extended steering knuckles that maintain OE geometry and heavy duty one-piece front crossmembers with bump stop pads. The rear uses 4-inch tall tapered lift blocks, and the kit includes 1-inch front bumper spacers for 35-inch tall tires on 18 to 20 inch rims with up to 5 inch back spacing.
Key features
- 6-inch lift height from a Stage 1 kit

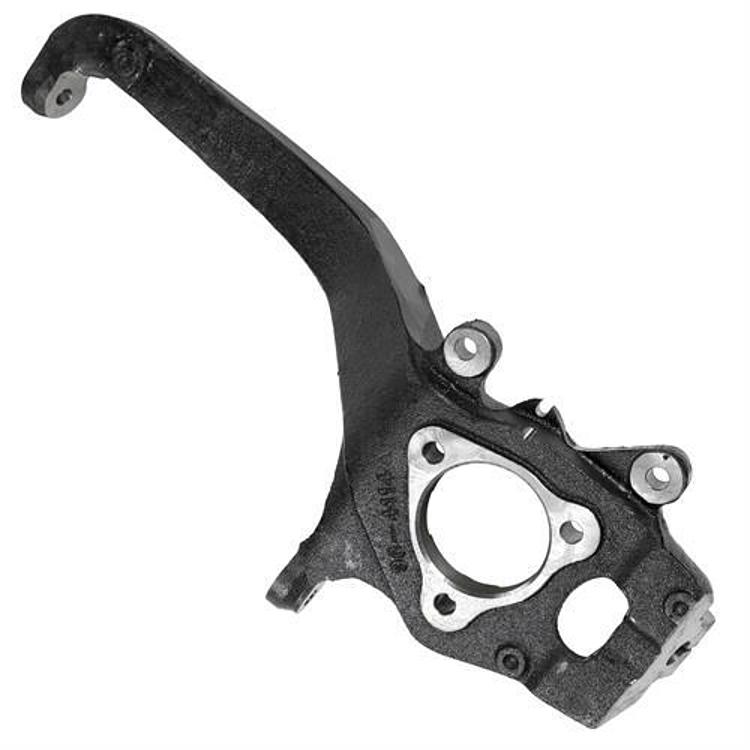

- High strength extended steering knuckles

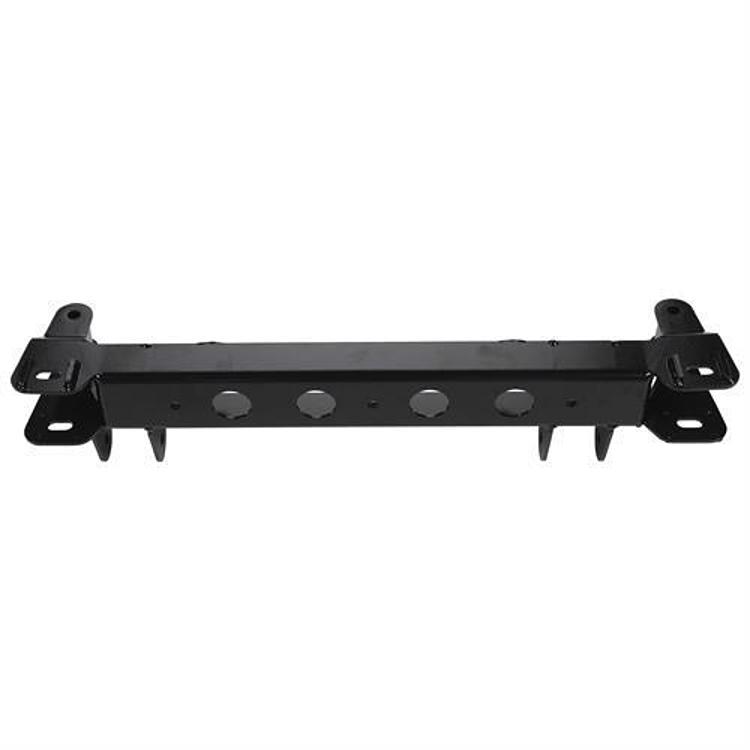

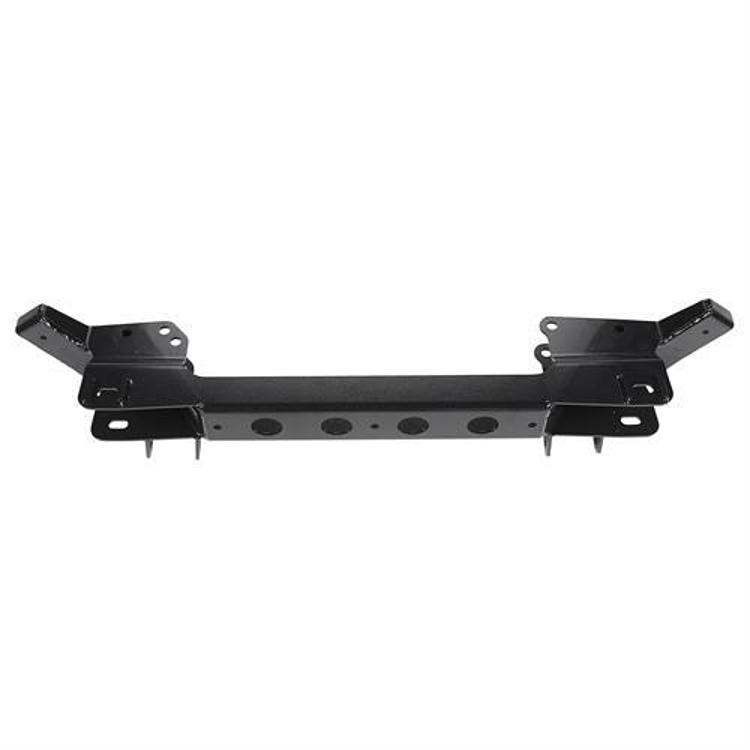

- Heavy duty one-piece front crossmembers
- Bump stop pads
- 4-inch tall tapered lift blocks
- 1-inch front bumper spacers
Front struts and rear shock mix
Mixing front struts with rear shocks from different lines is common on lifted trucks, but the pair should be chosen for the ride height and intended use. Front struts carry steering loads and affect how the truck tracks at speed, while rear shocks control axle movement over bumps and when the load changes.
Strut mounts and bearings wear over time and should be checked whenever the front is apart for a lift. Look for clunks over bumps, uneven tire wear, or a steering wheel that returns slowly to center. These signs point to parts that should be replaced while the front is accessible.
When upgrading shocks later, keep the front and rear setup balanced so the truck does not sit at an odd angle or handle unevenly. Replacing shock pairs on the same axle at the same time helps keep damping consistent.
- Strut mounts checked for wear
- Shock pairs replaced together on each axle
- Alignment set after any strut change
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K6006BPS |
| UPC | 700008461981 |
| Lift height | 6 inch (lift height range 4 to 6 inches) |
| Lift kit stage | Stage 1 |
| Rear lift | Block |
| Lift block height | 4 inch tapered |
| Front shocks | Pro Runner |
| Rear shocks | ES9000 series, with a Pro Runner upgrade available |
| Front bumper spacers | 1 inch |
Vehicle fitment
This kit covers the 2004–2015 and 2017–2018 Nissan Titan in the LE, PRO-4X, Platinum Reserve, S, SE, SL, SV and XE versions. The 2016 model year and XD models are not covered. Confirm your vehicle’s year, model and trim before ordering.
The 2016 model year is not on the list, and XD models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Extended knuckles and one-piece crossmembers change the front geometry, so have the alignment checked and the brake lines inspected after installation.
What’s included

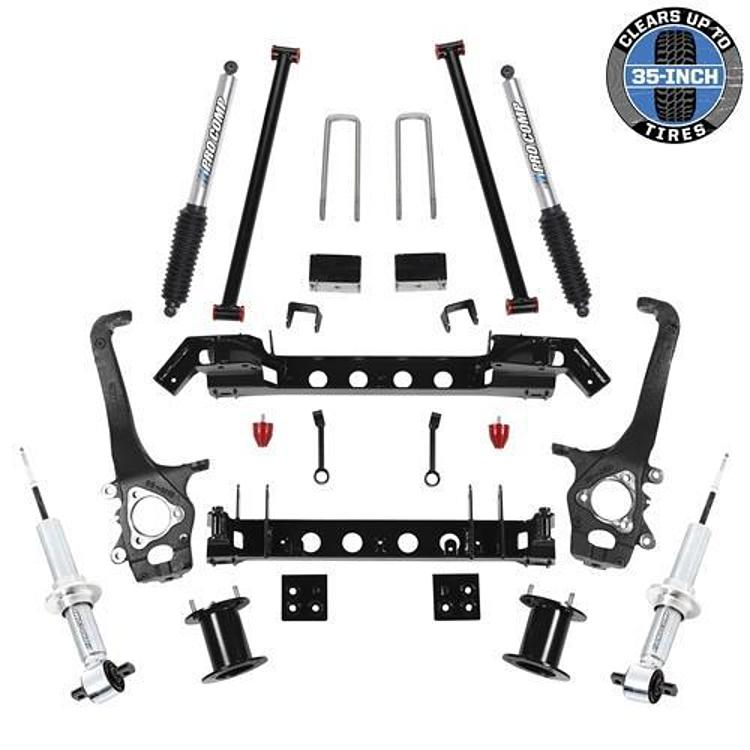

The kit includes the extended steering knuckles, one-piece front crossmembers with bump stop pads, 4-inch tapered lift blocks, 1-inch front bumper spacers, Pro Runner front struts, and ES9000 series rear shocks.
