Overview

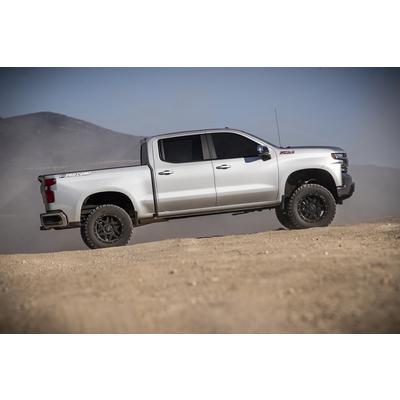

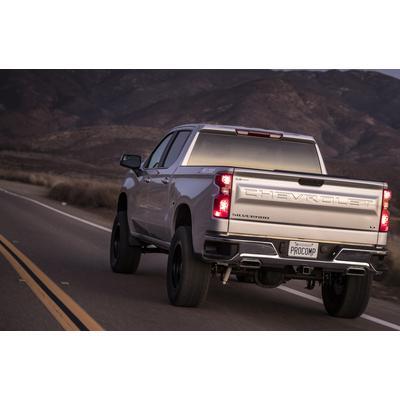

The Pro Comp K1175T is a 6-inch lift kit with PRO-X rear shocks for the 2019–2022 Chevrolet Silverado 1500 and GMC Sierra 1500, including the 2022 Silverado 1500 LTD and the 2022 Sierra 1500 Limited. Pro Comp designed it for trucks with 20-inch or larger wheels and 35-inch tires, and the lift height range is 6 to 7 inches.
The 2019 and newer GM half-ton trucks have a new chassis, and Extended steering knuckles keep the factory steering geometry, front lower crossmembers and a differential skid plate are made from 3/16-inch steel plate, and upper strut spacers keep the factory-tuned struts for factory ride quality.
Key features
- High strength extended steering knuckles that retain factory steering geometry

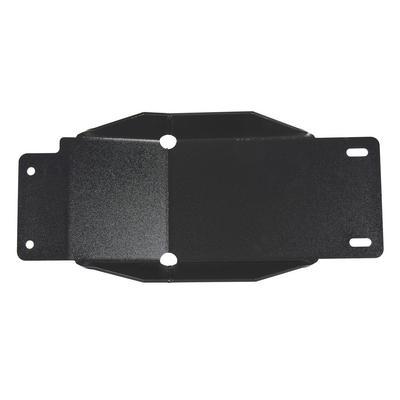

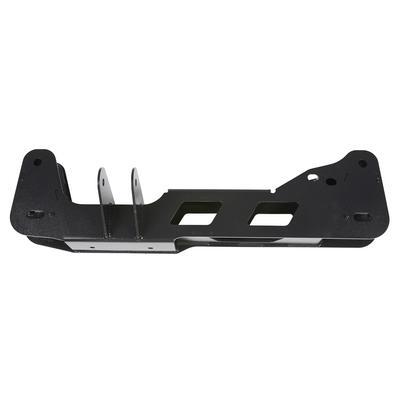

- Front lower crossmembers and a differential skid plate made from 3/16-inch steel plate
- Upper strut spacers that keep the factory-tuned struts
- Rear lift blocks, U-bolts and PRO-X shocks that maintain factory load capacity
- Built for 20-inch or larger wheels and 35-inch tires
Wheels, tires and gearing
Larger tires change the effective rolling diameter, which affects speedometer accuracy, shift behavior and the strain on the drivetrain. Heavier tires also add weight to each wheel assembly, so brake and axle components see more load at speed. Many owners who move to bigger tires check speedometer calibration after the first few drives and consider a tune or gear change if the truck feels sluggish.
Strut spacers and steering knuckles are often inspected together on a new chassis, since both affect how the front end carries loads. Wheel bearings, brake rotors and pads deserve a look when tire size changes, and wheel offset should clear the new steering geometry. Keep the tire pressure guidance from the door placard in mind when setting pressures for a heavier setup.
- Check speedometer accuracy after tire changes
- Inspect wheel bearings and brake pads
- Confirm wheel offset clears the new steering knuckles
- Re-check lug nut torque after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1175T |
| Suspension type | Lift kit, 6-inch stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front skid and crossmembers | Front lower crossmembers and differential skid plate, both of 3/16-inch steel plate |

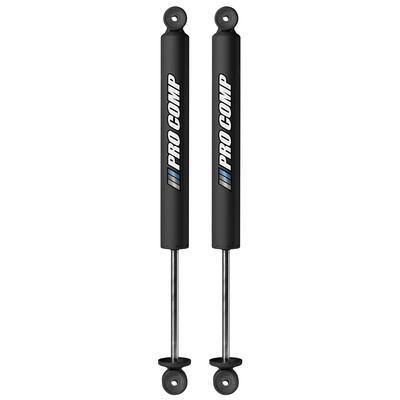

| Rear shocks | PRO-X, included |
| Rear lift method | Block and U-bolt |
| Wheel size | 20-inch or larger |
| Tire size | 35-inch tires for all-terrain use |
Vehicle fitment
It fits the 2019–2021 and 2022 Chevrolet Silverado 1500 and the 2019–2022 and 2022 GMC Sierra 1500, including the Limited versions of both.
The 6-inch K1175B version is for 2019 trucks with the factory base suspension package. Do not use this kit on Chevrolet Custom and LT Trail Boss models with a 2-inch factory suspension lift, GMC Denali trucks with Adaptive Ride Control, or GMC AT4 trucks with a 2-inch factory suspension lift. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The extended steering knuckles and the front lower crossmembers change the front end geometry, so have the alignment and driveline angles checked after installation. Pro Comp designed the lift for 35-inch tires on wheels 20 inches or larger.
What’s included

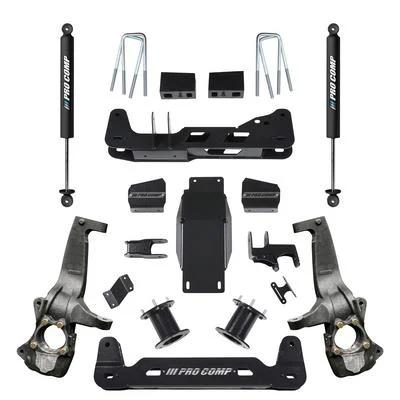

Extended steering knuckles, front lower crossmembers, differential skid plate, upper strut spacers, rear lift blocks, U-bolts and PRO-X rear shocks.
