Pro Comp 6.5″ Lift Kit with PRO-M Shocks – K4016M

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 1999–2004 Ford F-250 and F-350 Super Duty.
  • 6.5-inch Stage 1 lift with a 6–7 inch lift height range
  • Leaf spring rear lift
  • PRO-M front and rear shocks, included
  • Part number EXPK4016M (K4016M)

Description

Overview

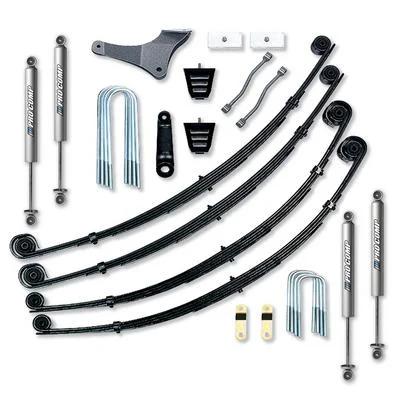

The Pro Comp EXPK4016M, also written K4016M, is a 6.5-inch Stage 1 lift kit with PRO-M shocks for the 1999–2004 Ford F-250 and F-350 Super Duty. The rear uses leaf springs, and the kit is a direct fit for those trucks.

PRO-M is Pro Comp’s mid-range shock series, and this kit pairs it with leaf springs at the rear. The lift height range is 6 to 7 inches, which suits owners who want more height than a smaller entry-level kit provides.

Key features

  • 6.5-inch Stage 1 lift with a 6–7 inch lift height range
  • Leaf springs as the rear lift method

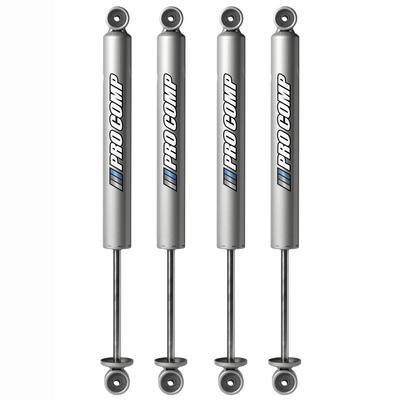

  • PRO-M front and rear shocks, included
  • Direct fit to the listed 1999–2004 Super Duty trucks
  • Pro Comp describes its kits as built with racing-influenced engineering

Leaf springs and driveline

Leaf spring lifts on older Super Duty trucks depend on the springs, shackles and U-bolts to hold the axle in position. Over time, leaves can sag or shift and the bushings can wear, so the rear end should be inspected at intervals and after heavy towing.

A lift of this size also changes the driveline angles, so the U-joints and driveshaft need a look after installation and periodically thereafter. Vibration at highway speed, clunks on acceleration, or a squeak from the rear springs are all signs to check the angles and hardware. Keep the shocks in good working order, because worn damping makes the lifted truck feel loose.

Some owners keep a record of rear sag by measuring the height at the same spot each season, which makes gradual change over time easy to see.

Specifications

Brand Pro Comp Suspension
Part number EXPK4016M (K4016M)
Kit type Lift kit, complete suspension system
Kit stage Stage 1
Lift height 6.5 inches, with a lift height range of 6–7 inches
Shock series PRO-M
Front shocks PRO-M
Rear shocks PRO-M
Rear lift method Leaf springs
Rear lift component Leaf springs
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 1999–2004 Ford F-250 Super Duty and 1999–2004 Ford F-350 Super Duty in the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.

The 2005 and newer Super Duty trucks are not on this list. The 2005–2007 kits from Pro Comp are a separate fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lifting a Super Duty this far changes the driveline angles and the alignment. Have the front end aligned after the install and check the U-joints and driveshaft for correct angles.

What’s included

PRO-M shocks at the front and rear are included. The leaf springs for the rear lift are part of the kit. No full parts list is given.

SKU: EXPK4016M Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty1999–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty1999–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK4016M fit a 2003 Ford F-350 Super Duty?

Yes. The 1999–2004 Ford F-350 Super Duty is covered, which includes 2003 trucks. Super Duty trucks from 2005 onward are not covered by this kit.

What shocks come with this kit?

PRO-M shocks are included at the front and rear. PRO-M is Pro Comp's shock series for this kit, and the specifications mark them as included.

How much lift does it give?

It is a 6.5-inch Stage 1 lift with a lift height range of 6 to 7 inches. The rear lift uses leaf springs.

Does a leaf spring lift affect towing?

It can. Raising the rear changes the load path and driveline angles, so towing loads should be considered after installation. Check the leaf springs, U-bolts and shocks regularly, and keep tire pressures correct for the load you carry.
