Overview
The Pro Comp 6 in. Lift Kit with PRO-M Shocks, part number K1087M, is a bolt-on lift for the 2011–2018 Chevrolet Silverado 3500 HD and GMC Sierra 3500 HD. It is a 6 inch stage 1 kit with a lift height range of 6 to 7 inches, and PRO-M shocks are included.
The front lift uses a laser-cut crossmember and steering knuckles made from 1/4 inch thick steel. The rear lift uses block and U-bolt components on the leaf springs. The system clears 35 inch tires with no trimming, and the kit requires no welding, no drilling and no cutting of the differential.
Key features
- 6 in. stage 1 lift with a lift height range of 6 to 7 in.

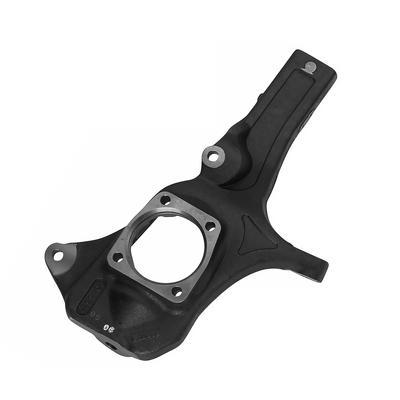

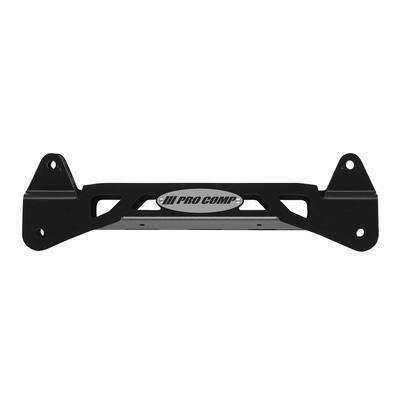

- Front lift from a 1/4 in. thick, laser-cut crossmember and steering knuckles
- Rear lift from leaf springs with block and U-bolt components

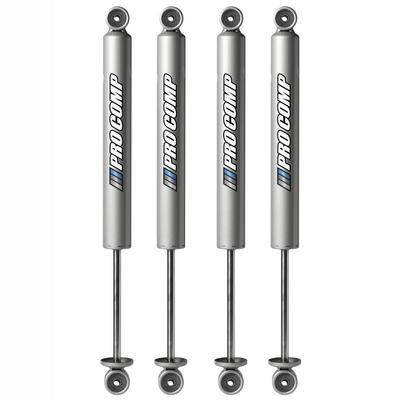

- PRO-M shocks, front and rear, included
- Bolt-on installation with no welding, drilling or differential cutting
- Clears 35 in. tires with no trimming
Tire size and driveline changes
Larger tires change more than ride height. Their added diameter alters gearing, so acceleration feels different and the speedometer reads low unless it is recalibrated. Heavier tires also add load to the front and rear axles and can change how the steering responds at highway speed.
After a heavy-duty lift, it is common to inspect the driveline and axle angles, along with brake hoses that may have more travel. Check bump stops and shock travel as well, since a taller truck can reach them sooner than the old setup did. A complete inspection after the first weeks of driving is a sensible habit.
- Check U-bolts for tightness after the first trips
- Inspect brake hose length at full droop
- Look for rubbing between the tire and inner fender
- Verify steering stops clear the knuckles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1087M |
| Suspension type | Lift kit |
| Lift | 6 in. stage 1 |
| Lift height range | 6 to 7 in. |
| Front lift method | Crossmember and steering knuckles, 1/4 in. thick, laser cut |
| Rear lift method | Leaf springs with block and U-bolt |
| Shocks | PRO-M, front and rear, included |
| Tire clearance | 35 in., with no trimming (per Pro Comp) |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits the 2011–2018 Chevrolet Silverado 3500 HD and the 2011–2018 GMC Sierra 3500 HD.
The list does not include the 2500 series trucks or any Chevrolet or GMC truck from 2019 onward. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Raising the front and rear changes the driveline angles and the front alignment, so have the alignment and driveshaft angles checked after installation. Check the U-bolts and shock lengths against the new installed height before driving.
Support the truck on jack stands rather than the jack alone while the suspension is off the ground.

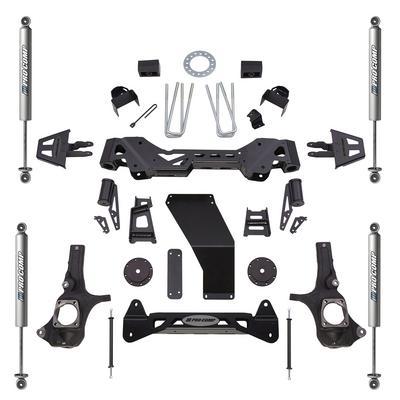

What’s included
The kit includes PRO-M shocks for the front and rear, along with the front crossmember and steering knuckles and the rear block and U-bolt components that Pro Comp describes as part of the bolt-on system.
