Overview
The Pro Comp EXPK5085T, also written K5085T, is a 7-inch Stage 1 suspension lift kit with PRO-X shocks for the 2007–2021 Toyota Tundra. The rear lift uses a block and U-bolt, and it is a direct fit for the Tundra trims covered here.
This is the entry level of the 7-inch line, with a lift height range of 6 to 7 inches.
Key features
- 7-inch Stage 1 lift
- Block and spacer rear lift with a U-bolt

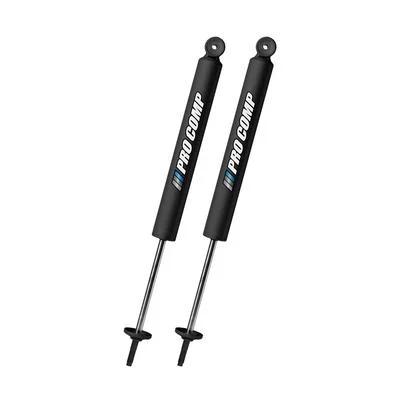

- PRO-X front and rear shocks, included
- Direct fit to the listed 2007–2021 Tundra trucks
Driveline and alignment after a lift
A lift raises the transfer case and axles, so the driveline angles change even when the parts are bolted correctly. Measure the angles at the new height and compare them with the guidance that came with the kit. Vibration at highway speed is often the first sign that the angles need attention.
A block and U-bolt rear lift keeps the factory springs in place and raises the axle on the existing mounts. Retorque the U-bolts after the first few drives, since they settle as the truck is driven. Check the shocks for clearance at full compression as well, because the longer geometry changes how they travel.
- Check driveshaft slip-yoke engagement
- Inspect the brake lines for stretch
- Re-torque U-bolts after the first few drives
- Verify steering stops and tie rod ends
- Recheck the alignment after any tire change
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK5085T (K5085T) |
| Kit type | Lift kit, complete suspension system |
| Kit stage | Stage 1 |
| Lift height | 7 inches, with a lift height range of 6–7 inches |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Rear lift method | Block and spacer |
| Rear lift component | Block and U-bolt |
| Shocks included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2021 Toyota Tundra in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail trims.
The list covers the Tundra from 2007 through 2021 only, so 2022 and newer trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 7-inch lift changes the driveline angles and the alignment, so both should be checked after the kit is installed.
What’s included
PRO-X shocks at the front and rear come with the kit, along with the block and U-bolt rear lift set. Check the package contents against your installation before starting.
