Overview
The Pro Comp K2101B is a 6-inch stage 1 lift kit for 2014–2017 Ram 1500 trucks. It suits 4WD models with Eco diesel engines in Big Horn, Laramie, Limited, Lone Star, SLT, Tradesman and related trims.
This is a full front and rear system. It includes crossmembers, steering knuckles, a skid plate and the drop brackets for the differential, control arms and track bar. Rear ES9000 shocks are supplied, and the stock front shocks are reused.
Key features
- 6-inch lift, stage 1 system
- Crossmembers and steering knuckles included
- Differential, rear control arm and track bar drop brackets
- Rear ES9000 shock absorbers and rear coil spring spacers
- Front sway bar end link extensions and wiring harness
- Skid plate included
Before you buy
A six-inch system with new knuckles and a crossmember changes the front geometry in ways that go beyond height. Tire diameter, wheel offset and backspacing decide whether the tire clears the fender at full steering lock and under suspension compression. Check the clearance plan before ordering, because a larger tire can rub the inner fender or control arms even when the lift itself is set correctly.
Driveline and brake lines deserve the same attention. Once the drop brackets are in place, driveshaft angles shift, and the driveshaft spacer helps the joints work within a sensible range. Rear sway bar end links and the brake line bracket are usually replaced together so the rear assembly stays balanced. Inspect ball joints and steering components during the first service after installation.
- Measure tire clearance at full lock
- Check driveshaft joints after the first drives
- Replace worn ball joints during installation
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2101B |
| UPC | 70000702754 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Front shocks | Reuse OEM |
| Rear shocks | ES9000 |
| Rear lift method | Spacers |
| Max tire size | 35×12.50R17-20, 315/70R17, 305/70R18, 325/65R18, 295/60R20 |
| Wheel size | 18×9 with 5″ backspacing, or 20×9 with 5″ backspacing |
Vehicle fitment
It is designed for 2014–2017 Ram 1500 trucks in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT and Tradesman trims.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6-inch kit with a new knuckle and crossmember changes the front geometry, so plan on a full alignment and a driveline angle check. The rear sway bar end links and brake line drop bracket are part of the rear assembly and should be fitted together.
What’s included

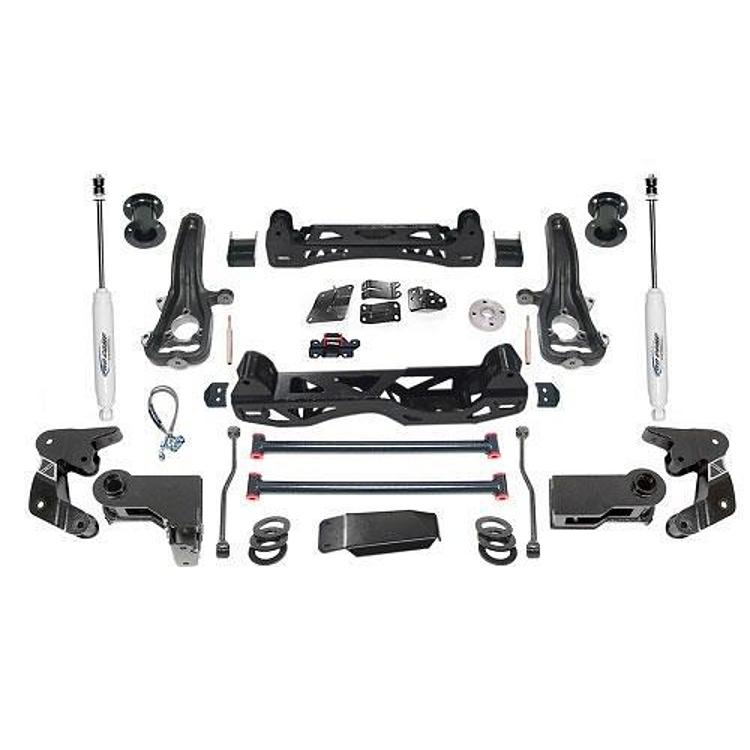

The kit includes crossmembers, differential drop brackets, front strut spacers, a driveshaft spacer, front sway bar end link extensions, a wiring harness, front brake lines, steering knuckles, a compression strut and mount, a skid plate, rear control arm drop brackets, rear sway bar end links, rear coil spring spacers, a rear brake line drop bracket, a rear track bar bracket, rear ES9000 shock absorbers and hardware.
