Overview
The Pro Comp K4063B is a 6 inch Stage I lift kit with ES3000 shocks, fitting 1990-1996 Ford F-150 models. It lifts the front with coil springs and the rear with a block and U-bolt kit.
The kit includes a pitman arm for steering correction, radius arm brackets, bump stop extensions and extended length brake lines, along with ES3000 shocks front and rear. The lift height is 6 inches (stage 1), within a 5 to 6.99 inch lift height range.
Key features
- 6 inch Stage I lift
- Front lift with coil springs
- Rear lift with a block and U-bolt kit
- Radius arm brackets
- Steering correction with a pitman arm
- Bump stop extensions
- Extended length brake lines
- ES3000 shocks front and rear
Planning a stage 1 lift
A stage 1 lift raises the truck without changing its core suspension geometry as much as a larger lift does. Front coil springs and rear blocks work together, so both ends rise to a similar height. Before installing, check that the existing brake lines, driveshaft angles and steering linkage can handle the new ride height.
Lift kits are often installed with new shocks, bump stop extensions and sway bar links, since those parts are designed to match the new suspension height. Inspect the old bushings and ball joints while the truck is apart. Keep the shock and spring hardware organized, and check that the rear block and U-bolts are tightened after the first trip.
- Check brake line length after lifting
- Inspect driveshaft angles at the U-joints
- Replace worn ball joints during the install
- Recheck U-bolt torque after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4063B |
| UPC | 614901125108 |
| Product type | Lift kit (Stage I) |
| Lift height | 6 inches |
| Lift height range | 5 to 6.99 inches |
| Front lift | Coil springs |
| Rear lift method | Lift blocks and U-bolts |
| Suspension type | Radius arm or radius arm brackets |
| Steering correction | Pitman arm |
| Shocks | ES3000, shocks included |
| Brake lines | Extended length |
| Fit type | Direct fit |
| Manufacturer part code | EXPK4063B |
Vehicle fitment
Fits the 1990–1996 Ford F-150 in Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat trims.
It fits the 1990-1996 Ford F-150 only, not other Ford F-150 model years or other Ford trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6 inch lift changes front and rear geometry, so professional installation is recommended. Support the vehicle on rated jack stands, tighten every fastener to the torque values for this kit, and check brake line length and driveline angles before the first drive. Get an alignment, and check tire clearance with your wheel and tire combination.

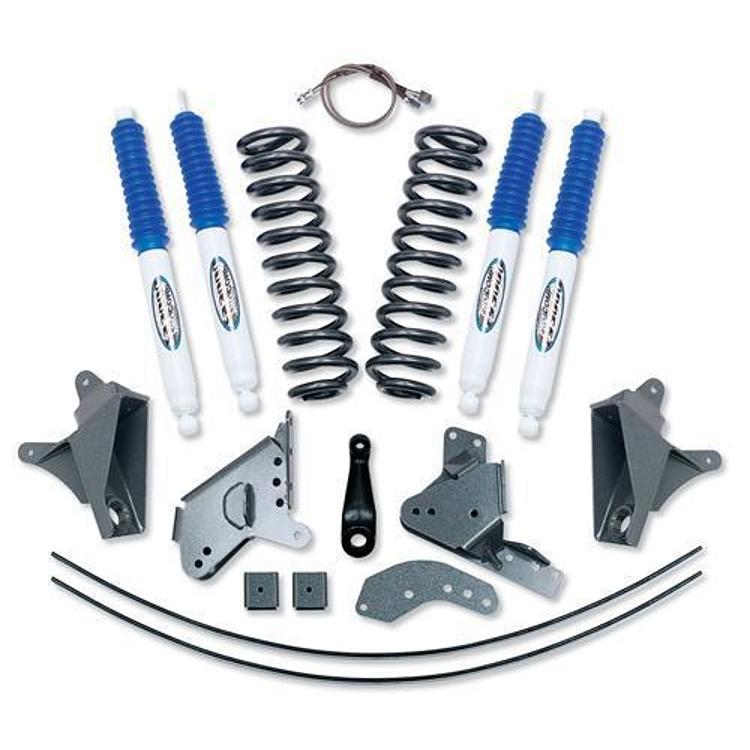

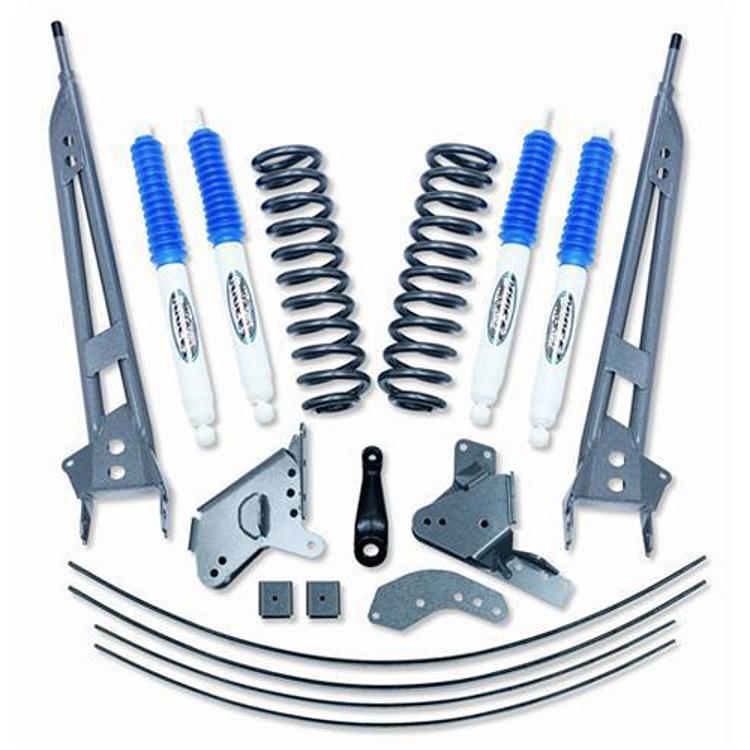

What’s included
- Front coil springs
- Radius arm brackets
- Bump stop extensions
- Pitman arm for steering correction
- Extended length brake lines
- Rear block and U-bolt kit
- ES3000 front and rear shocks
Not included: Check tire clearance against your wheel and tire setup before installing.
