Overview
The Pro Comp K4118B is a 6-inch stage 1 coil spring lift with ES3000 front and rear shocks. It fits 1981–1989 Ford F-150 trucks and gives a lift height range of 5 to 6.99 inches.
The front uses coil springs with radius arm brackets and I beam brackets, and the rear is raised with a block and U-bolt kit. A pitman arm corrects the steering, and extended length SS brake lines are included. The shock boots are not included.
Key features
- 6-inch lift, stage 1 design
- Front coil springs with radius arm brackets
- I beam brackets
- Pitman arm steering correction
- Extended length SS brake lines
- Rear block and U-bolt lift
Front steering and brake hoses
Steering on a raised front end depends on how the pitman arm and linkage are set, so steering feel after the install is worth noting from the first drive. Play in the steering box, worn tie rod ends, or a wandering center position often show up once the height changes. A quick check of the joints and the drag link is a sensible routine step.
Brake hoses stretch differently at full droop, which is why the extension brackets and hose routing matter. Look for hoses that rub on the frame, the springs or the tire at full turn. Replace any hose with cracks or bulges, and keep the brake fluid level in mind when the front calipers are serviced.
Tire rub and steering stops are also worth a look, since a raised truck can reach those limits sooner than the stock setup did.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4118B |
| UPC | 614901125412 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arm brackets and I beam brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Brake lines | Extended length SS |
| Shock boots | Not included |
Vehicle fitment
Designed for 1981–1989 Ford F-150 trucks. Bronco and any other years are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arm brackets and I beam brackets change the front geometry, so set the alignment after installation. Check the extended SS brake lines for routing at the new height before the wheels are fitted.

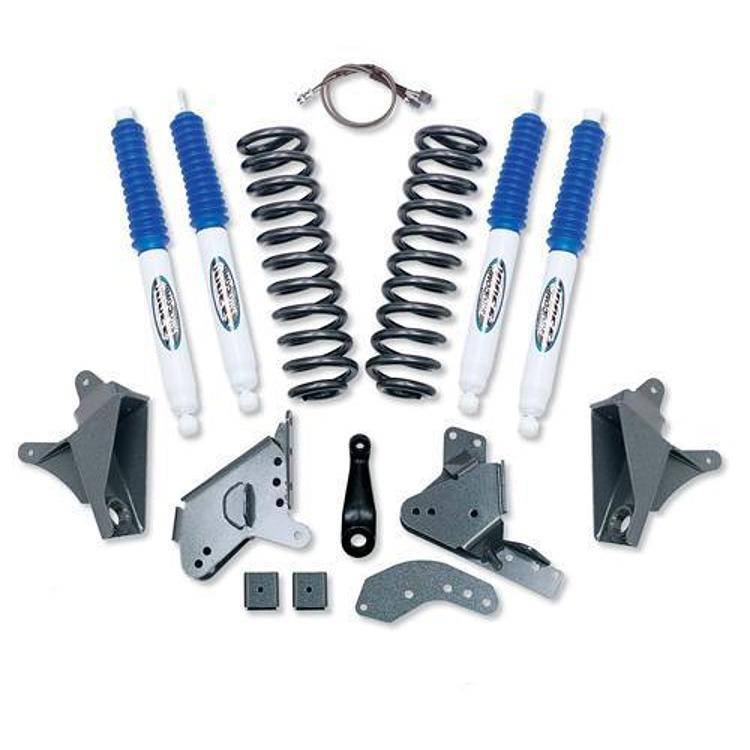

What’s included
The kit includes front coil springs, radius arm brackets, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
