Overview
The Pro Comp K4150BP is a 6-inch Stage 1 suspension lift kit with Pro Runner front shocks. It uses front coil springs, radius arm brackets and a Pitman arm steering correction, with a block and U-bolt rear lift that includes add-a-leafs.
The front shocks are Pro Runner units, and the rest of the lift package matches the ES9000 version of this kit. The coil springs, radius arm brackets and Pitman arm are the same components, so only the front shock package differs.
Key features
- 6-inch lift height from a Stage 1 kit
- Coil springs at the front
- Radius arm brackets
- Pitman arm steering correction
- Bump stop extensions and front sway bar links
- Brake line extension brackets and add-a-leaf rear lift
Front end geometry checks
Any radius arm and coil spring lift changes the caster and camber settings, so the front end should be measured once the kit is in. Pitman arm corrections alter the steering linkage, and a bent or worn drag link can show up as wander or a pull. Take time to look at the whole steering path rather than only the wheels.
Front sway bar links and bump stops work as a pair with the coil springs. As the suspension travels further at a higher ride height, the links carry more load through their range, so they should be checked for bent eyes and worn bushings at each service. Replace any parts that show play.
- Check caster and camber after installation
- Inspect drag link and tie rod ends
- Look for bent sway bar link ends
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4150BP |
| UPC | 70000637851 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Coil springs |
| Steering correction | Pitman arm |
| Rear lift | Block and U-bolt kit with add-a-leafs |
| Front shocks | Pro Runner |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering, since the radius arm and Pitman arm components must match the front end of the truck.
Do not assume coverage from the Direct Fit label alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The Pitman arm and radius arm brackets change the steering and front suspension geometry, so the alignment and driveline angles should be checked after the lift is installed.

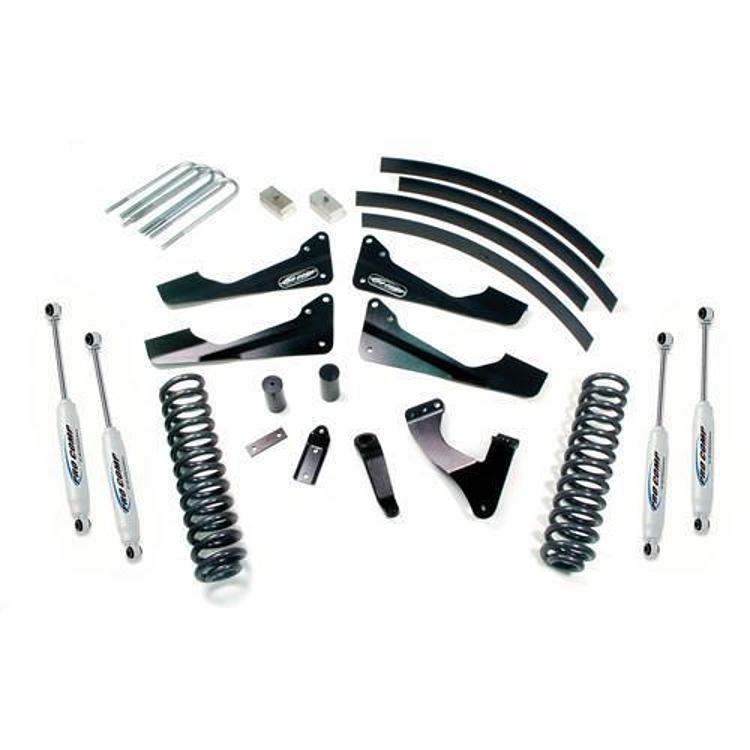

What’s included
The kit includes front coil springs, radius arm brackets, the Pitman arm steering correction, bump stop extensions, front sway bar links, brake line extension brackets, the block and U-bolt rear kit with add-a-leafs, and Pro Runner front shocks.
