Overview

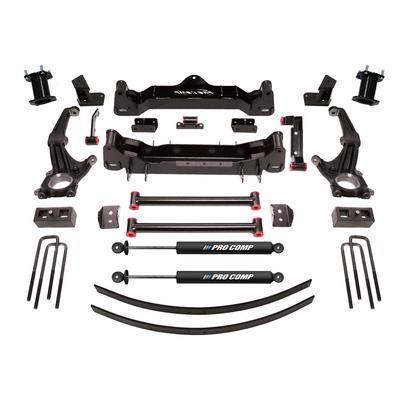

The K5073T is a 6-inch stage 1 lift kit with PRO-X front and rear shocks for the 2005–2011 Toyota Tacoma. It fits the Base, Pre Runner and X-Runner versions, and the lift height range is 6 to 7 inches. Both shocks come with the kit.
The rear is raised with a block and U-bolt setup that includes add-a-leaf hardware. The kit is designed for this generation of Tacoma rather than later trucks.
Key features
- 6-inch stage 1 lift for the 2005–2011 Tacoma

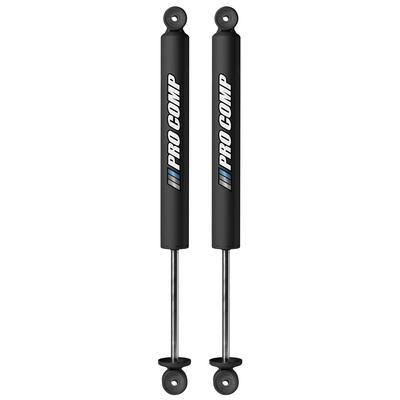

- PRO-X front shocks and PRO-X rear shocks
- Block and U-bolt rear lift with add-a-leaf hardware
- Lift height range of 6 to 7 inches
- Direct fit for the 2005–2011 Toyota Tacoma Base, Pre Runner and X-Runner
Before you install
A lift changes where the axles sit relative to the frame, so the suspension geometry shifts once the truck is raised. On a Tacoma with a block and U-bolt rear, the leaf springs carry the new height, and the driveline angle at the rear pinion usually needs a look. Brake lines and the parking brake cable may need slack checked, since both were routed for the stock height. Ride quality changes too, because the shocks are set for the new geometry rather than the factory position.
When the kit is in, recheck the lug nuts after the first few drives and inspect the U-bolts for settling. Front alignment should be set after the lift is complete, and toe settings can shift. Owners often replace sway bar links and check the steering components at the same time, since the bar and links are the parts most affected by the new height. Keep an eye out for leaking shock fittings or clunks from worn bushings in the first months of use.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5073T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-X |
| Rear shocks | PRO-X, included |
| Rear lift method | Block and U-bolt with add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2005–2011 Toyota Tacoma Base, Pre Runner and X-Runner versions.
Its coverage ends with the 2011 Tacoma, so 2012 and newer Tacoma, 4Runner and FJ Cruiser models fall outside it. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The rear uses add-a-leaf hardware with blocks and U-bolts, so check the rear suspension, the rear axle position and the driveline angles once the kit is in place.
What’s included
PRO-X front and rear shocks, plus the block and U-bolt rear lift components with add-a-leaf hardware.
