Pro Comp 2.5 Inch Stage I Lift Kit with ES3000 Shocks – K1012

Pro Comp Suspension

Shop Chevrolet K10 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch stage I front lift with leaf springs and U-bolts
  • ES3000 front and rear shocks
  • Fits 1977-1986 Chevrolet and GMC C/K trucks and K1500 models
  • Brake line extension brackets; steering correction not needed

Description

Overview

The Pro Comp 2.5 Inch Stage I Lift Kit with ES3000 Shocks, part number K1012, is a 2.5-inch lift for 1977-1986 Chevrolet and GMC C/K trucks and their Suburban, Blazer, Jimmy and K1500 versions. The front uses leaf springs and U-bolts, and the rear uses a block and U-bolt kit. ES3000 shocks are listed at both ends.

Pro Comp lists steering correction as not needed for this kit, which keeps the steering changes to a minimum. The kit also includes brake line extension brackets.

Key features

  • 2.5-inch stage I lift
  • Front leaf springs and U-bolts
  • Steering correction not needed
  • Brake line extension brackets
  • Rear block and U-bolt kit
  • ES3000 front and rear shocks

Front lift and tire clearance

A leaf spring front end raised by a 2.5-inch kit changes ride height at both ends, which affects tire clearance at the fenders and at the steering components. Clearance is the first thing to check when choosing a tire size. Measure the space at full steering lock and at full compression before ordering new wheels or tires.

Because the steering arm and linkage stay stock here, the front alignment still needs attention after the lift. Worn ball joints and tie rod ends should be replaced before the alignment is set, since loose parts can make the truck pull or wander. Keep the bump stops in good shape too, since they limit travel at full compression.

  • Measure tire clearance at full steering lock
  • Inspect ball joints and tie rod ends before alignment
  • Check shock mounts and bushings for wear
  • Recheck clearance after the first few drives

Specifications

Brand Pro Comp Suspension
Part number K1012
UPC 614901122107
Lift height 2.5 inches, stage I
Front suspension Leaf springs and U-bolts
Steering correction Not needed
Rear lift Block and U-bolt kit
Shocks ES3000, front and rear (shock boots not included)
Maximum tire size 33
Fitment Direct fit

Vehicle fitment

The kit fits the 1977-1986 Chevrolet K10 and K10 Suburban, the 1977-1986 Chevrolet K5 Blazer, the 1977-1986 GMC Jimmy, the 1977-1978 GMC K15, the 1975-1978 GMC K15 Suburban, and the 1979-1986 GMC K1500 and K1500 Suburban.

Trucks from 1973 to 1976 and from 1987 on are not on this list, apart from the GMC K15 Suburban years shown above. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A leaf spring front end with a block rear changes ride height at both ends, so have the front alignment checked once the kit is installed.

What’s included

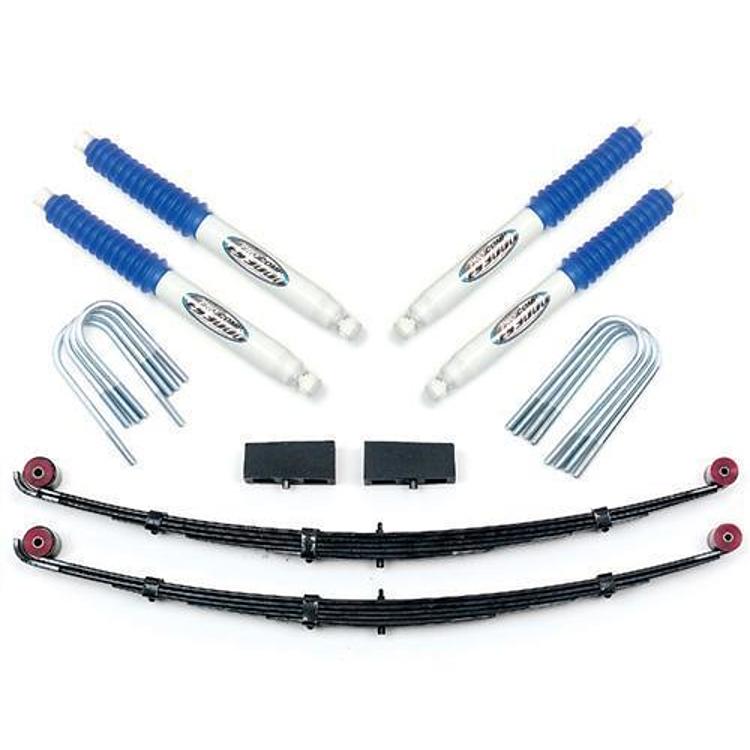

The kit includes front leaf springs and U-bolts, brake line extension brackets, a rear block and U-bolt kit, and ES3000 shocks. Shock boots are not included.

SKU: EXPK1012 Category:

Specification

Shipping weight 137.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet K101977–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K10 Suburban1977–1986Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K5 Blazer1977–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
GMC Jimmy1977–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K151977–1978Base, High Sierra, Indy Hauler, Sierra Classic, Sierra Grande
GMC K15 Suburban1975–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K15001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K1500 Suburban1979–1986Base, High Sierra, Sierra Classic, Sierra Grande

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1012 fit a 1982 Chevrolet K10?

Yes. The kit fits the 1977-1986 Chevrolet K10, and a 1982 model falls within that range. The fit covers the K10 pickup and Suburban versions for those years.

Does the K1012 need a steering correction?

No. The kit does not need a steering correction, so the steering components stay stock. No steering arm is included with this kit, and the front alignment still needs checking.

Are shock boots included with the K1012?

No. The kit ships without shock boots. The ES3000 shocks are the front and rear shocks supplied, so check whether your setup needs boots before ordering.

Does a 2.5-inch leaf spring lift affect tire choice?

It can. Raising the front changes the clearance between the tire and the fender and suspension, especially at full compression. Check tire diameter and width against the wheel wells before ordering, and recheck clearance after the lift is complete.
