Pro Comp 6″ Stage 2 Radius Arm Lift Kit with Front and Rear PRO-X Shocks – K2199T

Pro Comp Suspension

Shop Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

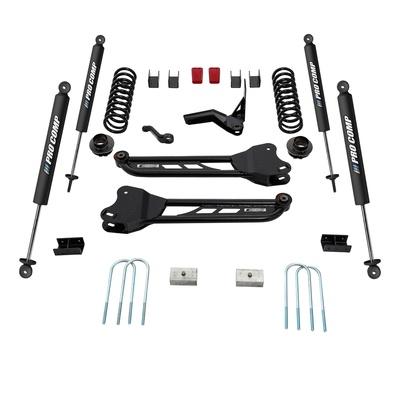

  • Pro Comp 6 inch Stage 2 radius arm lift kit with front and rear PRO-X shocks, part K2199T
  • Cast and CNC-machined knuckles, laser-cut and robotically welded cross members
  • Brake line extensions, longer bump stops and sway bar drop brackets included
  • Fits 2014–2018 Ram 2500 trucks

Description

Overview

The Pro Comp K2199T is a 6 inch Stage 2 radius arm lift kit with front and rear PRO-X shocks, part number K2199T. It fits the 2014–2018 Ram 2500 and is a complete suspension system rather than a set of separate components.

The kit is built with cast and CNC-machined knuckles and laser-cut, CNC-formed, robotically welded cross members. It includes brake line extensions, longer bump stops and sway bar drop brackets, which support steering geometry and suspension performance after the lift.

Pro Comp describes its suspension systems as built for performance and reliability over obstacles, with manufacturing that uses quality control measures at each step. The K2199T is the 6 inch Stage 2 version, and its PRO-X shocks are fitted at both the front and the rear.

Key features

  • 6 inch lift height
  • Stage 2 radius arm design

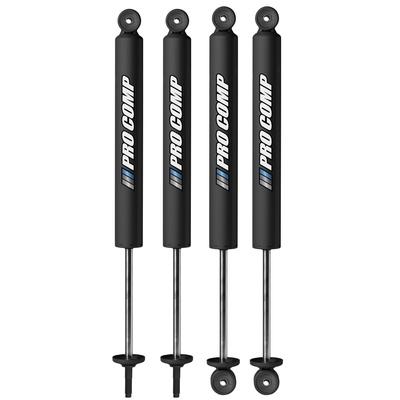

  • Front and rear PRO-X shocks
  • Cast and CNC-machined knuckles
  • Laser-cut, CNC-formed and robotically welded cross members
  • Brake line extensions
  • Longer bump stops
  • Sway bar drop brackets

Before installing a radius arm kit

A radius arm lift kit replaces the factory control arms that locate the axle, so the new arms set axle position and control how the suspension moves under load. Because the front and rear suspension work together on this type of build, a lift changes driveline angles, steering geometry and the way the axle travels through its range. Those changes show up as steering feel, tire wear and tracking on the highway, which is why the install is normally finished with a full alignment and a driveline check.

Shocks and bump stops are often replaced at the same time. Longer shocks control the extra suspension travel, and longer bump stops keep the axle from striking the frame at full compression. Brake lines also need attention, because they must reach the caliper from the new axle position without stretching or rubbing. Before installation, inspect bushings, ball joints and steering components, since worn parts can quickly throw off new geometry.

  • Check brake line routing before the first drive
  • Inspect bushings and ball joints for play
  • Recheck fasteners after the first highway run
  • Schedule an alignment and driveline angle check

Specifications

Brand Pro Comp Suspension
Part number K2199T
Lift height 6 inch
Kit type Stage 2 radius arm lift kit
Shocks Front and rear PRO-X
Knuckles Cast and CNC-machined
Cross members Laser-cut, CNC-formed, robotically welded
Included details Brake line extensions, longer bump stops, sway bar drop brackets

Vehicle fitment

It fits the 2014–2018 Ram 2500.

The kit is sold for the 2014–2018 Ram 2500. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

A 6 inch radius arm kit changes steering and driveline geometry, so have the wheel alignment checked after installation and confirm the driveline angles. Check the brake line extensions for correct routing before driving.

What’s included

Cast and CNC-machined knuckles, cross members, front and rear PRO-X shocks, brake line extensions, longer bump stops and sway bar drop brackets.

SKU: EXPK2199T Categories: ,

Fitment

VehicleYearsTrims
Ram 25002014–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K2199T fit a 2014–2018 Ram 2500?

Yes. The K2199T 6 inch Stage 2 radius arm kit fits the 2014–2018 Ram 2500. Confirm the year and model of your truck against that range before installing the kit.

Does the kit include front and rear shocks?

Yes. The kit includes front and rear PRO-X shocks, along with cast and CNC-machined knuckles and laser-cut cross members. It also includes brake line extensions, longer bump stops and sway bar drop brackets.

Does this kit need an alignment?

Yes. A 6 inch radius arm kit changes steering and driveline geometry, so have wheel alignment checked after installation and confirm the driveline angles.

How often should the lift components be inspected?

Inspect the radius arms, bushings and shock mounts at regular service intervals and after rough trail use. Look for cracked welds, torn rubber, loose fasteners and leaking shock bodies. Early checks help catch wear before it affects steering or tire wear.

Can the kit be used with larger tires?

Larger tires add weight and change gearing, steering effort and clearance, so they should be considered alongside a lift. Confirm the tire size will clear the fenders and brake lines at full suspension travel before buying tires. Alignment should be checked again after any tire change.
