Pro Comp 6 Inch Short Arm Lift Kit with ES9000 Shocks – K2076B

Pro Comp Suspension

Shop Dodge Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch short arm lift with ES9000 front shocks
  • Adjustable front track bar, track bar bracket and transmission drop bracket
  • Drop pitman arm steering correction
  • Fits 2009-2010 Dodge Ram 2500 and 3500

Description

Overview

The Pro Comp 6 Inch Short Arm Lift Kit with ES9000 Shocks, part number K2076B, is a 6-inch coil spring and short arm lift for the 2009-2010 Dodge Ram 2500 and 3500. The front uses coil springs with upper and lower control arms, and a drop pitman arm provides the steering correction. The rear uses lift blocks and U-bolts, and the lift height range is 5 to 6.99 inches.

The kit includes an adjustable front track bar, a front track bar bracket and a transmission drop bracket. ES9000 front shocks are listed, and shocks are included.

Key features

  • 6-inch stage 1 short arm lift
  • Coil springs with upper and lower control arms
  • Drop pitman arm steering correction
  • Adjustable front track bar
  • Front track bar bracket
  • Transmission drop bracket
  • ES9000 front shocks, included

Transmission and driveline checks

A transmission drop bracket changes how the transmission sits in the frame, which matters for the driveline. Driveline angles should be checked after installation because a change in height alters the working angle of the driveshaft.

The drop pitman arm steering correction works alongside the adjustable front track bar, and the pair sets the steering geometry at the new height. Confirm the steering centers properly and that the track bar is adjusted during alignment.

Coil springs and upper and lower control arms are the core of the front end and should be inspected at regular service. Rear blocks and U-bolts should be retorqued after initial driving, and the shocks checked for leaks or wear.

  • Check driveline angles after install
  • Verify transmission mount clearance
  • Adjust track bar during alignment
  • Retorque rear U-bolts after first drives

Specifications

Brand Pro Comp Suspension
Part number K2076B
UPC 70000498091
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Coil spring and short arm
Steering correction Drop pitman arm
Rear lift Blocks and U-bolts
Front shocks ES9000
Shocks included Yes
Fitment Direct fit

Vehicle fitment

The kit fits the 2009-2010 Dodge Ram 2500 (Laramie, SLT, ST, SXT and TRX) and the 2009-2010 Dodge Ram 3500 (Laramie, SLT, ST and SXT). Ram 1500 trucks, the 2011 and later Ram 2500 and 3500, and the 2008 and earlier models are not covered. Match your truck’s year, model and trim to the kit before buying.

Ram 1500 trucks, the 2011 and later Ram 2500 and 3500, and the 2008 and earlier models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The drop pitman arm and the transmission drop bracket are part of the install, and the steering and driveline should be checked after the kit is installed.

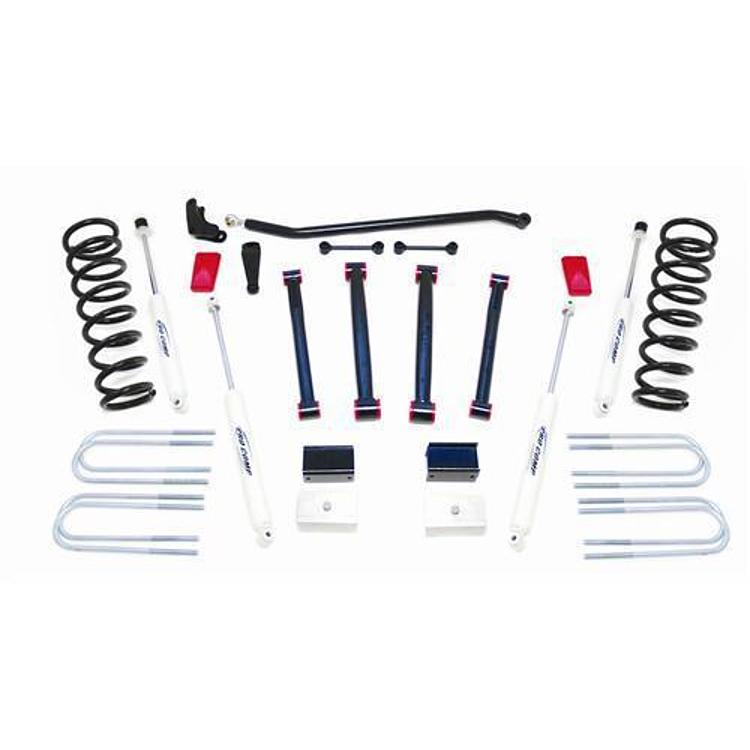

What’s included

The kit includes front coil springs, upper and lower control arm components, an adjustable front track bar, a front track bar bracket, a drop pitman arm, a transmission drop bracket, rear blocks with U-bolts, and ES9000 front shocks.

SKU: EXPK2076B Category:

Specification

Shipping weight 211.45 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 25002009–2010Laramie, SLT, ST, SXT, TRX
Dodge Ram 35002009–2010Laramie, SLT, ST, SXT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K2076B fit a 2010 Dodge Ram 3500?

Yes. The kit fits the 2009-2010 Ram 3500, and 2010 falls within that range. That covers the Ram 3500 in the Laramie, SLT, ST and SXT versions.

Does the K2076B include a transmission drop bracket?

Yes. The kit includes a transmission drop bracket, which is part of the installation along with the adjustable front track bar. Check driveline clearance after the kit is installed.

Does the K2076B fit a 2011 Dodge Ram 2500?

No. The kit fits the 2009-2010 Ram 2500 and 3500 only, so 2011 and later models are not covered. Match the year, model and trim of your truck before ordering.

Is a transmission drop bracket hard to inspect later?

No. The bracket can be checked during a routine underside inspection. Look for cracks, loose bolts and any contact with the driveline or exhaust, and recheck after any transmission service.
