Overview

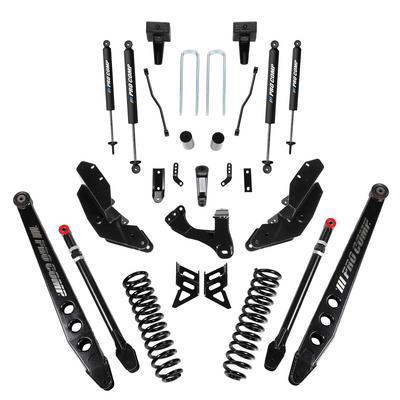

The Pro Comp K4213T is a Stage III 6-inch 4-link suspension kit with PRO-X shocks for Ford Super Duty trucks. It provides up to 6 inches of lift, with a lift height range of 6 to 7 inches and a 37-inch tire size. It fits the 2017–2022 F-250 Super Duty and the 2017–2018 and 2020–2021 F-350 Super Duty.

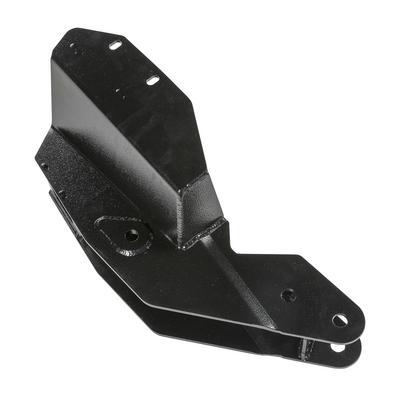

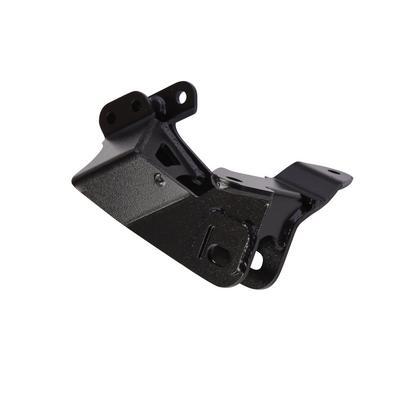

The kit uses extended-length control arms in brackets positioned for a fixed geometry. The brackets keep the roll center in place, increase wheel travel and limit the change in caster and pinion angle. The upper control arms are tubular and adjustable on the vehicle for caster.

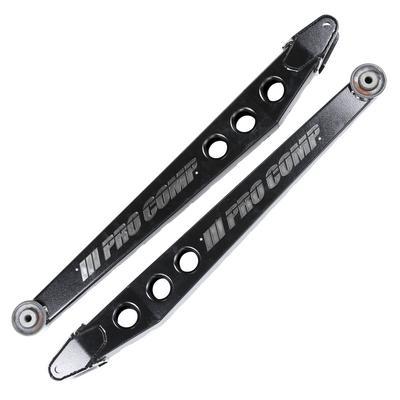

PRO-X front and rear shocks come with the kit. The rear lift uses a block and spacer method with a block and U-bolt component, and the lower arms are custom-stamped steel that clear 37-inch tires at full steer.
Key features
- Extended-length control arms in 4-link geometry

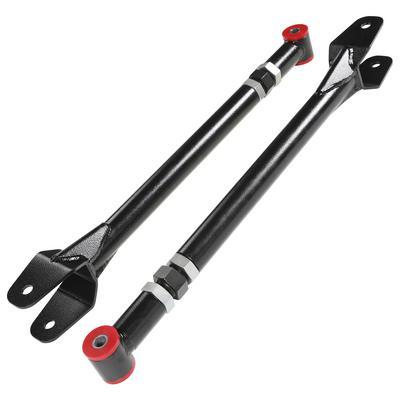

- Tubular upper control arms adjustable for caster
- Transfer case crossmember between the brackets

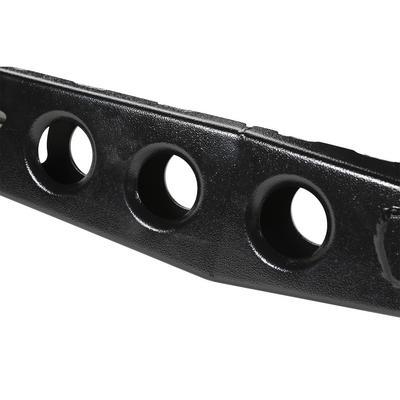

- Custom-stamped steel lower arms

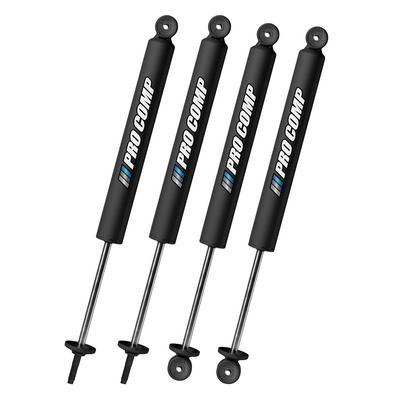

- PRO-X front and rear shocks included
Care for a PRO-X shock setup
PRO-X shocks handle damping at the front and rear axles, so their condition affects steering stability and how the 4-link arms settle under load. Check for oil leaks, damaged dust boots and worn eyelets during routine service, and replace any shock that loses control or makes noise. A shock that is too short or too long for the installed arms can bind or bottom out.
Rear block and spacer parts also affect suspension travel, so inspect the U-bolts and block hardware after the first few drives. Keep the shock mounting hardware torqued to the install values and recheck it after rough trail use. Many owners replace shocks and bushings together, since matching the age of the parts keeps the ride consistent.
- Inspect shock eyelets for play
- Check U-bolts after the first drives
- Replace shocks and bushings in matched sets
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4213T |
| Suspension type | 4-link suspension kit |
| Kit | Stage III, 6 inches |
| Shock series | PRO-X |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Shocks included | Yes |
| Rear lift method | Block and spacer |

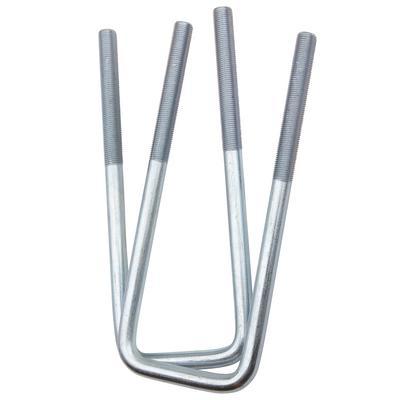

| Rear lift component | Block and U-bolt |
| Lift height range | 6 to 7 in |
| Tire size | 37 in |
Vehicle fitment
It fits the 2017–2022 Ford F-250 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT trims, and the 2017–2018 and 2020–2021 Ford F-350 Super Duty in the same trims.
The 2019 F-350 Super Duty and models from 2023 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6-inch 4-link lift needs a professional alignment and a driveline angle check. Set the caster on the upper control arms during the alignment, and confirm the 37-inch tire clearance at full steer.
What’s included
The kit includes PRO-X front and rear shocks.
Not included: tires and wheels.
