Pro Comp 4 Inch Pro Runner Long Travel Lift Kit – K5151B

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch Pro Runner long travel kit for the Toyota Tundra
  • 14 inches of total travel with a 5-inch track width increase
  • Forged tie rod ends, lift shackle and an add-a-leaf mini pack
  • 2-inch rear wheel spacers; shocks are sold separately

Description

Overview

The Pro Comp K5151B is a Pro Runner long travel suspension lift for the Toyota Tundra. The system provides 14 inches of total travel, a 5-inch track width increase and ride height increased by 3 to 4 inches, with ductile cast iron upper and lower extended A-arms at the core of the design.

Oversized OE-style pivot bushings are designed to keep noise and vibration close to factory levels. Extended length tie rod ends and CV axles are fitted for the wider track, and the kit is sold without shocks.

Key features

  • 14-inch total travel

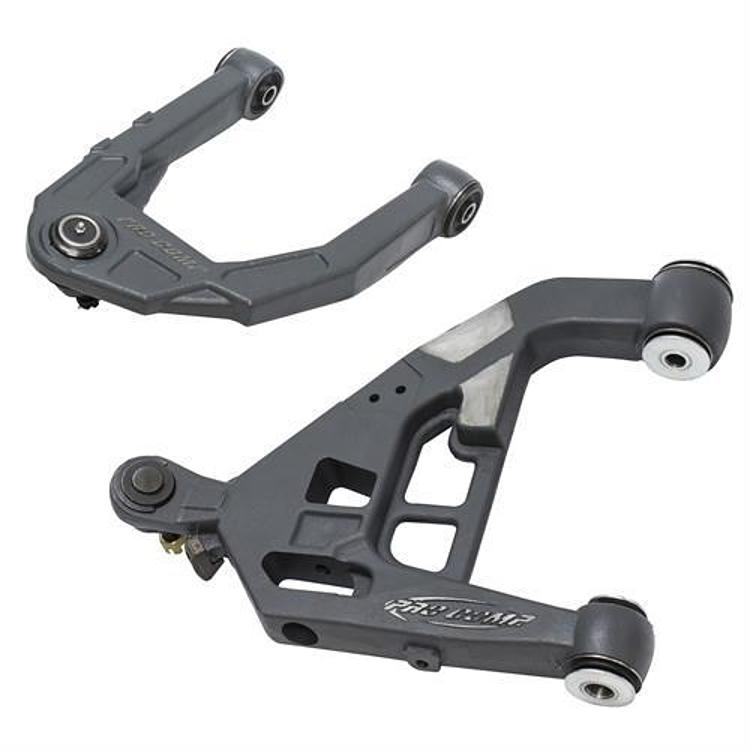

  • Ductile cast iron extended A-arms, upper and lower
  • Oversized OE-style pivot bushings

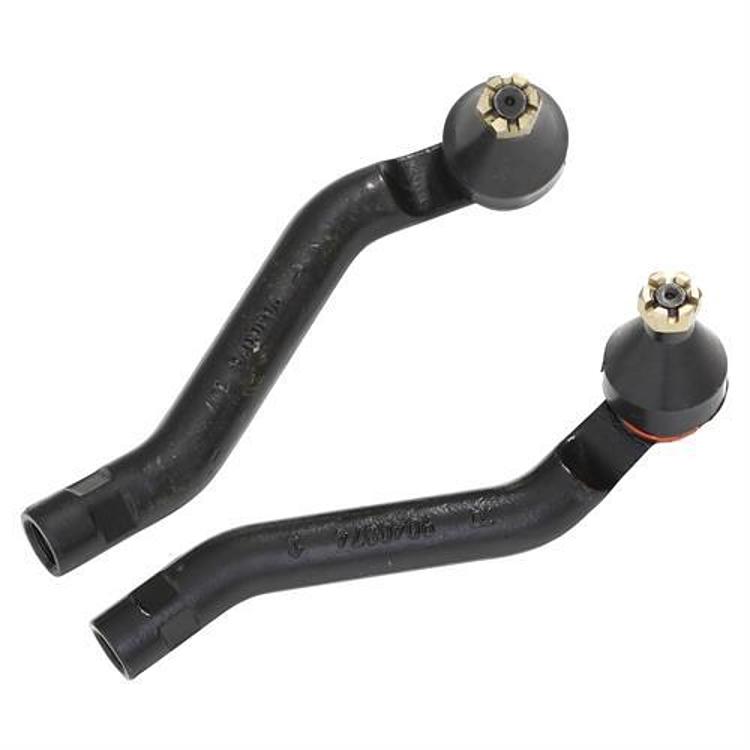

  • Forged tie rod ends
  • 5-inch track width increase

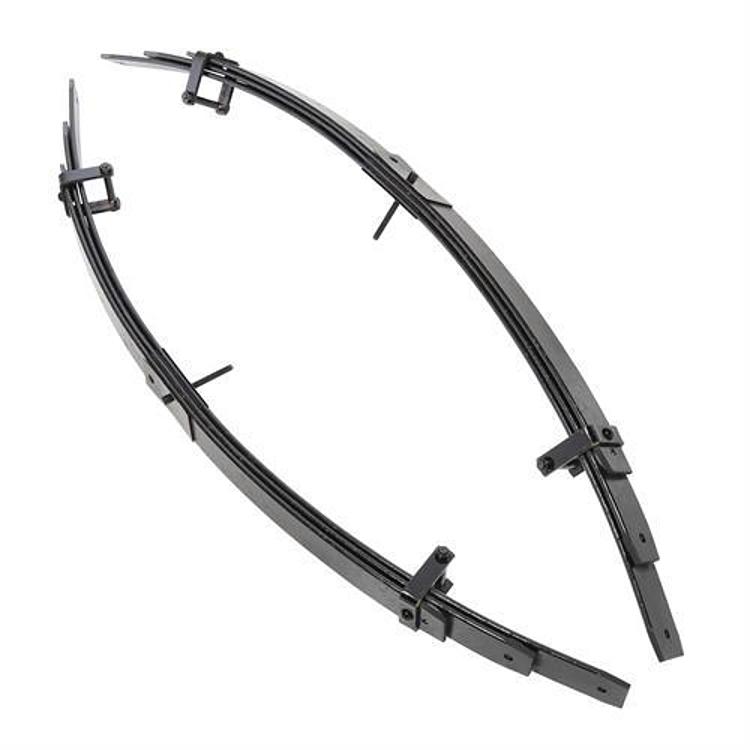

  • Lift shackle and add-a-leaf mini pack

Planning the install

A long travel system is a bigger project than a basic lift. Before the arms go on, decide how the truck will be used: rock crawling, desert running or mostly highway driving each put different demands on shocks, bushings and steering. Plan the budget and time for the shock package, alignment and fender work together.

Track width changes affect steering and tire wear. A wider stance can change scrub radius and tire loading, so check for rubbing and uneven wear once the truck is back on the road. Re-torque lug nuts after the first drive, and keep the spare wheel and jack ready on longer trips.

Pivot bushings and tie rod ends take the most load on a setup like this. Grease fittings where fitted, check boots and seals, and replace any joint that feels loose before it becomes a steering problem.

  • Shocks sized for the new travel
  • Alignment done after the install
  • Fender clearance checked at full articulation

Specifications

Brand Pro Comp Suspension
Part number K5151B
UPC 700007365511
Lift height 4 inch (ride height increased 3 to 4 inches)
Total travel 14 inch
Track width increase 5 inch

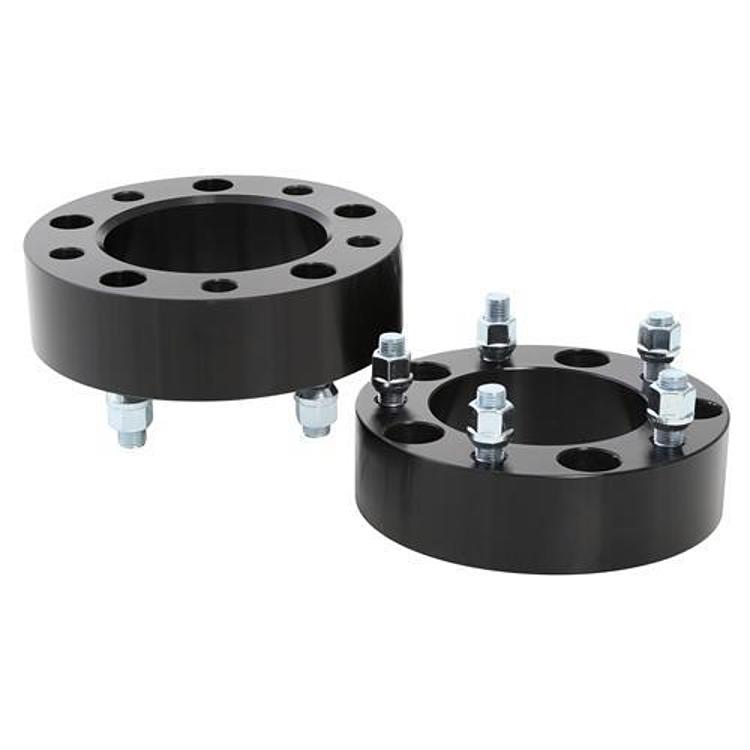

Rear wheel spacers 2 inch
Shocks Sold separately

Vehicle fitment

It is offered for the Toyota Tundra. Confirm fit for your vehicle’s model year and trim before ordering.

Confirm the model year and trim of your Tundra before ordering, since the fender modification and tire clearance depend on the truck. The fitment is not confirmed for a specific year here.

Installation notes

Fender modification, both internal and external, is required to reach 14 inches of travel with 35-inch tires. Plan for that work and for an alignment check after the track width change.

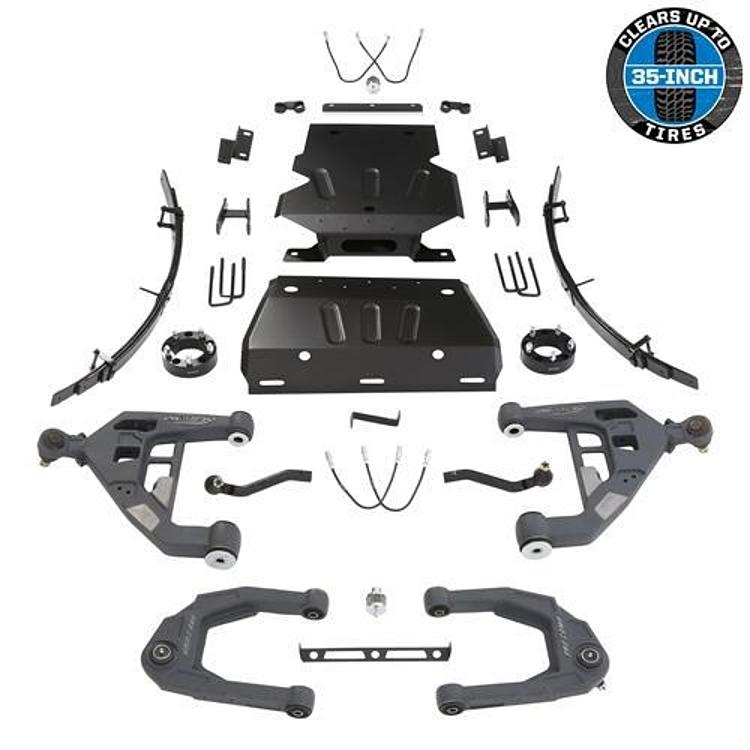

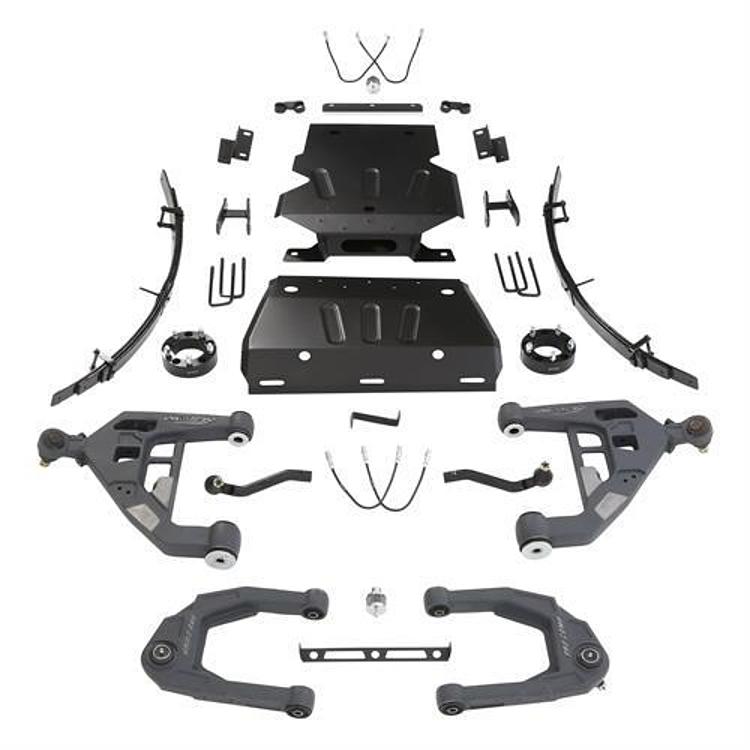

What’s included

The kit includes the extended A-arms, forged tie rod ends, extended length tie rod ends, CV axle components, the lift shackle, the add-a-leaf mini pack, and 2-inch rear wheel spacers. Shocks are sold separately.

SKU: EXPK5151B Category:

Specification

Shipping weight 310.25 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Questions & Answers

Does the K5151B include shocks?

No. Shocks are sold separately, so select the shock package before you install the long travel kit. Choose shocks that suit the new ride height and travel so the setup works as a complete system.

What tire size does the K5151B need fender work for?

35-inch tires need fender work. Internal and external modification is required to reach 14 inches of travel with those tires, so plan that work before the install.

How much track width does it add?

The kit adds a 5-inch track width increase, and the extended length tie rod ends and CV axles are set up for that wider track.

How do I know when the tie rod ends need replacing?

Replace them when the joint has play, the boot is torn, or the steering feels loose or wanders. Check for movement by hand with the wheels off the ground. Worn ends cause uneven tire wear and affect alignment, so inspect them at each service.

What should I inspect on the tires after a wider track install?

Look for rubbing on the fender edges, uneven wear across the tread and cupping on the shoulders. Rotate the tires on schedule and recheck toe after the first few drives.
