Overview
The Pro Comp K4039BP is a 6-inch stage 2 coil spring lift with radius arms and a Pro Runner front shock. Fitment is for 2005–2007 Ford F-250 and F-350 Super Duty trucks, with a lift height range of 5 to 6.99 inches.
This kit is the Pro Runner shock version of the K4039B. The front uses coil springs and radius arms, along with sway bar links, bump stop extensions and brake line extension brackets. A pitman arm corrects the steering, and the rear uses a block and U-bolt kit with add-a-leafs.
Key features
- 6-inch lift, stage 2
- Pro Runner front shock
- Front coil springs with radius arms
- Front sway bar links and bump stop extensions
- Pitman arm steering correction
- Brake line extension brackets
On the trail
On the trail, a lifted Super Duty puts more load on the front axle joints and the steering linkage, so how the truck feels over ruts and washouts depends on how well those parts are kept in order. A Pro Runner front shock adds damping to the coil spring setup, which helps settle the front wheel after a sharp hit. Pair the upgrade with a steering stabilizer check if you run larger tires.
Keep the pitman arm and drag link inspected after each run, since rough terrain loads them quickly. Check the brake lines for stretch when the front is raised, and watch for tire rubbing during full lock. Mud, sand and road salt can work into the rear U-bolt and block joints, so a quick cleaning and inspection after a trip extends their life and makes wear easy to spot.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4039BP |
| UPC | 70000637840 |
| Lift | 6 inches, stage 2 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Block, U-bolts and add-a-leaf |
| Steering correction | Pitman arm |
| Front shocks | Pro Runner |
Vehicle fitment
Fitment is 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks. Other Ford model years are outside this fit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms change the front axle location and caster, so set the alignment once the kit is fitted. Check the pitman arm centering and the rear driveline angles after the block and U-bolts are in.

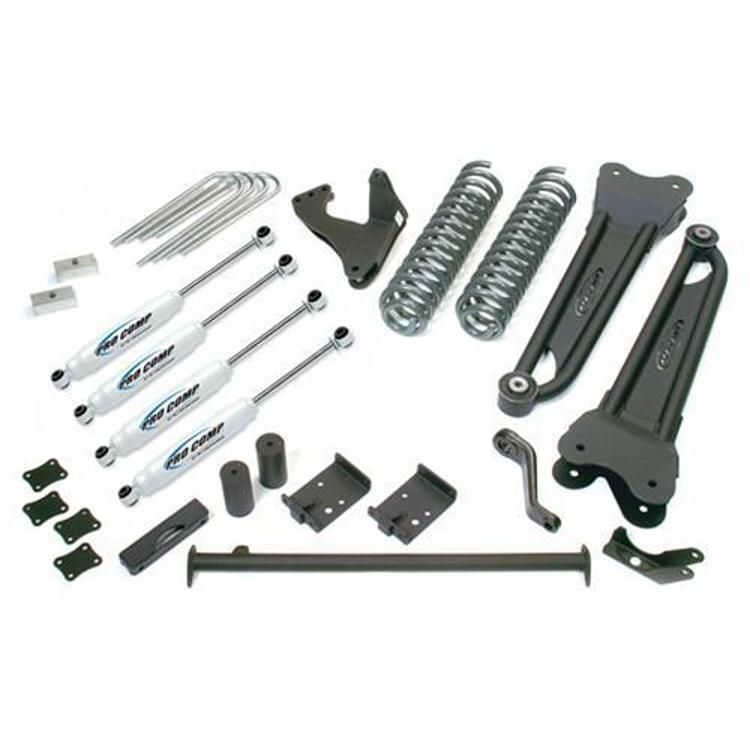

What’s included
The kit includes front coil springs, radius arms, front sway bar links, bump stop extensions, a pitman arm, brake line extension brackets, a rear block and U-bolt kit with add-a-leafs and a Pro Runner front shock.
