Pro Comp 6 Inch Lift Kit with Pro Runner Shocks – K1144BP

Pro Comp Suspension

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch knuckle lift with strut spacers, spindles and front and rear crossmembers
  • Rear lift blocks, U-bolts and add-a-leafs
  • Brake line extension brackets and sway bar drop brackets
  • Fits 2007-2013 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks

Description

Overview

The Pro Comp 6 Inch Lift Kit with Pro Runner Shocks, part number K1144BP, is a 6-inch knuckle lift for the 2007-2013 Chevrolet Silverado 1500 and GMC Sierra 1500. The rear uses lift blocks with U-bolts and add-a-leafs, and the lift height range is 5 to 6.99 inches.

The front lift uses strut spacers and spindles, with front and rear crossmembers and compression struts. Sway bar drop brackets and bump stops are included, along with brake line extension brackets. Reused OEM front shocks are part of this setup, so confirm the shock arrangement before installing.

Key features

  • 6-inch stage 1 knuckle lift
  • Front strut spacers and spindles
  • Front and rear crossmembers
  • Compression struts
  • Sway bar drop brackets and bump stops
  • Rear block, U-bolt and add-a-leaf kit
  • Brake line extension brackets

How it works

A knuckle-type lift works at the steering knuckle and spindle rather than the upper control arm or torsion bar, so the wheel and hub geometry change as the truck rises. Strut spacers push the struts up, which means the damping and spring relationship at the front is different from stock. The rear block and add-a-leaf parts raise the axle to match, keeping the truck level and stopping the rear from sagging under load.

Brake line extension brackets exist because the lines must reach a higher hub position. Look at the hoses and brackets after the first few drives for stretch or rubbing. Sway bar drop brackets change the link angle, so bushings should be checked for wear. A knuckle lift is often paired with an alignment and a driveline angle check, and worn ball joints or tie rod ends should be repaired before the lift is installed.

Specifications

Brand Pro Comp Suspension
Part number K1144BP
UPC 70000637809
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Knuckle
Rear lift Lift blocks, U-bolts and add-a-leafs
Front shocks Reuse OEM
Shocks included Yes
Fitment Direct fit

Vehicle fitment

It fits the 2007-2013 Chevrolet Silverado 1500 in the LS, LT, LTZ and WT versions and the 2007-2013 GMC Sierra 1500 in the SL, SLE, SLT and WT versions.

The 2014 and later 1500 models and the 2500 and 3500 series are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Strut spacer and knuckle lifts change front geometry and driveline angles, so have the alignment checked once the kit is in.

What’s included

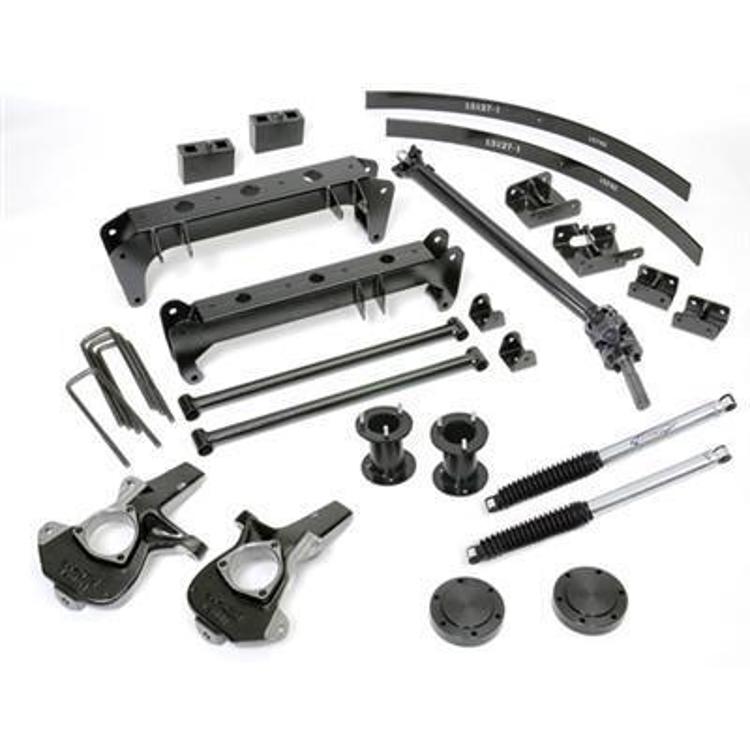

The kit includes strut spacers, spindles, front and rear crossmembers, compression struts, sway bar drop brackets, bump stops, brake line extension brackets, and a rear block, U-bolt and add-a-leaf kit. Confirm the front shock arrangement before installation.

SKU: EXPK1144BP Category:

Specification

Shipping weight 277.35 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2013LS, LT, LTZ, WT
GMC Sierra 15002007–2013SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1144BP fit a 2009 Chevrolet Silverado 1500?

Yes. The 2007-2013 Silverado 1500 range covers a 2009 model. The LS, LT, LTZ and WT versions are the trims covered.

Does the K1144BP fit a 2014 GMC Sierra 1500?

No. The Sierra 1500 range runs from 2007 to 2013 in the SL, SLE, SLT and WT versions. A 2014 model falls outside that range and is not covered.

What front shocks does the K1144BP use?

The front shocks on this setup are reused OEM units. Confirm which front shock you are running before installing, since the kit name includes Pro Runner.

Should the sway bar links be inspected after a knuckle lift?

Yes. The lift changes the sway bar drop geometry, so inspect the links and bushings for cracks and play after installation. Replace any part that shows wear to keep the front end stable.

How often should the bump stops be checked?

Check them at regular service intervals and after rough off-road use. Cracked or compressed bump stops reduce cushioning at full travel and should be replaced.
