Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K2095B

Pro Comp Suspension

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 2 lift kit with front and rear ES9000 shocks
  • Fits 2015–2018 Ram 2500 pickups
  • Lift height range 3 to 4.99 inches
  • Radius arms at the front, coil spring spacers at the rear

Description

Overview

The Pro Comp K2095B is a 4-inch stage 2 suspension lift for the 2015–2018 Ram 2500. It fits Big Horn, Laramie, Power Wagon, SLT and Tradesman trucks in that range.

At the front, the kit pairs coil springs with radius arms. At the rear, coil spring spacers raise the axle, and front and rear ES9000 shocks are supplied. A drop track bar bracket is included for the raised front end.

Key features

  • 4-inch lift, stage 2 design
  • Front and rear ES9000 shocks
  • Front coil springs with radius arms
  • Rear coil spring spacers
  • Drop track bar bracket included

Radius arms and track bar geometry

A stage 2 setup usually asks more of the track bar and sway bar than a basic lift, because the axle moves further from its stock location. Keeping the track bar bracket aligned helps prevent the axle from shifting sideways under load. Bushings and mounts on the bar should be checked whenever the front is serviced.

When choosing a stage 2 lift, consider the wheel offset and tire size you plan to run, since they interact with the new ride height. Heavier tires can change rubbing clearance at full steering lock. A test turn after installation shows whether front and rear clearances are adequate.

  • Check track bar bushings after the first drives
  • Verify steering lock clearance with tires mounted
  • Recheck sway bar link bushings at each service

Specifications

Brand Pro Comp Suspension
Part number K2095B
UPC 70000689270
Lift 4 inches, stage 2
Lift height range 3 to 4.99 inches
Suspension type Radius arm or radius arm brackets
Front shocks ES9000
Rear shocks ES9000
Shocks included Yes
Rear lift method Spacers

Vehicle fitment

The K2095B fits 2015–2018 Ram 2500 pickups. Its coverage begins one model year later than the K2093B and K2094B, so 2014 Ram 2500 trucks should use one of those part numbers.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Expect to realign the front end after installing a 4-inch radius arm kit, and check the driveline angles at the rear. Pro Comp includes the drop track bar bracket in the kit for this purpose.

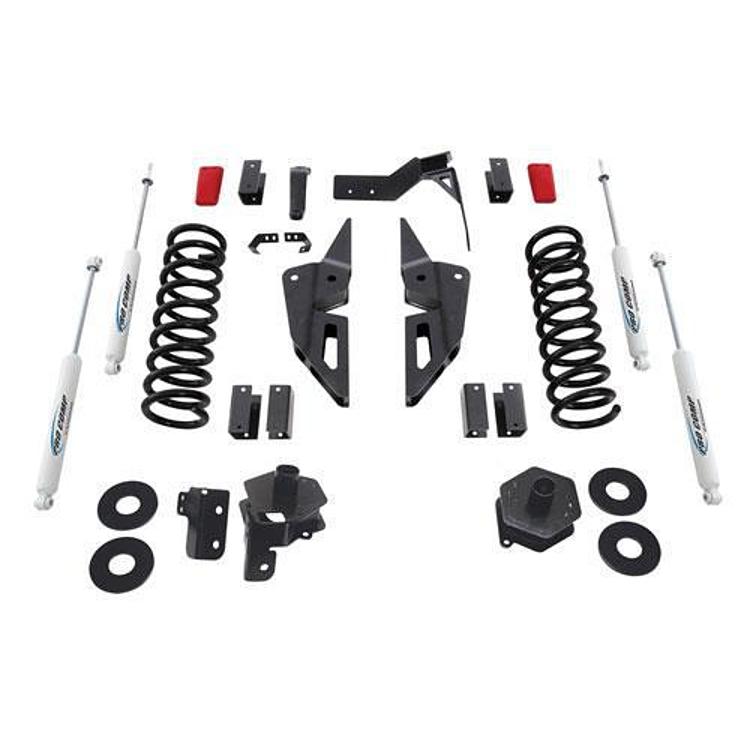

What’s included

Front and rear ES9000 shocks, front coil springs with radius arm components, rear coil spring spacers and a drop track bar bracket are included with the K2095B.

SKU: EXPK2095B Category:

Specification

Shipping weight 276.30 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ram 25002015–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2095B fit a 2014 Ram 2500?

No. It fits 2015–2018 Ram 2500 trucks, so 2014 models need a different part number. Check the year on your truck before ordering.

What is the difference between the stage 1 and stage 2 kits?

This is the 4-inch stage 2 version. Compare its included parts with the stage 1 kit you are considering, since the stage number marks a different parts package.

Does it include shocks?

Yes. ES9000 shocks are supplied at both the front and the rear, along with the coil springs, radius arms and rear spacers that make up the 4-inch stage 2 lift. The shocks are listed on the spec sheet as included with the kit.

Can I install a lift this size myself?

Installing a radius arm lift involves replacing suspension parts, checking brake lines and completing an alignment. Work on level ground with proper jack stands and a sturdy floor jack. A shop can handle the alignment if you lack the equipment.
