Overview
The Pro Comp K5069BPX is a 6-inch Stage 2 lift kit with front MX2.75 coilovers and Pro Runner shocks. The front uses front and rear crossmembers, compression struts and steering knuckles, and the rear is lifted with a block and U-bolt kit with add-a-leafs.
The front uses MX2.75 coilovers, with brake line extension brackets for the steering correction. Front sway bar spacers and bump stop extensions are part of the front package, and the rear uses a lift block and U-bolt kit with add-a-leafs.
Key features
- 6-inch lift height, Stage 2
- Front MX2.75 coilovers

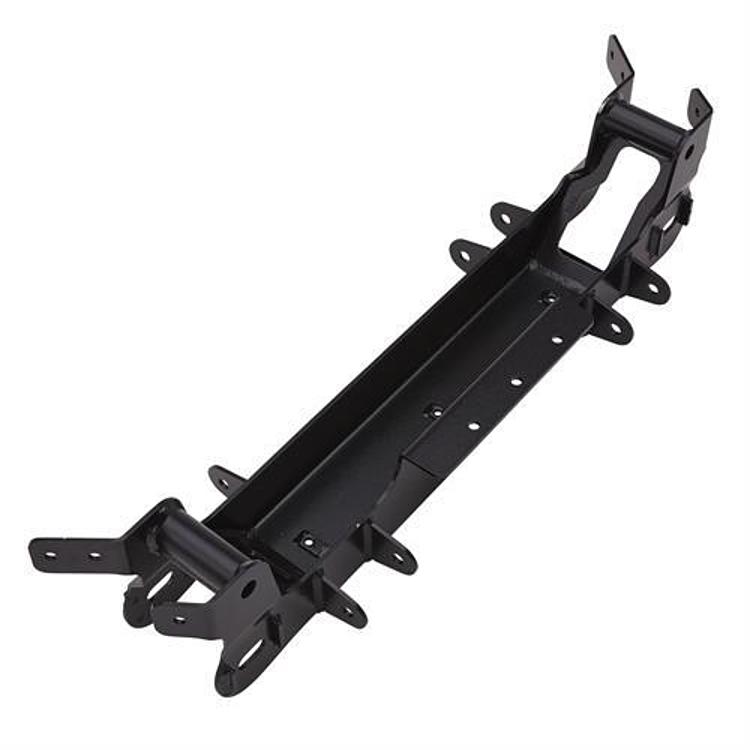

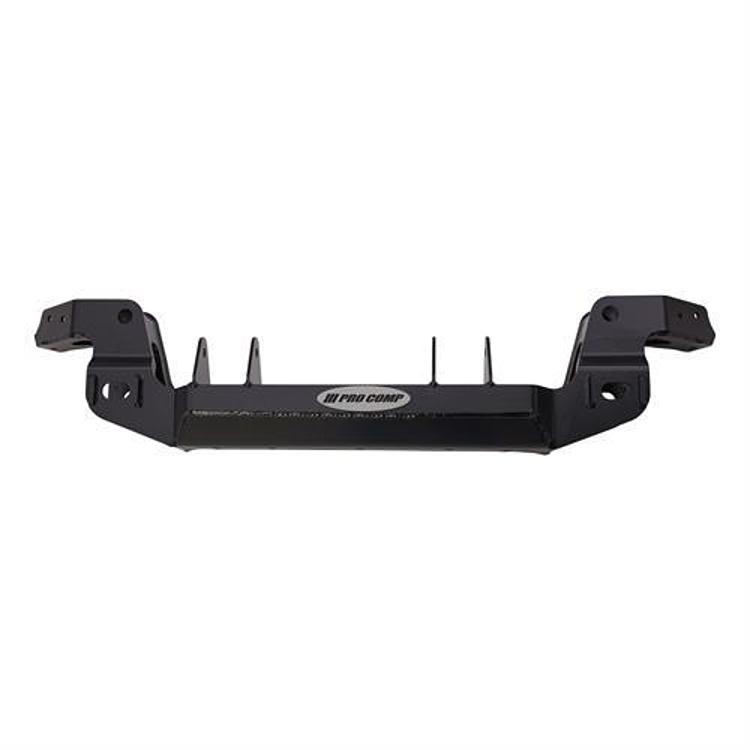

- Front and rear crossmembers

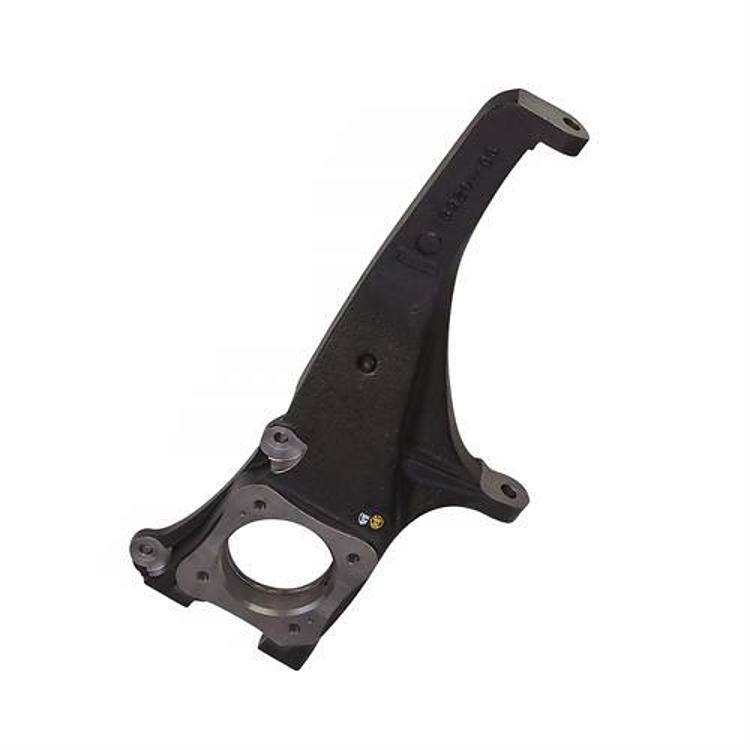

- Compression struts and steering knuckles
- Front sway bar spacers and bump stop extensions
- Brake line extension brackets and rear add-a-leaf kit
Front geometry and tire wear
A front lift that combines coilovers with new crossmembers and knuckles changes camber, caster and toe. Tire wear is often the first sign that the setup needs attention, usually showing up as feathering on the inside edges or uneven wear across the tread. Keeping tires rotated and checking pressures regularly makes those changes easier to spot.
After any front suspension work, tie the geometry check to the coilover setup. Re-check the alignment after the first few drives, since the components settle into place. Bump stops and sway bar spacers should also be examined, because they affect how the front reacts to hard braking and sharp turns.
- Rotate tires on a regular schedule
- Watch for feathering on inside tread edges
- Re-check alignment after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5069BPX |
| UPC | 70000637870 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 2 |
| Suspension type | Knuckle |
| Front control | Front and rear crossmembers, compression struts and steering knuckles |
| Rear lift | Lift blocks, U-bolts and add-a-leafs |
| Front shocks | MX2.75 |
Vehicle fitment
Vehicle coverage is not confirmed for this kit. Confirm your fit by year, model and trim before ordering.
Do not assume coverage from the coilover or Pro Runner names alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Coilovers and the crossmember and knuckle geometry change the front suspension, so the alignment should be set after installation and the brake lines checked for clearance.

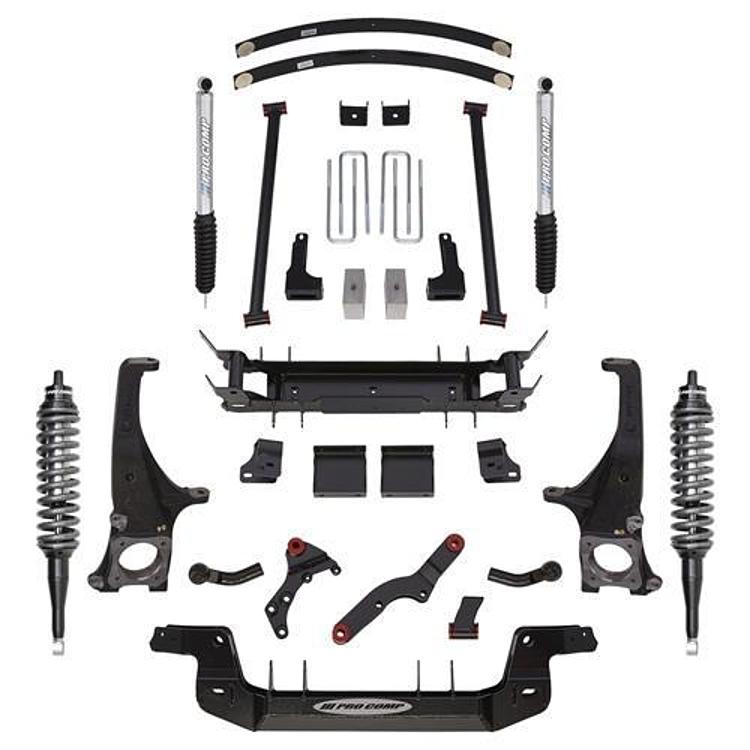

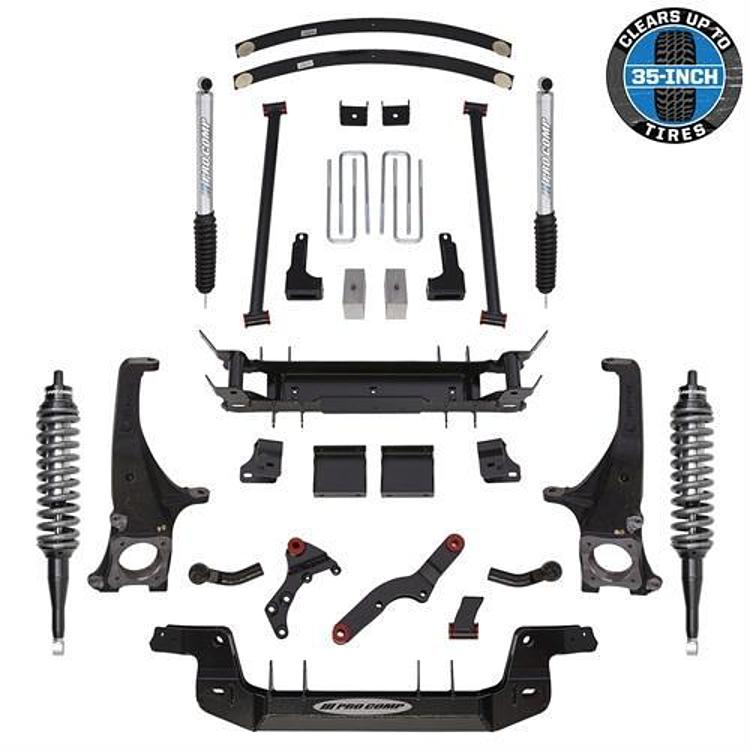

What’s included
The kit includes front and rear crossmembers, compression struts, steering knuckles, the MX2.75 front coilovers, front sway bar spacers, bump stop extensions, brake line extension brackets, and the rear block, U-bolt and add-a-leaf kit.
