Overview

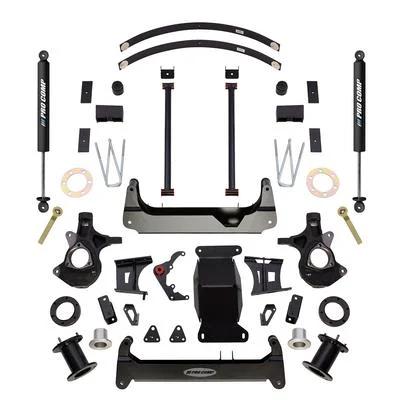

The Pro Comp 4-inch Lift Kit with PRO-X Shocks, part number EXPK1158T (kit K1158T), is a stage 1 suspension lift for 2014 to 2016 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It fits the Silverado Custom, High Country, LS, LT, LTZ, SSV and WT versions and the Sierra Base, Denali, SLE and SLT versions.
The kit lifts the truck 4 inches at stage 1, with a listed lift height range of 4 to 5.5 inches. Pro Comp lists 33 inches as the tire size. PRO-X shocks are included, and the rear uses a block or spacer with a block and U-bolt setup and add-a-leafs.
Key features
- 4-inch stage 1 suspension lift

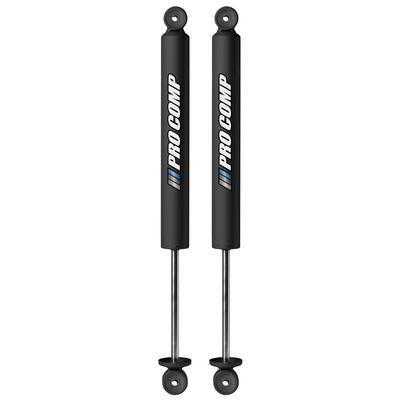

- PRO-X shocks included
- Built for 33-inch tires
- Rear block or spacer with U-bolts and add-a-leafs
- Lift height range of 4 to 5.5 inches
Rear ride height and alignment
Blocks and spacers at the rear raise the axle, and add-a-leafs stiffen the rear spring pack so it can carry load at the new height. Because the rear geometry moves, the pinion angle and rear ride height both change, which affects driveline vibration and tire wear. After installation, measure both sides of the rear and compare them with the front before going on the road.
Front and rear alignment should be checked once the work is finished. Caster and camber can drift once the truck sits higher, and small errors show up as uneven tire wear. Owners who change tire size often review brake lines as well, since the hoses may be stretched at the new height.
- Check the U-bolts for correct torque after the first drive
- Inspect add-a-leaf clamps for shifting or cracks
- Watch for uneven wear on the rear tires
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1158T |
| Kit code | K1158T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Tire size | 33 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |
| Shock type | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits 2014 to 2016 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks, including the Silverado Custom, High Country, LS, LT, LTZ, SSV and WT versions and the Sierra Base, Denali, SLE and SLT versions.
The list does not include 2013 and earlier trucks or 2017 and newer Silverado and Sierra 1500 models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear block or spacer setup with add-a-leafs changes the rear ride height, so the rear should be measured and the alignment checked after installation.
What’s included
The 4-inch stage 1 lift kit with PRO-X shocks.
